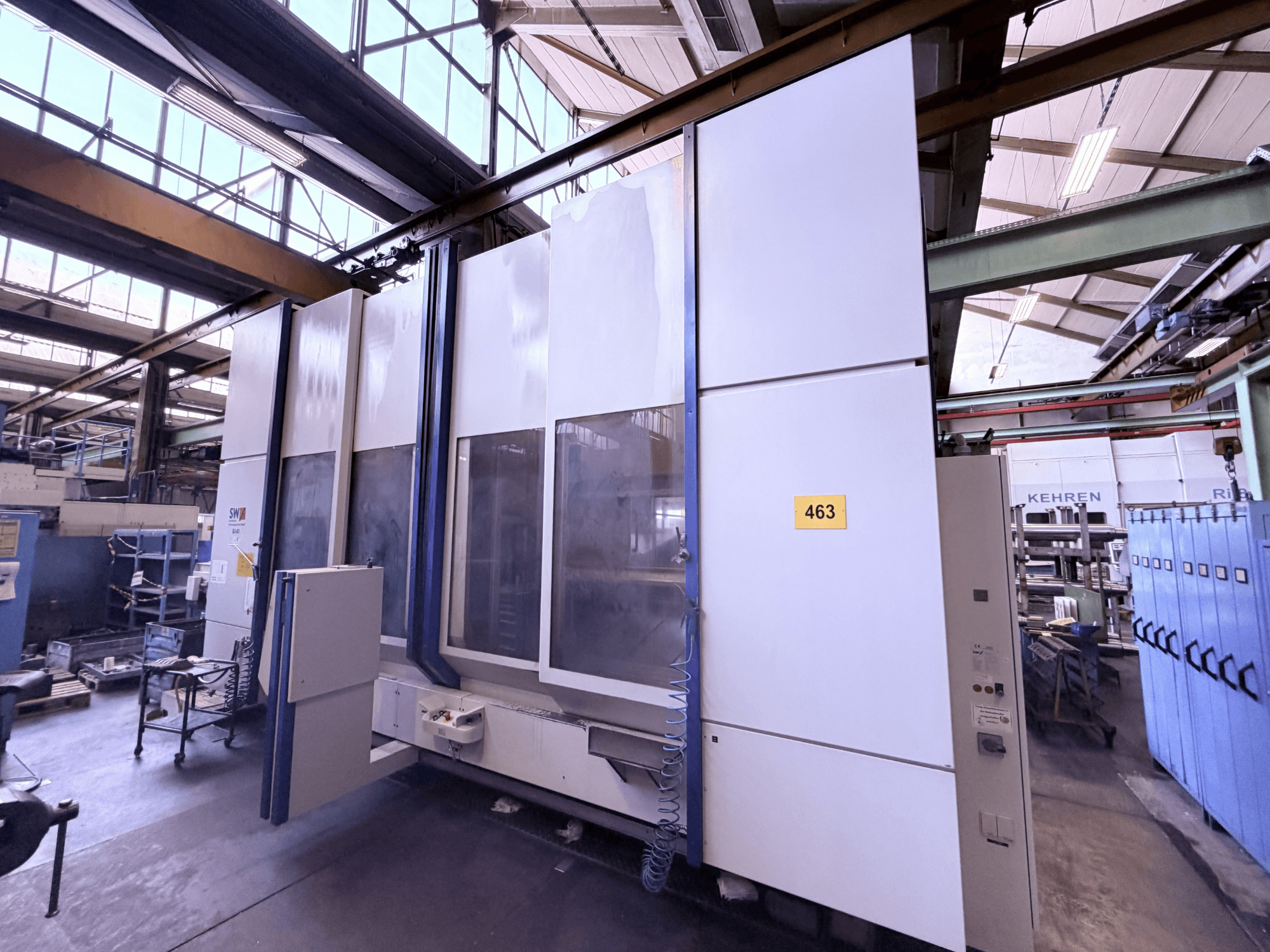

SW - BA 40DE-MIL-SWX-2001-00001

- X-Axis Travel: 2 x 1300 mm (3350 mm in long-bed operation)

- Y-Axis Travel: 630 mm

- Z-Axis Travel: 630 mm

- Clamping Surface (Pendulum Operation): 2 x 1275 x 630 mm

- Rapid Traverse X/Y/Z: 40 m/min

- Feed Rate: 1 - 40,000 mm/min

- Spindle Diameter: 100 mm

- Spindle Speed: 20 - 7,500 rpm

- Spindle Power: 36 kW (at 25% ED)

- Spindle Torque: 950 Nm (at 25% ED)

- Tool Taper / Holder: SK 50 DIN 69871, Form B

- Tool Magazine Slots: 60

- Max Tool Diameter (Free Neighboring Slots): 110 mm (250 mm)

- Max Tool Weight: 8 kg (24 kg)

- Measuring System: Linear

- NC Rotary Table: Peiseler ATU 280 with counter-bearing

- Coolant Pressure (Internal): 40 bar

- Coolant Cleaning: Gap filter

- Work Area Flushing: Yes

- Flush Guns: 2

- Tool Breakage Monitoring: Leutze

- Enclosure: Full enclosure

- Extraction System: GEA-Delbag, 2 x KNAW 1-1-AF

- Floppy Disk Drive: Yes

- Required Footprint (L x W x H): 7700 x 3700 x 4000 mm

- Foundation Required: No

- Nominal Service Voltage: 3/PE AC 400V / 50Hz

- Nominal Working Current: 87 A

- Total Connected Load: 50 kVA (60 kVA rated capacity)

- Supply Line Fusing: 100 A

- Working Hours: 63,368 h

- Optional Equipment: Extended machine hydraulics for workpiece clamping, valve system for double-acting clamping cylinders, 2 clamping circuits in left work area, 2 clamping circuits in right work area, clamping pressure 250 bar / Q=9 l/min, adaptation for angle drill heads (without 4-point support), automatic loading doors, approx. 60 SK50 chucks, 1x double angle head, reversible clamping device (A-axis and counter-holder), clamping bridge
