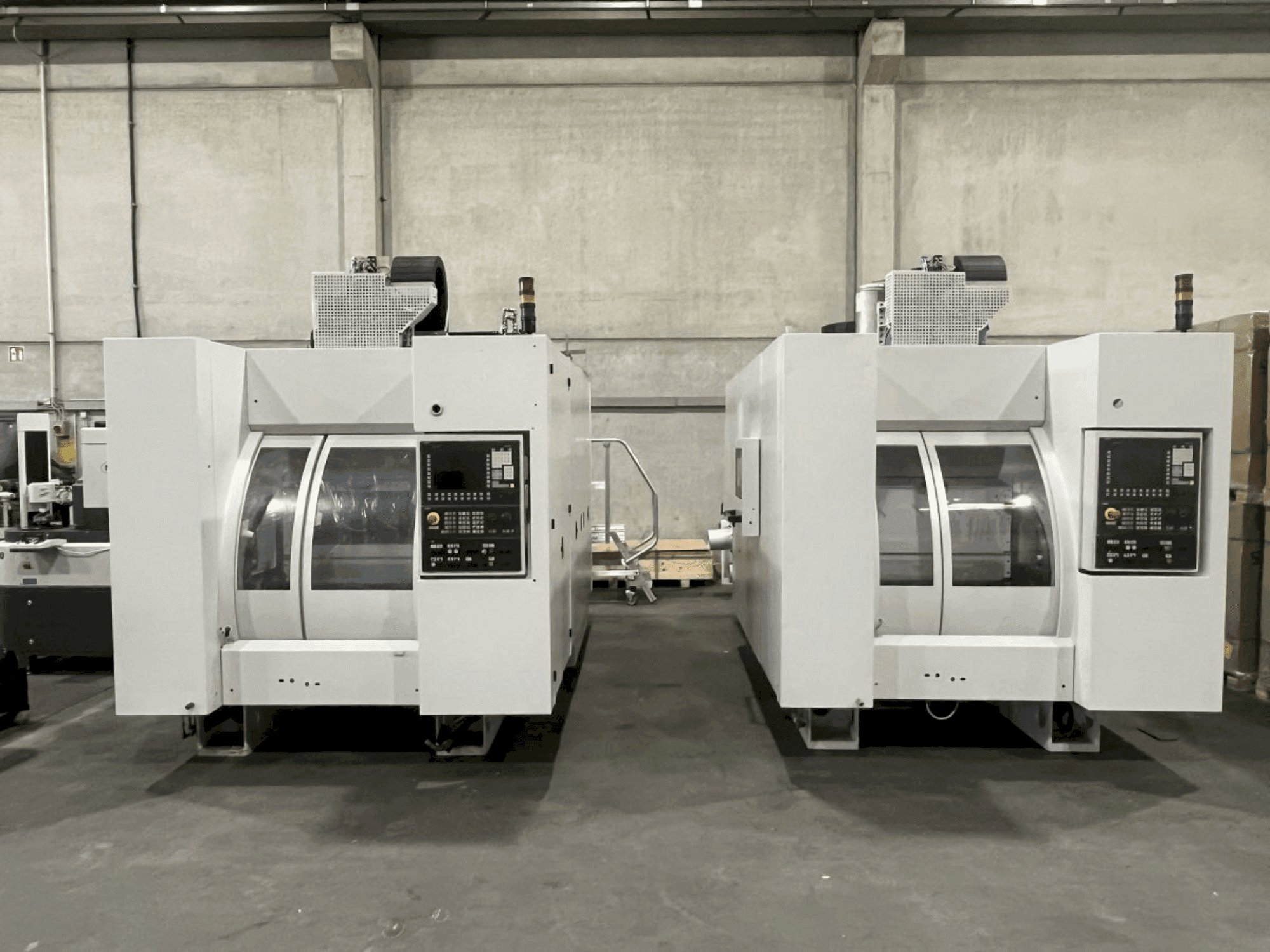

This 4-axis SW BAS 03-22 vertical machining center was manufactured in 2007. It offers robust capabilities for precision machining. Consider the opportunity to buy this SW BAS 03-22 vertical machining center. Contact us for more information about this machine.
Overview
- brand: SW
- year: 2007
- MODEL: BAS 03-22
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - SW BAS 03-22
General Data
- Measurements width: 2450 mm
- Measurements depth: 3600 mm
- Measurements height: 2950 mm
- Machine weight: 8000 kg
Control Unit
- Brand: SIEMENS
- Model: Sinumerik 840D
Main drive
- Spindle speed range: 17500 rpm 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 300 mm
- X-AXIS Feed Force: 6000 N
- Y-AXIS Movement: 400 mm
- Y-AXIS Feed Force: 6000 N
- Z-AXIS Movement: 400 mm
- Z-AXIS Feed Force: 6000 N
Tools
- Number of index: 2 x 20 tools
- Max tool diameter: 70 mm
- Max tool length: 250 mm
Additional Information
- Technical Machine Benefits:
- - Mechanical and visual overhaul in 2023
- - New rotary unions, linear guides, ball screws, clamping and bearing package, and rotor and stator windings installed.
- - Sw maintenance package and seal kit for tables and rotary table included.
- - Measurement reports for spindles, machine geometry, and pitch reports for ball screws available.
- - Table blanks for tool mounting available.
- - Machines do not have central lubrication or required chip extraction system.
- - Adapter: hsk a63
- - Table feature: swivel table
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
