T-Rex - Servo 2040DE-MIL-TRE-2021-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used T-Rex Servo 2040 For Sale | gindumac.com

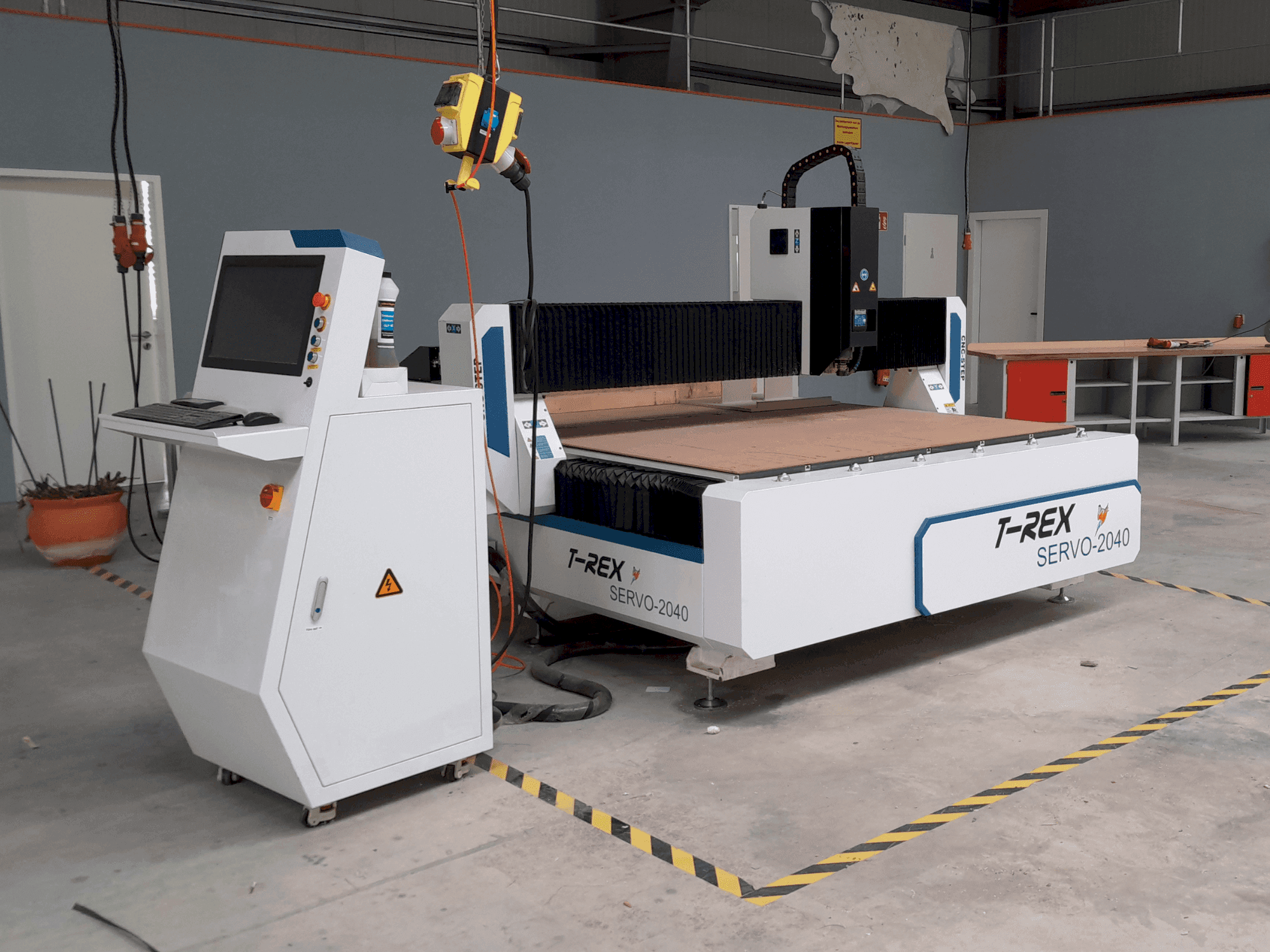

This 3-axis T-Rex Servo 2040 gantry milling machine was manufactured in 2021. It features a robust vacuum plate with T-slot rails, an advanced control system, and a KinetiC-NC interface. Equipped with a 21.5-inch Full HD touchscreen monitor and a powerful Intel 13-core processor, it ensures precise and efficient operations. The machine includes a high-frequency 6.6kW spindle and an automatic tool change station for enhanced productivity. Consider the opportunity to buy this T-Rex Servo 2040 gantry milling machine. Contact us for more information.
Overview
- brand: T-Rex
- year: 2021
- MODEL: Servo 2040
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
Technical Information - T-Rex Servo 2040
Dimensions
- Machine Depth: 7760 mm
- Machine Height: 2060 mm
Movement
- Number of Axes: 3
Technical Specification
- Spindle Speed: 24000 RPM
Additional Information
Additional equipment
- Automatic lubrication
- Side channel blower 7.50 kW
- Coolant reservoir
- CNC wireless remote control
Machine Benefits
Technical Machine Benefits
- Safety fences with sliding door
- Door contacts for safety fence
- 10m connection cable and neutrik connector
- Complete set including converter and pneumatics
- Tool change system assembly and setup
- Hosing including air/water hoses, installation and software setup
- Network: netgear prosafe business switch 5-port - gigabit - emc
- Transponi floor substructure / external dimensions 504 x 290 x 25 cm
Extra Information
Control Unit 21.5-inch Full HD touchscreen monitor Intel 13-core processor with 4GB RAM and 120GB SSD Pre-configured with Windows 10 Professional Main Drive Hiteco HF spindle 6.6kW Movement Travel: 4000 x 2000 x 200 mm (X/Yi2) Tools Glach tool change station - SK30 chucks Max. cutter length 70mm SK30 tool holder for ER32 collets ER32 collet set - 3.0-20.0mm, 18-point, High Precision Run-out accuracy 0.0006* Noga spray cooling set - Automatic
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
