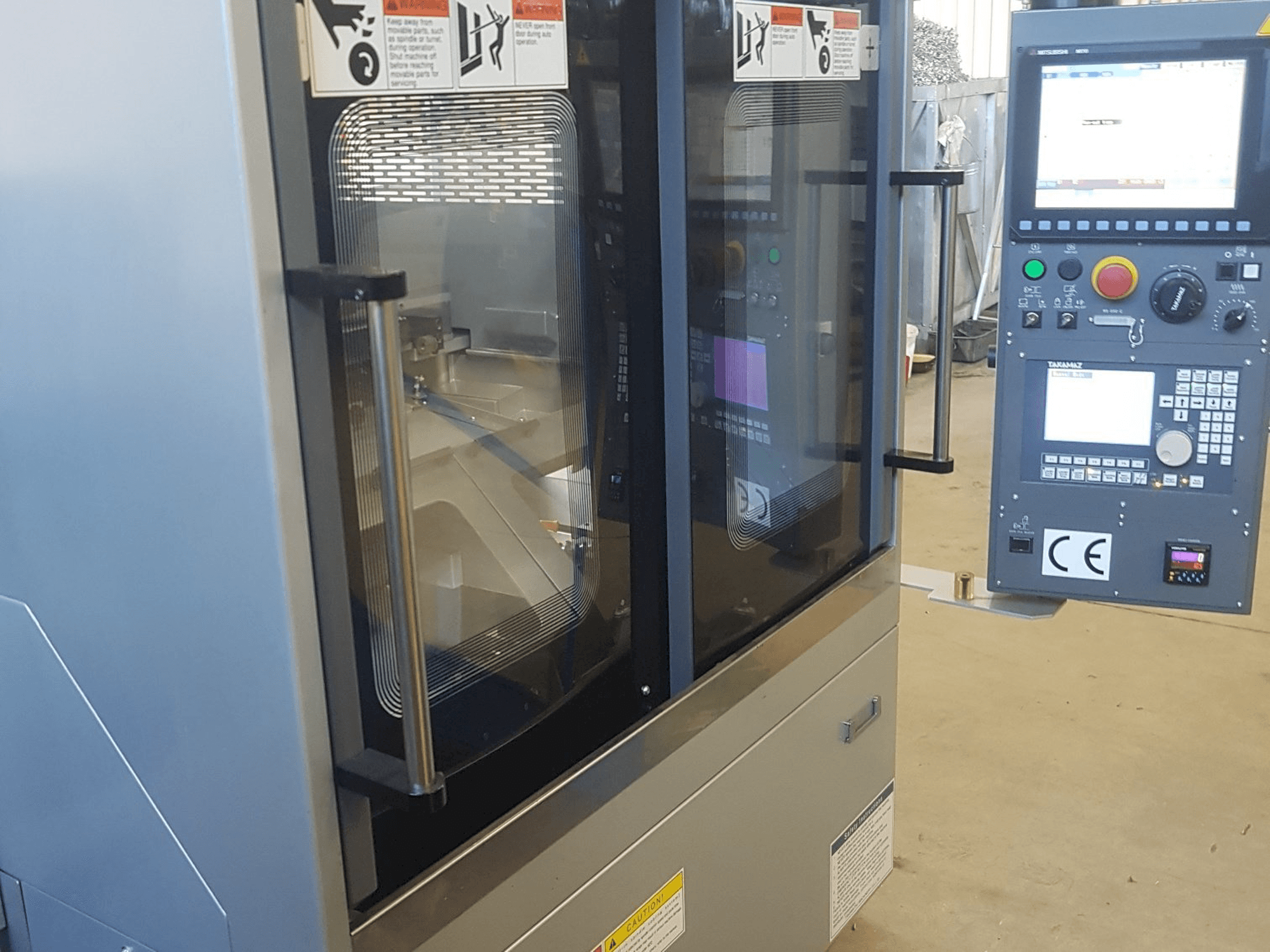

Front view of Takamaz XW-30 Plus machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Takamaz XW-30 Plus

Photo Gallery

Takamaz - XW-30 PlusCZ-TUR-TAK-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Takamaz XW-30 Plus Lathe

Show in original language

This Takamaz XW-30 Plus Lathe was manufactured in Japan in 2016 and has been working for only 285 hours. Equipped with a Mitsubishi M70V Control unit, this machine can work with a spindle speed up to 8000 rpm. This machine presents perfectly good conditions, as it is like new.

Overview

brand: Takamaz
year: 2016
MODEL: XW-30 Plus
production hours: 285
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: MITSUBISHI

Technical Information - Takamaz XW-30 Plus

Control Unit

Control Brand: MITSUBISHI
Control Model: M70V

Dimensions

Machine Depth: 2120 mm
Machine Height: 1900 mm
Machine Weight: 2700 kg

Movement

X-axis Travel: 160 mm
Z-axis Travel: 230 mm

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Loading robot (2-axis, 30 mm workpiece diameter)
3 x 380V transformer

Machine Benefits

Technical Machine Benefits

Max. Turning diameter 50 mm
Optimal turning diameter 30 mm
Max. Turning length 50 mm
Spindle taper a2-3
Max. Chuck diameter 100 mm
2x linear tool holder: dimension 240x140 mm, outer tool 16x16 mm, boring bar diameter 25 mm
Linear guideways on x/z axes
Air cylinders matsumoto for both spindles

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
