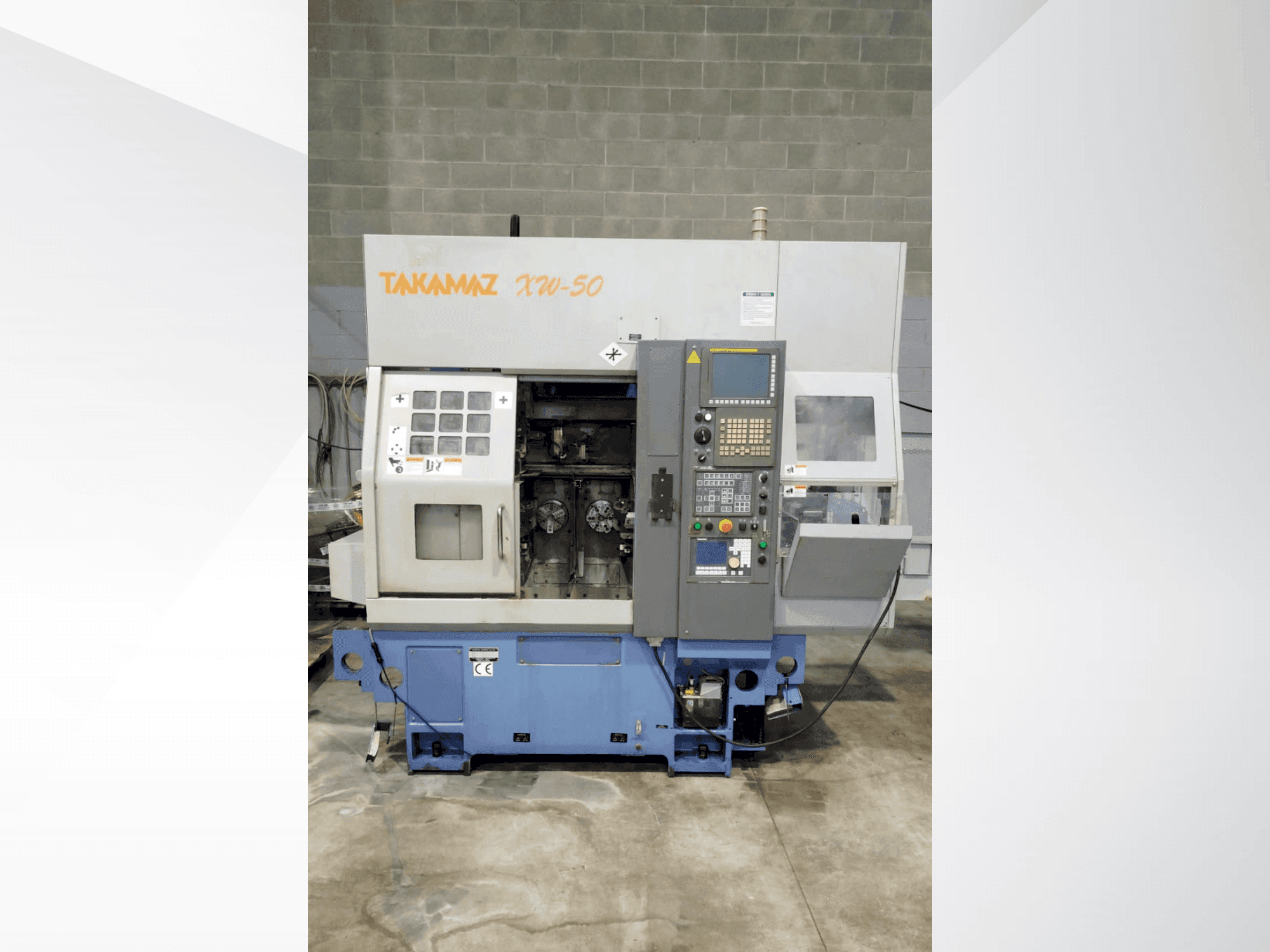

TAKAMAZ XW 50 (2006) Lathe

Show in original language

This TAKAMAZ XW 50 Lathe was manufactured in the year 2006 in Japan. It is equipped with a FANUC Series 32i-A Control unit. It has 2x hydraulic tanks and a coolant tank litted. The machine dispose of 2x 6-station turrets. See technical specs PDF (EN) attached below.

Overview

brand: Takamaz
year: 2006
MODEL: XW 50
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Takamaz XW 50

General Data

Measurements width: 2030 MM
Measurements depth: 1685 MM
Measurements height: 2200 MM
Machine weight: 4000 KG

Controller

Brand: TAKAMAZ & FANUC

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: AC 5.5/3.7 kW
Number of axis: 2

Movement

X-AXIS Rapid traverse: 18 m/min
Z-AXIS Rapid traverse: 18 m/min

Turret

Number of turrets: 2
Number of tool slots: 6

Additional Information

Machine Benefits

Technical Machine Benefits

Optimum turning diameter φ30 × 50
Max. Swing over bed φ220mm
Max. Turning diameter φ150mm
Max. Turning length 100mm
Spindle nose jis // spindle bearing id mmφ65 // hole through spindle mm φ37
Max. Tool size mm20 sq. , φ25
Max. Stroke on axis mm x: 100, z: 150
Feed motor kw x: ac1. 0, z: ac1. 6
Hydraulic tank lit. 12 (× 2)
Coolant tank lit. 154

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
