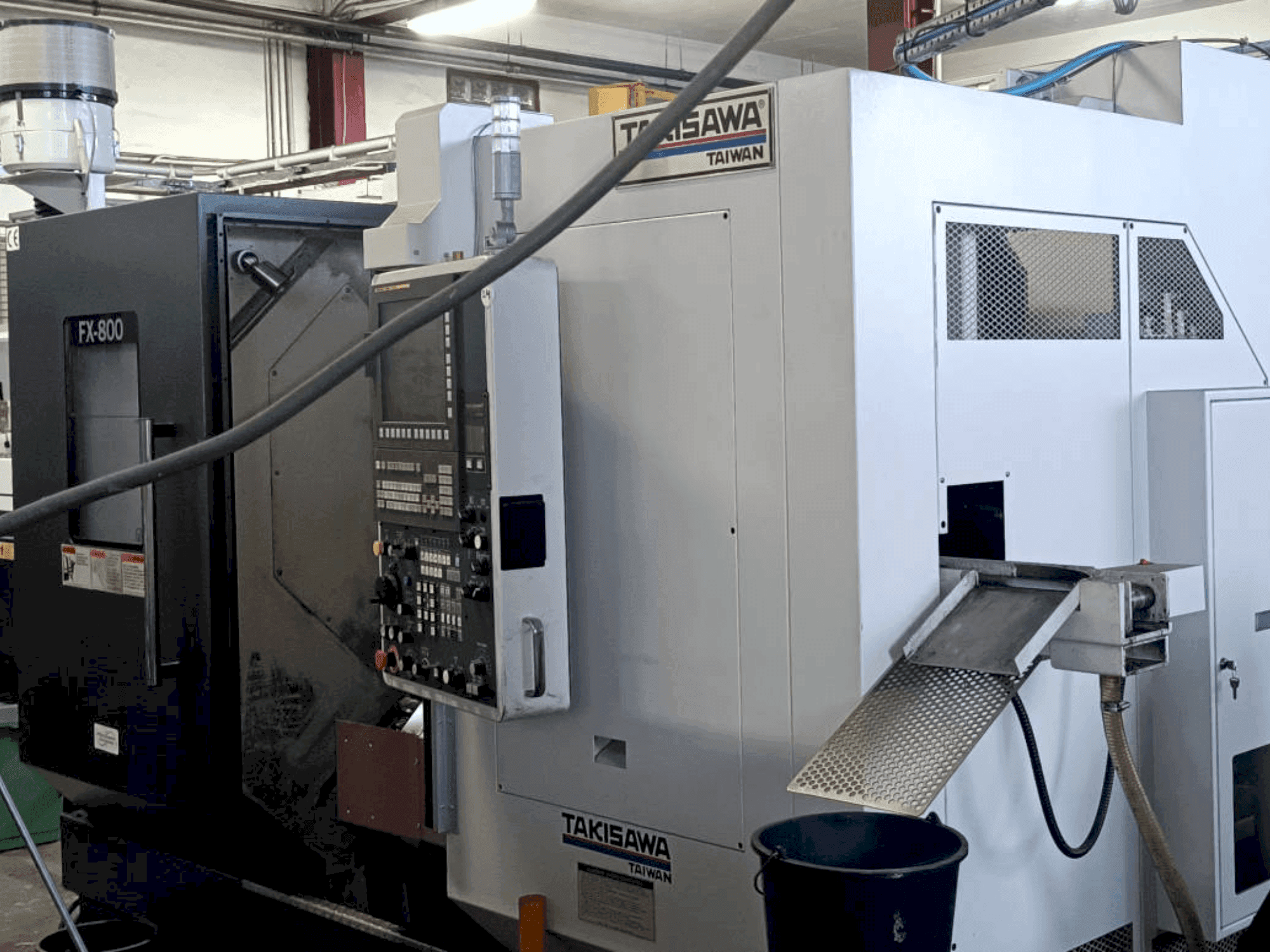

Front view of Takisawa FX800  machine

Takisawa - FX800DE-TUR-TAK-2017-00004

125,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 8-axis Takisawa FX800 was manufactured in 2017, a robust horizontal turning machine featuring dual spindles and two 16-position turrets, one with a Y-axis. It supports bar work up to 1500 mm and includes a bar loader, parts removal unit, and chip conveyor. Ideal for high-volume, precision turning operations. If you are looking to get high-quality turning capabilities, consider the Takisawa FX800 machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: Takisawa
  • year: 2017
  • MODEL: FX800
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - Takisawa FX800

General Data

  • Measurements width: 2394 mm
  • Measurements depth: 5530 mm
  • Measurements height: 2340 mm
  • Machine weight: 12300 kg

Control Unit

  • Brand: FANUC
  • Model: Oi TF with Ethernet connection

Main drive

  • Number of spindles: 2
  • Spindle speed range: 4500 / 5000 RPM 1/MIN
  • Spindle motor power: 15/11 kW - 11/7.5 kW
  • Number of axis: 8

Turret

  • Number of turrets: 2

Tools

  • Number of stations: 16

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Hydraulic clamping chuck Ø208 with hard clamping jaws // Hainbuch collet chuck SK 65 axfix
    • - Clamping cylinders with clamping sleeves
    • - Bar loader for 1500 mm bars with adjustable options
    • - Parts removal unit up to Ø65 mm with conveyor belt
    • - Coolant pumps (9 bar)
    • - Air through the 2nd spindle for blowing and ejection
    • - Extraction system with filter
    • - Special parting-off holder for parting blades from EWS
    • - Various clamping heads SK 65 // Various ER32 collets
    • - Camera surveillance // Tool monitoring: RAKU RAKU

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tool shank size: □25 mm
        • - Drill bar diameter: Ø40 mm
        • - 4 driven tool holders (axial), for er32 collet (angle heads) // 4 driven tool holders (radial), for er32 collet
        • - Power output of driven tools: 3. 7/5. 5 kw each
        • - Both spindles equipped with a disc brake (parking brake)
        • - Bar work capabilities up to 1500 mm // bar diameter through the main spindle: Ø65 (Ø67) // bar diameter through the feed spindle: Ø50 (Ø52) (occupied by automatic ejection)
        • - Camera for machine tool interior with sapphire lens and durable housing // real-time monitoring with optional touchscreen
        • - Ip68/169k rating for up to 100 bar high pressure
        • - Maintenance-free, high resolution, and suitable for 24/7 operation
        • - Various monitoring concepts and online support available

      Extra information

      • - Easy installation with one hole and one PO connection

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
