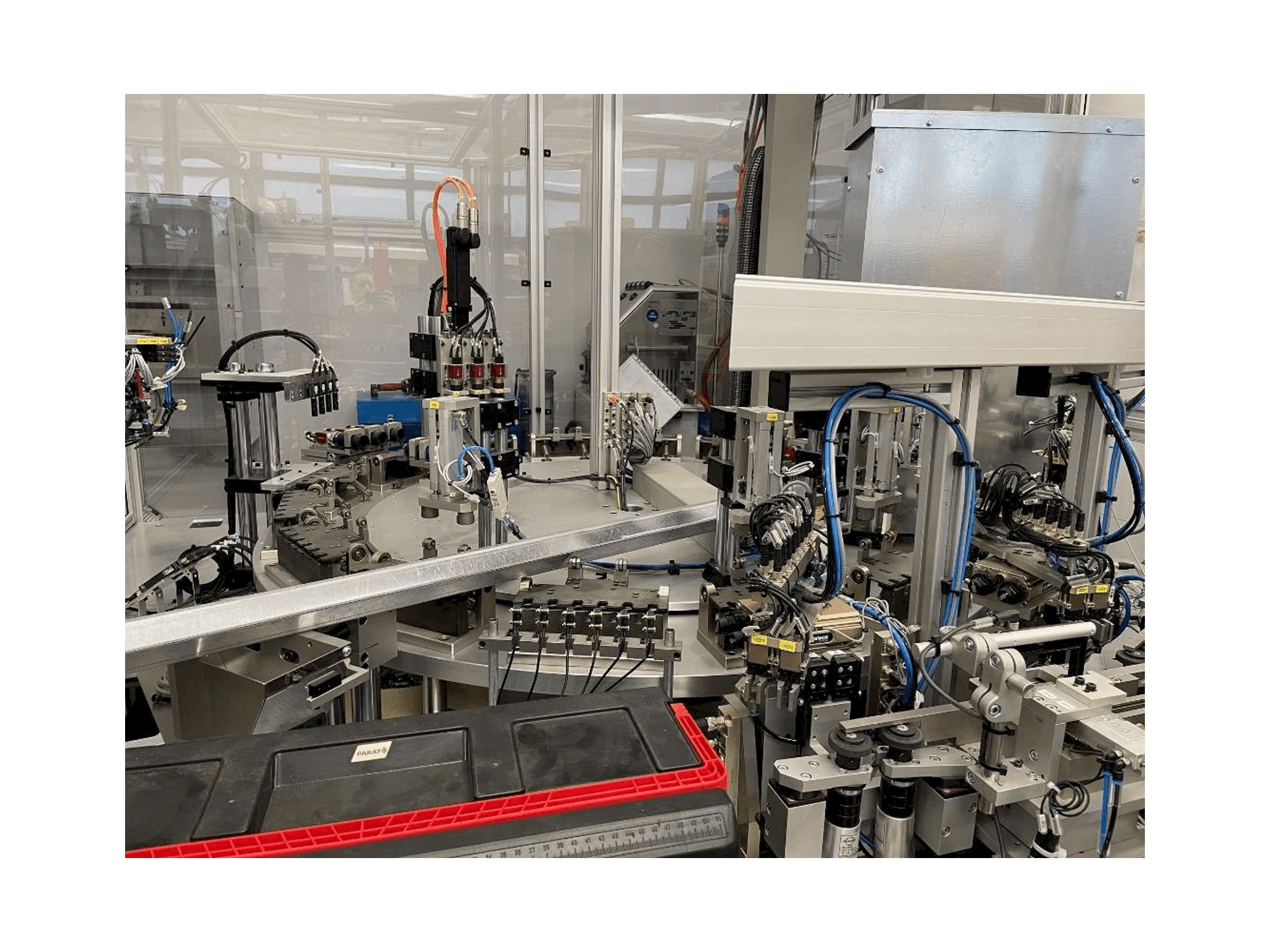

Front view of TEAM AUTOMATION BERLIN Tattoo Needle Testing System  machine

TEAM AUTOMATION BERLIN Tattoo Needle Testing System

TEAM AUTOMATION BERLIN - Tattoo Needle Testing System

2017

295,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

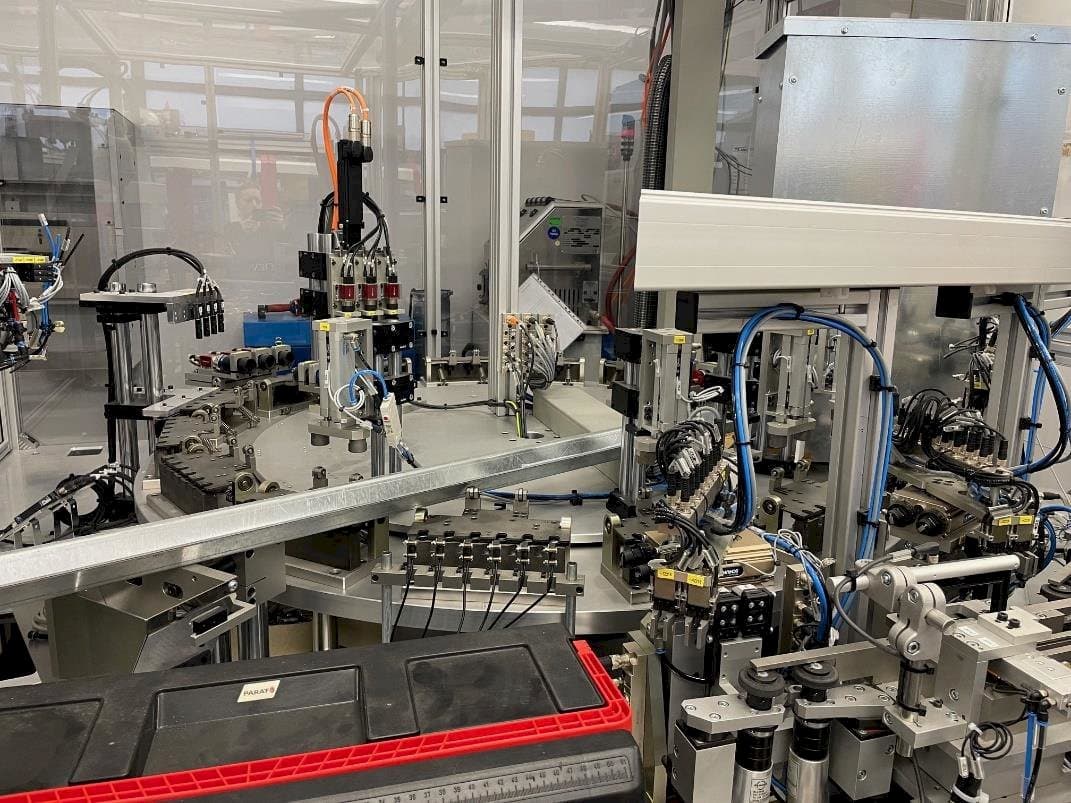

This TEAM AUTOMATION BERLIN Tattoo Needle Testing System was manufactured in the year 2017 in Germany. It is equipped with a SP control with KTP700F (Siemens) and operates with a 4-axis robot (SCARA LS20 with RC90 - Epson). With 1x linear axis (MLR-080-NN-2) and 1x precision axis (PSK 60), both Bosch Rexroth, the processing system runs reliably and efficiently. See video for more. There is also an IMS Tattoo Assembly Line available to set up a complete line with 2 phases before for the assembly of the needle in shaft together with the cap and tension spring.

Overview

  • brand: TEAM AUTOMATION BERLIN
  • year: 2017
  • MODEL: Tattoo Needle Testing System
  • application type: Other
  • Location: Germany
  • machine type: Other
  • availability: Immediately
  • GINDUMAC ID: DE-OTH-TEA-2017-00001

Technical Information

General Data

  • Measurements width: 4500 mm
  • Measurements depth: 4700 mm
  • Measurements height: 2560 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Sp control with ktp700f (siemens)
      • - Tattoo module feeder (grimm)
      • - 1x 4-axis robot scara ls20 with rc90 (epson)
      • - 1x linear axis mlr-080-nn-2 (bosch rexroth)
      • - 1x psk 60 precision axis (bosch rexroth)
      • - Camera system (avicom)
      • - Rotary indexing tables (weiss)
      • - Sensors (balluff, keyence, festo)
      • - Pneumatic grippers (schunk)
      • - Pneumatic equipment (festo)

    Extra information

    • - Space requirement: 6900 mm x 2560 mm (width x depth) // Ambient temperature: max. 35° C

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
