Tongtai - TNL-100 ALES-TUR-TON-2008-00001

Name: Tongtai TNL-100 AL
Brand: Tongtai
SKU: ES-TUR-TON-2008-00001
Price: 25000 EUR
Availability: InStock

25,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Tongtai TNL-100 AL For Sale | gindumac.com

Show in original language

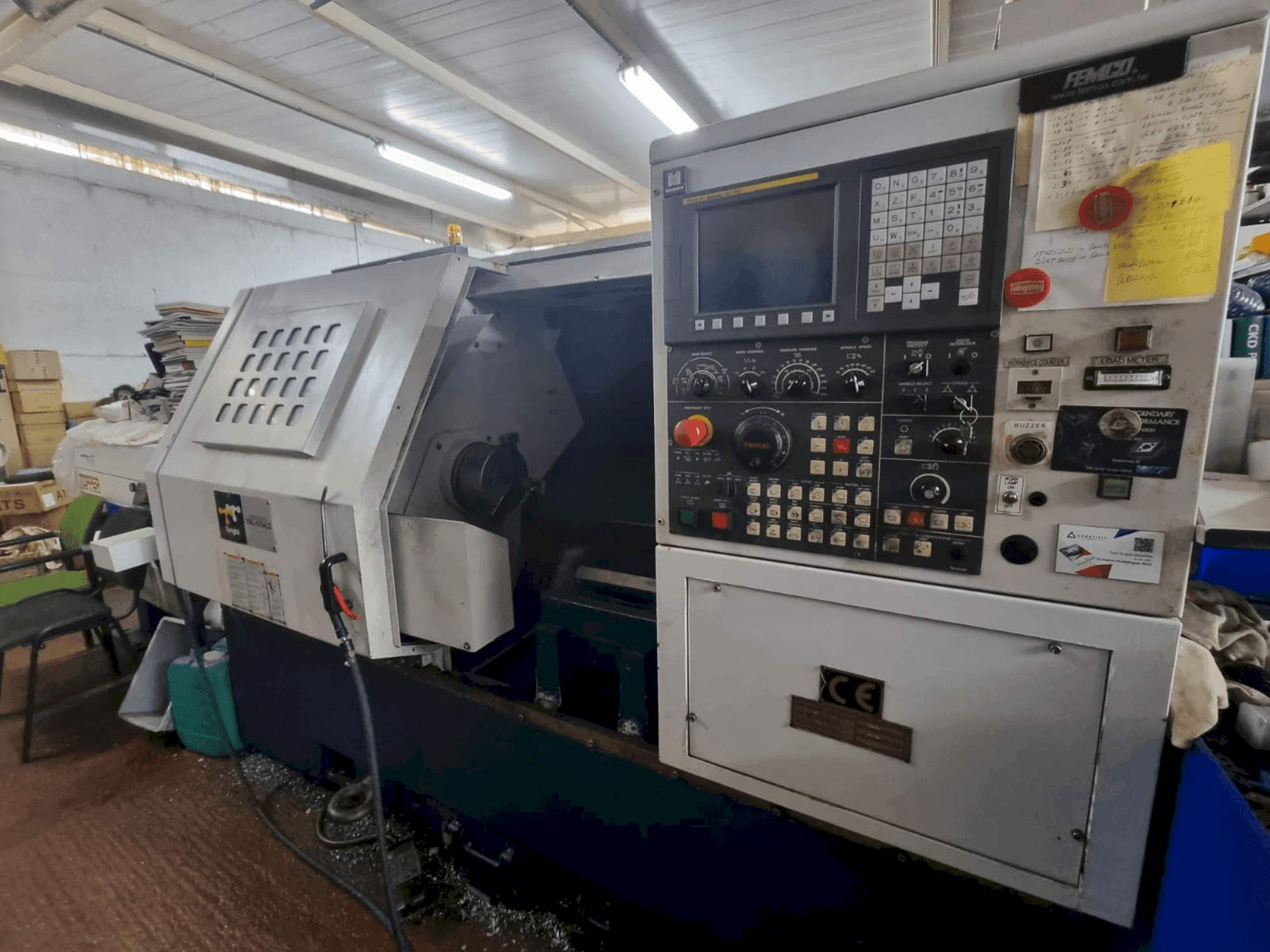

This Tongtai TNL-100 AL was manufactured in 2008. It features a 12-position servo turret, a maximum turning diameter of 320 mm, and a bar capacity of Ø 75 mm. The spindle can reach speeds up to 4,500 rpm, supported by a power range of 11–15 kW. Rapid traverse rates are 18 m/min in X and 20 m/min in Z. Consider the opportunity to buy this Tongtai TNL-100 AL horizontal turning machine. Contact us for more information.

Overview

brand: Tongtai
year: 2008
MODEL: TNL-100 AL
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine

Technical Information - Tongtai TNL-100 AL

General Data

Measurements width: 1500 mm
Measurements depth: 2700 mm
Measurements height: 1900 mm
Machine weight: 4300 kg

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 11–15 kW
Number of axis: 2

Movement

X-AXIS Rapid traverse: 18 m/min
Z-AXIS Rapid traverse: 20 m/min

Turret

Number of turrets: 1
Number of tool slots: 12
Tool taper: VDI

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: approx. 320 mm
- - Max bar capacity: Ø 75 mm
- - Tooling system: vdi turret, live tooling optional
- - Turret: 1 turret, 12-position servo turret

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
