TORNOS SAS 16.6

Photo Gallery

TORNOS - SAS 16.6PL-TUR-TOR-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TORNOS SAS 16.6 Swiss Type Turning

Show in original language

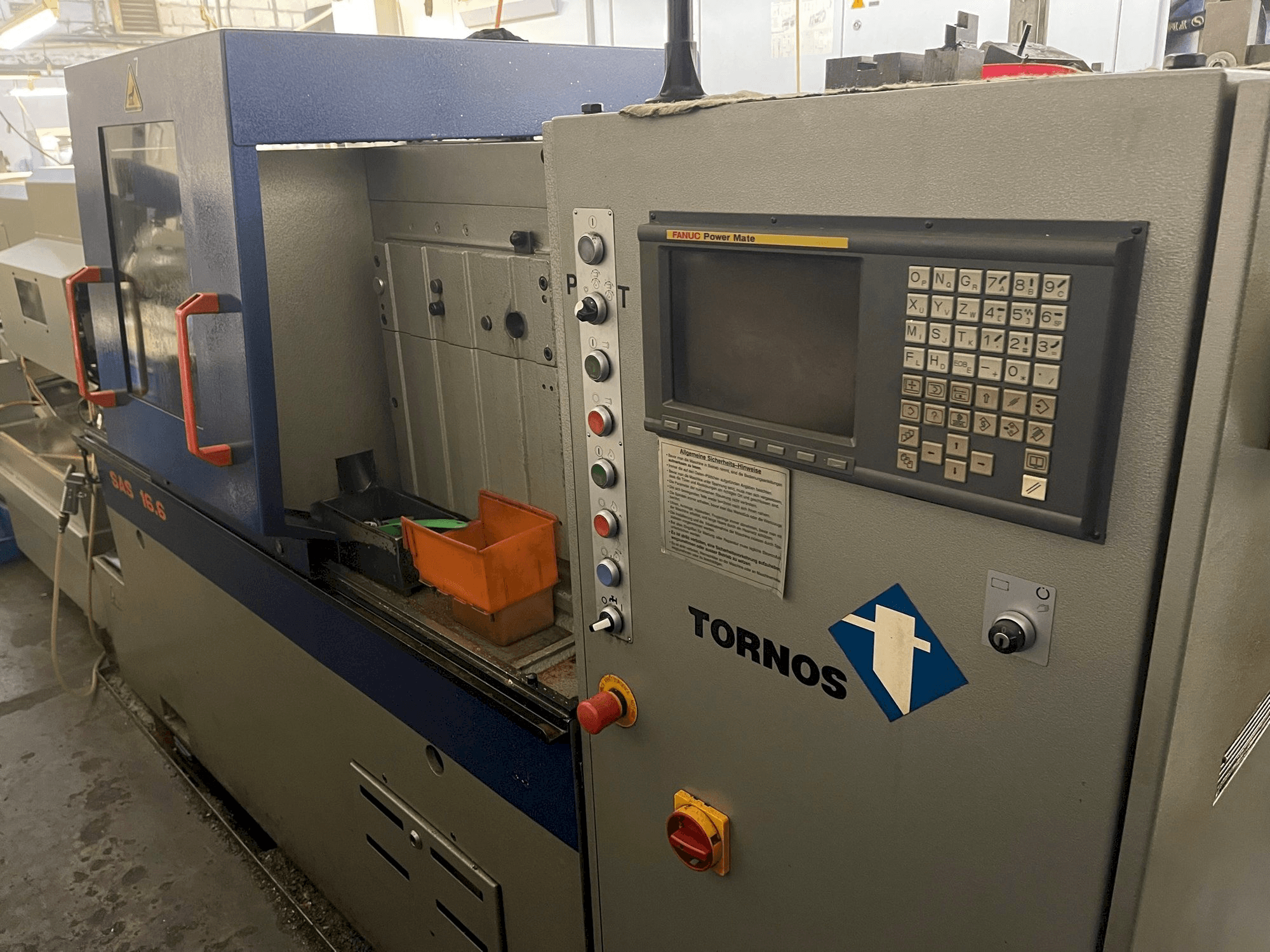

This TORNOS SAS 16.6 Swiss Type Turning was manufactured in the year 2011 in Switzerland and has 37276 production hours. It is equipped with a FANUC POWER MATE control unit. The machine has a spindle speed of 8000 rpm.

Overview

brand: TORNOS
year: 2011
MODEL: SAS 16.6
production hours: 37276
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - TORNOS SAS 16.6

Control Unit

Model: POWER MATE
Brand: FANUC

Main drive

Number of spindles: 6
Spindle speed range: 250-8000 1/MIN

Media

Main electronic connection: 380-420 V 50 Hz +/- 5%

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine is in very good condition. Connected ready for tests.
10 hp (7. 5 kw) motor ac type to drive the spindles
2,4 hp (1,8 kw 3000 rpm) motor ac 5,9 nm type to drive the camshaft
6 clamping tubes capacity 16mm
Standard slide pos. 1-6
Bar loading basic + feed tubes
Swing stop in position 6 as 29/7 including standard function cams

Technical Machine Benefits

Max turning diameter: 16 mm
6 spindles, 16mm (. 630") dia. Capacity
Locking of the barrel by hirt gearing
Indexing of barrel by manifold
Progr. Production cycle speed from 3-75 ppm
Progr. Acceleration of unproductive moves from 3-75 ppm
Automatic central lubrication system
Cutting oil tank cap. Of 300 l
Auxiliary motor for the coolant pump
Electrical cabinet with cn control panel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
