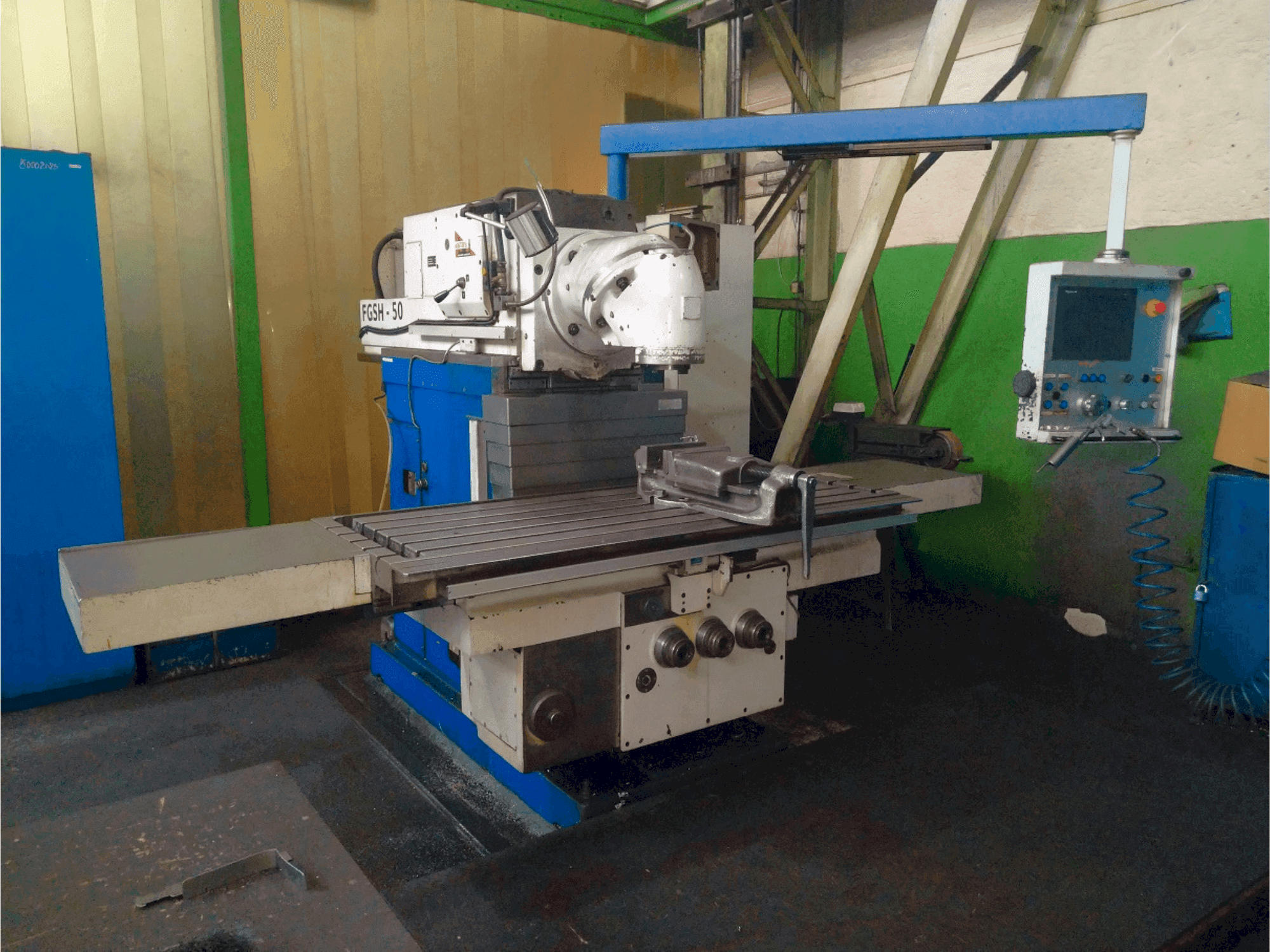

This 3-axis TOS FGSH 50 milling machine was manufactured in 1984 and completely retrofitted in 2016. It features a robust table size of 630 mm x 1800 mm, a spindle diameter of 110 mm, and can handle a maximum workpiece weight of 1200 kg. The machine offers rapid traverses up to 4000 mm/min longitudinally and cross, and 1000 mm/min vertically. Ideal for heavy-duty milling, buy this TOS FGSH 50 milling machine. Contact us for further details regarding this milling machine.
Overview
- brand: TOS
- year: 1984
- MODEL: FGSH 50
- production hours: 4995
- application type: Milling
- Location: Czech Republic
- machine type: Horizontal Machining Centre
Technical Information - TOS FGSH 50
Dimensions
- Machine Weight: 6500 kg
Movement
- X-axis Travel: 1400 mm
- Y-axis Travel: 630 mm
- Z-axis Travel: 500 mm
Technical Specification
- Taper Size: ISO 50
Additional Information
Additional equipment
- Table Size: 630 mm x 1800 mm
- Clamping Slots: 5 slots, 22 mm width, 100 mm spacing
- Maximum Workpiece Weight: 1200 kg
- Rapid Traverse - Longitudinal and Cross: 4000 mm/min
- Rapid Traverse - Vertical: 1000 mm/min
Machine Benefits
Qualitative Machine Benefits
- Able to handle large workpieces (up to 1200 kg)
Technical Machine Benefits
- Completely retrofitted in 2016
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
