WOTAN Rapid 2R/6-1500/2

Photo Gallery

74,000 €

gindumac price

(Ex works)

Get an official quote

WOTAN - Rapid 2R/6-1500/2DE-MIL-WOT-1979-00001

Name: WOTAN Rapid 2R/6-1500/2
Brand: WOTAN
SKU: DE-MIL-WOT-1979-00001
Price: 74000 EUR
Availability: InStock

74,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used WOTAN Rapid 2R/6-1500/2 For Sale | gindumac.com

Show in original language

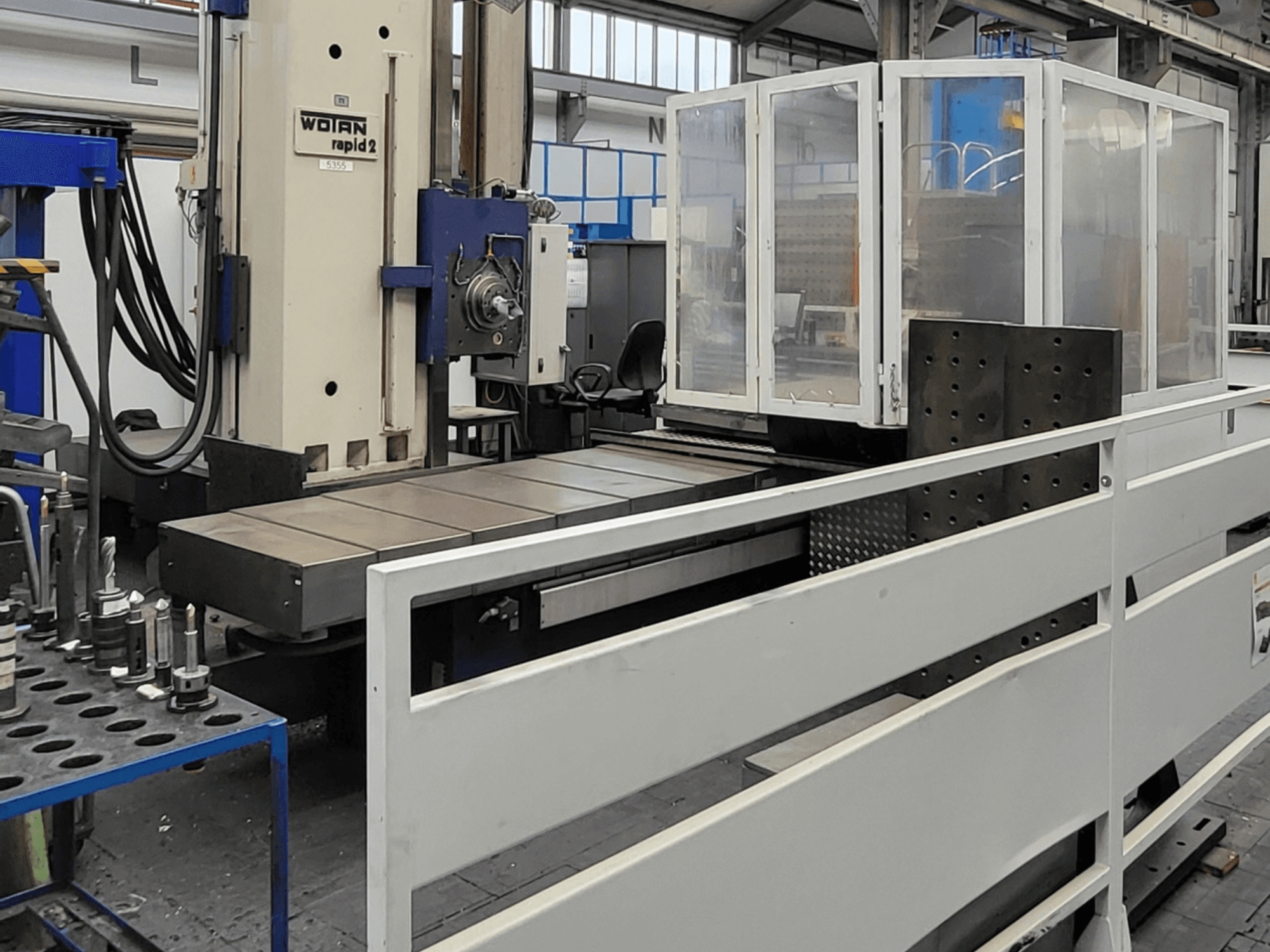

This 5-axis WOTAN Rapid 2R/6-1500/2 was manufactured in 1979 and rebuilt in 2015. It features an impressive X-axis travel of 2,000 mm, Y-axis travel of 1,250 mm, and Z-axis travel of 800 mm. The machine includes a robust table size of 1,250 x 1,600 mm and a maximum table load of 6,000 kg. If you are looking to get high-quality machining capabilities, consider the WOTAN Rapid 2R/6-1500/2 horizontal machining centre we have for sale. Contact us for further details.

Overview

brand: WOTAN
year: 1979
MODEL: Rapid 2R/6-1500/2
production hours: 130000
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - WOTAN Rapid 2R/6-1500/2

Control Unit

Control Brand: SIEMENS
Control Model: 840D

Dimensions

Table Length: 1600 mm
Table Load: 6000 kg
Table Width: 1250 mm

Movement

Number of Axes: 5
X-axis Travel: 2000 mm
Y-axis Travel: 1250 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Speed: 1250 RPM
Taper Size: SK 50

Additional Information

- W-Axis Travel: 1,000 mm

- Rapid Traverse: 5,000 mm/min

- Feed Range: 1-2,000 mm/min

- B-Axis Rotation: 360°

- B-Axis Rapid Speed: 3 rpm

- Spindle Speed Range: 3.2 - 1,250 rpm

- Main Drive Power (100% duty cycle): 45 kW

- Number of Speed Steps: 49

- Spindle Diameter: 130 mm

- Connected Load: 76 kVA

- Type of Current and Frequency: 3~ 50 Hz

- Operating Voltage: 400 V

- Control Voltage: DC 24 V

- Rated Current of Equipment: 110 A

- Rated Current of Allowed Fuse: 180 A (delay-action)

- Wiring Diagram: E - 10957

- Typical Workpiece Materials: Gray cast iron, cast steel

- Typical Workpiece Components: Housings, planet carriers

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
