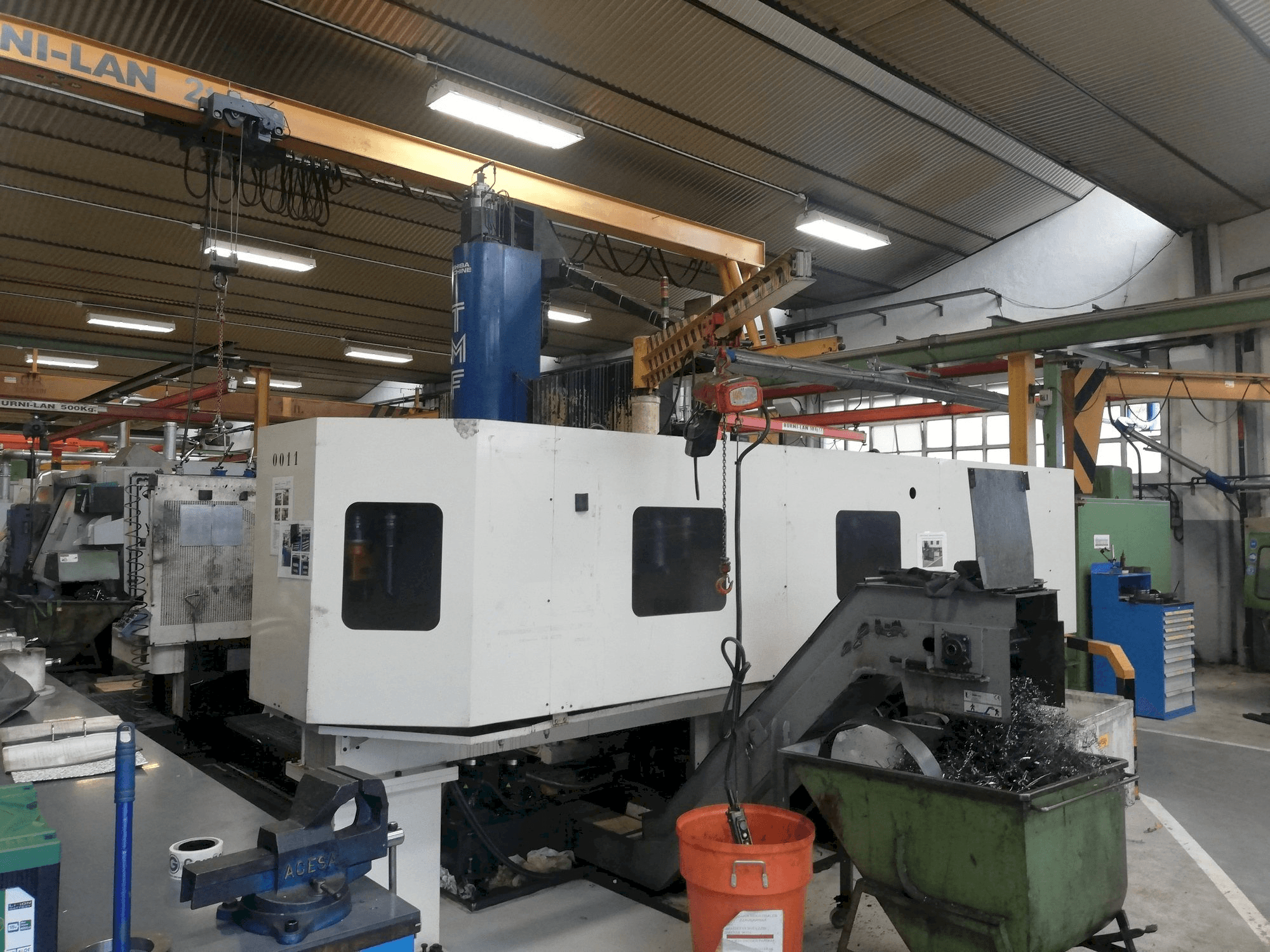

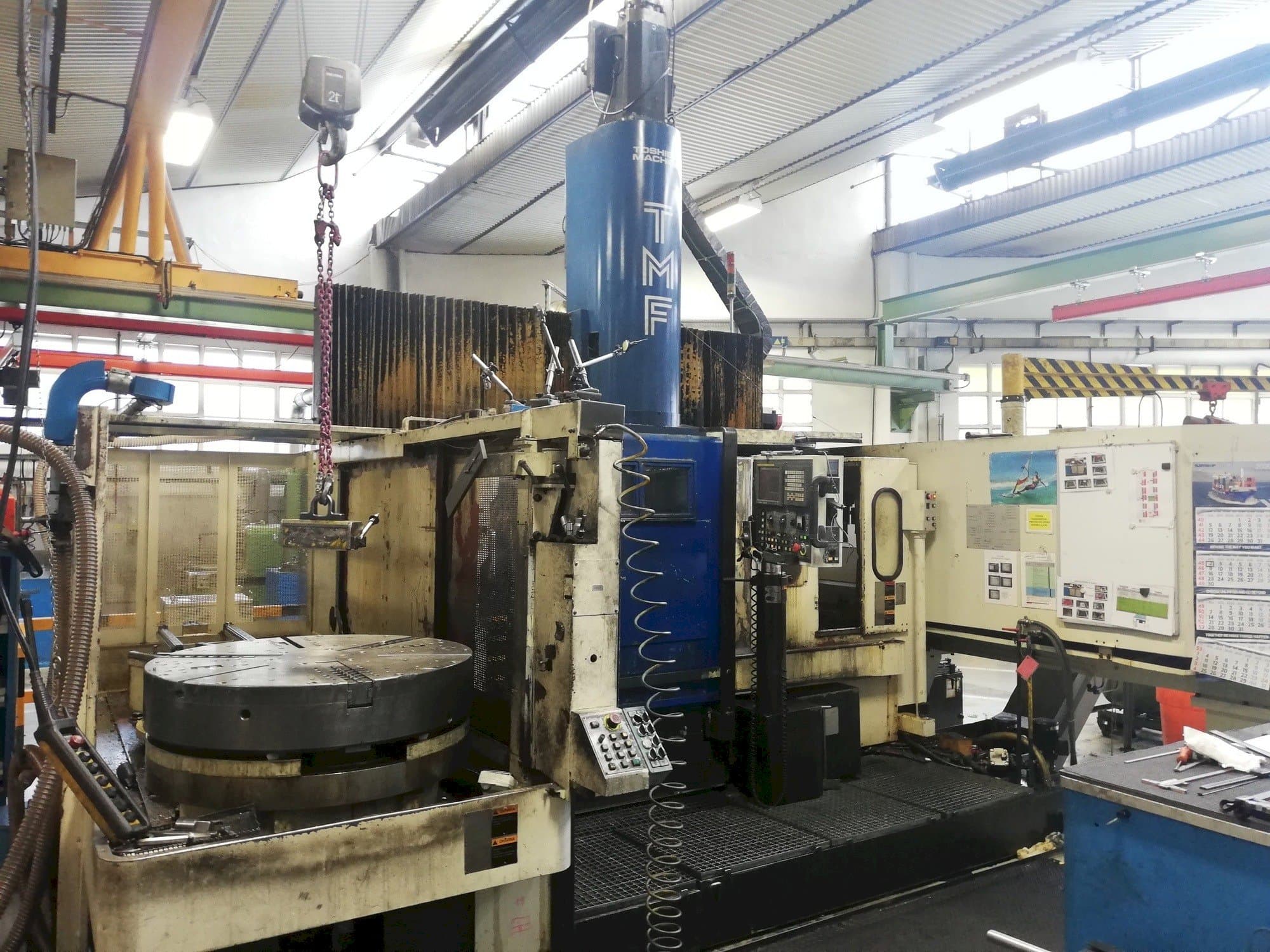

TOSHIBA TMF-10 Turning

Show in original language

This TOSHIBA TMF-10 Lathes Machine was manufactured in 2000. It operates with a Fanuc Series 18I - T Model A Control Unit. This 2 axis machine works with a spindle speed range 25-2500 rpm. The machine works in a good condition.

Overview

brand: Toshiba
year: 2000
MODEL: TMF-10
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Toshiba TMF-10

General Data

Measurements width: 6940 mm
Measurements depth: 5450 mm
Measurements height: 4920 mm
Machine weight: 22200 kg

Control Unit

Model: Series 18I - T Model A
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 25-2500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 725 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece x: 725 mm
Workpiece z: 800 mm

Turret

Number of turrets: 1

Additional Information

Machine Benefits

Technical Machine Benefits

Palet changer
Palet diameter 1,016 mm
Maximum swin 1,200 mm
Maximun cutting height 690 mm
Maximum cutting diameter 1,200 mm
Maximum load on pallet 1,000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
