This 3-axis TRAUB TNA 300 horizontal turning machine was manufactured in 2000. It features a spindle diameter of 65 mm and includes a high-pressure coolant system, driven tools with 4 kW power, and an automatic bar change system. The machine is equipped with a chip conveyor and tool monitoring systems for enhanced efficiency. If you are looking to get high-quality turning capabilities, consider the TRAUB TNA 300 machine we have for sale. Contact us for further details.
Overview
- brand: TRAUB
- year: 2000
- MODEL: TNA 300
- production hours: 116688
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: TRAUB
Technical Information - TRAUB TNA 300
Control Unit
- Control Brand: TRAUB
- Control Model: TX8H
Dimensions
- Machine Height: 1800 mm
- Machine Length: 2700 mm
- Machine Weight: 3500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 375 mm
- Z-axis Travel: 450 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 11 kW
- Spindle Speed: 5600 RPM
- Tool Stations: 12
Additional Information
Spindle bore / machine capacity: 65 mm
Installed 185E collet system capacity: max. 60 mm clamping diameter
Machine version: without tailstock
Basic configuration: included
Hydraulic hollow clamping cylinder: included
High-pressure coolant system: 12 bar / 3 bar
Control system: TX8H, 32-bit technology; processor latest generation (at time of build); parameter data on diskette
Axes/functions:
C-axis: included (numerically controlled spindle positioning and turning axis)
Y-axis: not included
Driven tools: included; power 4 kW
Monitoring and safety:
Tool breakage monitoring: included
Tool wear monitoring: included
Automatic drive shutdown after material end: selectable via parameter
Error message via parameter: selectable
Guideway cover: included
Workholding:
Collet clamping system: ROHM
Collet system compatibility:
DIN 6343 size 48, max diameter 42 mm
Rubberflex series 52 compatible
Rubberflex series 36 compatible
Fahrion collet FM 1149 MB compatible
Fahrion collet FM 1148 MB compatible
Electrical:
Electrical system according to: VDE / EN 60204
Operating voltage: 400 V / 50 Hz
Accessory voltage: 230 V / 50 Hz
Control voltage: 24 V DC
Multi-voltage transformer: 460 / 400 / 380 / 220 / 200 V
EMC:
Compliance: industrial class A
Standards: EN 50081 / EN 50082 / EN 55011 / EN 55022
Machine standards: DIN EN 292; DIN EN 294; DIN EN 418; DIN EN 60204-1
Pneumatic system: Mannesmann Rexroth ISO
Additional equipment
Chip conveyor: included
Workpiece removal device: included; via conveyor, left side discharge
Bar feeder preparation: included

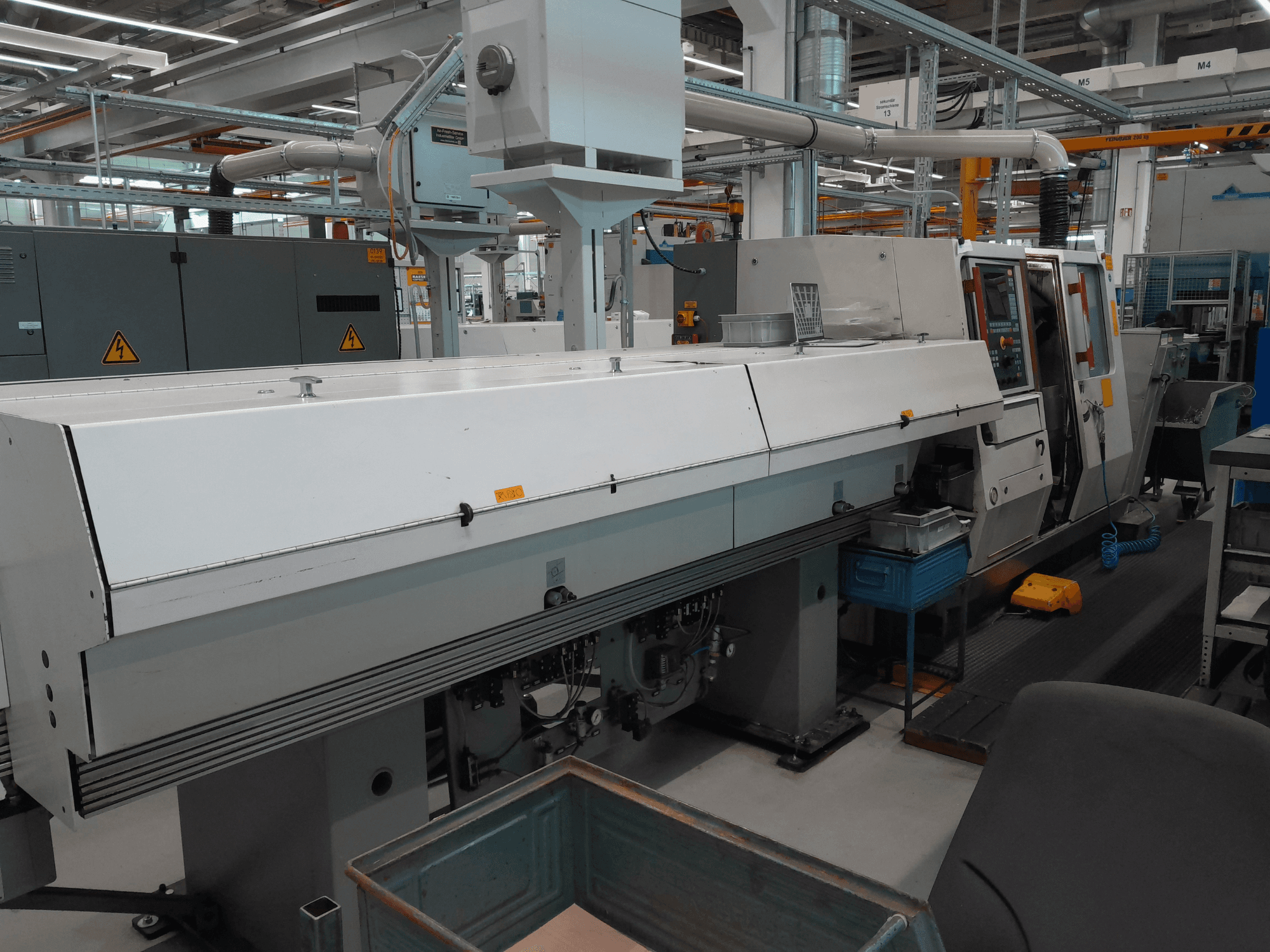

Bar feeder: TRAUB DNH 61-3000 (automatic)
Feeding: telescopic pusher system
Bar shapes: round / hexagonal / square
Maximum bar length: 3200 mm
Maximum bar diameter (long bars): 63 mm
Maximum bar diameter (short pieces): 65 mm
Automatic bar change: included
Residual piece removal: forward
Central adjustment of bar diameter: included
Stepless feed force adjustment: included
Central magazine adjustment: included
No guide channel change required
No clamping sleeve change required
Short remnant pieces possible
Transverse loading system
Transport weight: approx. 2100 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
