TRAUB - TNE300DE-TUR-TRA-1999-00001

Name: TRAUB TNE300
Brand: TRAUB
SKU: DE-TUR-TRA-1999-00001
Price: 15000 EUR
Availability: InStock

15,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Lathe TRAUB TNE300 (1999) for sale | GINDUMAC.COM

Show in original language

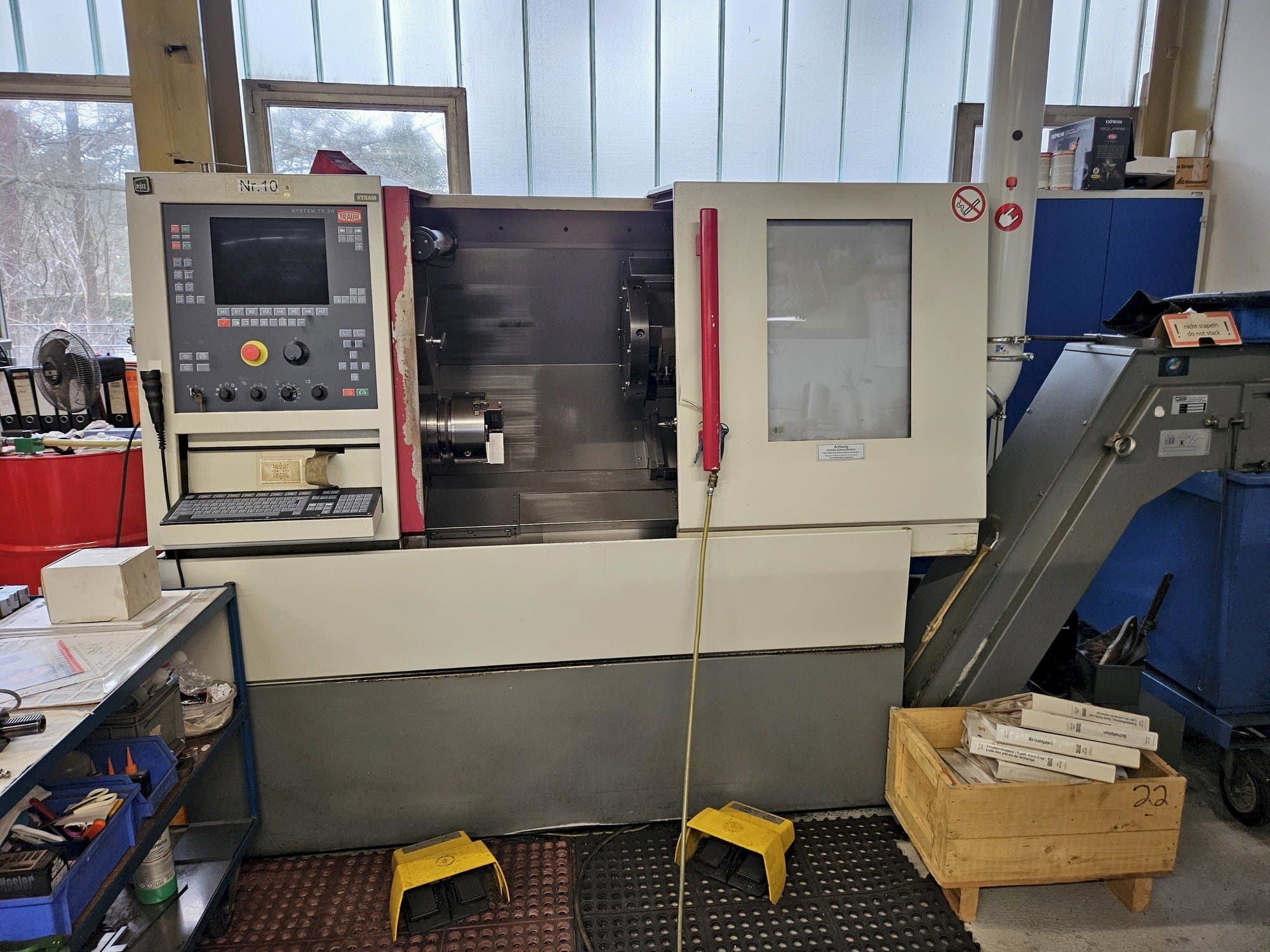

This TRAUB TNE300 Lathe was manufactured in 1999. It has a turning length of 450 mm and a turning Ø of 275 mm. The turning speed is 4,000 rpm. This turning machine is operated with a TRAUB System TX 8H control. It has 2 axes (X-axis 210 mm, Z-axis 450 mm). Contact us anytime for further questions!

Overview

brand: TRAUB
year: 1999
MODEL: TNE300
production hours: 9883
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: Traub TX8H

Technical Information - TRAUB TNE300

General Data

Measurements width: 3600 mm
Measurements depth: 1600 mm
Measurements height: 1800 mm
Machine weight: 3000 kg

Control Unit

Brand: Traub TX8H

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 11

Movement

X-AXIS Movement: 210 mm
Z-AXIS Movement: 450 mm

Turret

Number of turrets: 1
Number of tool slots: 8

Additional Equipment

- All tools in the cupboard are included in the price.
- spindle passage 65mm / chuck diameter 200-250mm / max. turning diameter 275mm
- travel over centre of rotation 25mm / max. turning length 450mm
- turning diameter over face slide 372mm / turning diameter over bed 560mm
- tool holder 8 places / shank diameter 30mm / chisel cross-section 20x0 mm
- feed x-axis / slide path 210mm / feed 3000 N / rapid traverse 12 m/min
- Z-axis / slide travel 450mm / feed 6000 N / rapid traverse 18 m/min
- tailstock / pinol diameter 70mm / quill stroke70mm
- coolant lubrication system / capacity 160 litres

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length 450 mm
- - Turning Ø 275 mm
- - Ø above the bed 560 mm
- - Ø above transversing slide 372 mm
- - Length between centers 500 mm
- - Spindle bore 65 mm
- - Main drive: spindle speed max. 4000 min-1 / torque 183 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
