TRAUB - TNK 36DE-TUR-TRA-2002-00002

30,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

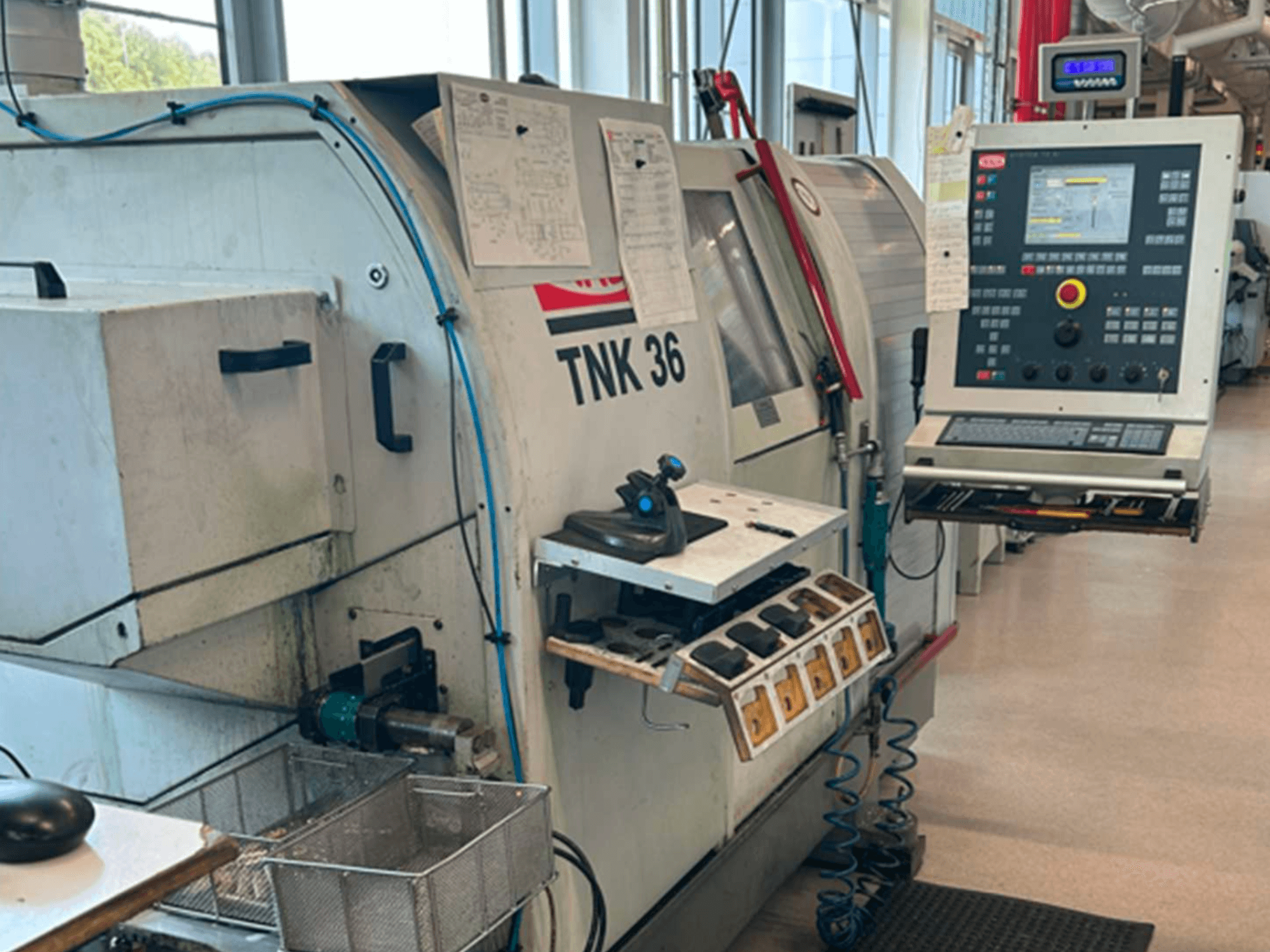

This 10-axis TRAUB TNK 36 horizontal turning machine was manufactured in 2002. It features a main spindle speed of 6,300 rpm and a counter spindle speed of 6,300 rpm. The machine includes a maximum workpiece diameter of 32 mm and a coolant tank capacity of approximately 360 liters. If you are looking to get high-quality turning capabilities, consider the TRAUB TNK 36 machine we have for sale. Contact us for further details.

Overview

  • brand: TRAUB
  • year: 2002
  • MODEL: TNK 36
  • production hours: 147007
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • control unit brand: TRAUB

Technical Information - TRAUB TNK 36

Control Unit

  • Control Brand: TRAUB
  • Control Model: TX8i (64-bit)

Movement

  • Number of Axes: 10
  • X-axis Travel: 370 mm
  • Z-axis Travel: 250 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Max. Bar Diameter: 36 mm
  • Max. Workpiece Diameter: 32 mm
  • Spindle Power: 10.7 kW
  • Spindle Speed: 6300 RPM
  • Through-spindle Coolant: Yes
  • Tool Stations: 22

Additional Information

  • 14" flat screen

  • Additional V24 RS232 interface in the electrical cabinet

  • MDE interface in the electrical cabinet (machine status and parts counter)

  • Rigid tapping without compensation chuck

  • Polyform function for C-axis

  • Tool monitoring

  • Main spindle bore: 36 mm

  • Main spindle drive power: AC 6.7 / 10.7 kW

  • Main spindle C-axis

  • Motorized counter spindle

  • Counter spindle bore: 32 mm

  • Counter spindle speed: 6,300 rpm

  • Counter spindle Z-axis travel: 250 mm

  • Counter spindle Z-axis rapid traverse: 30 m/min

  • Counter spindle C-axis

  • Counter clamping pressure device

  • Workpiece ejector

  • Increased feed force

  • Hainbuch Axfix chuck

  • X2 travel: 50 mm

  • Y2 travel: ±20 mm

  • Z2 travel: 100 mm

  • X2 rapid traverse: 15 m/min

  • Y2 rapid traverse: 15 m/min

  • Z2 rapid traverse: 15 m/min

  • 12 driven tools (via central drive)

  • Driven tool speed: 6,000 rpm

  • Electronic gearbox

  • X3 travel: 370 mm

  • Z3 travel: 250 mm

  • X3 rapid traverse: 30–60 m/min

  • Z3 rapid traverse: 30 m/min

  • 5 driven tools

  • Tool holder diameter: 40 mm

  • Driven tool speed: 6,000 rpm

  • Increased feed force

  • X4 travel: 73 mm

  • Y4 travel: ±50 mm

  • X4 rapid traverse: 15 m/min

  • Y4 rapid traverse: 15 m/min

  • 5 driven tools

  • Tool holder diameter: 40 mm

  • Driven tool speed: 6,000 rpm

  • Left-hand workpiece conveyor

  • Pneumatic workpiece gripper

  • Gripper jaws: Ø5–8 mm / Ø8–20 mm / Ø20–36 mm

  • Maximum workpiece length: 200 mm

  • Maximum workpiece diameter: 32 mm

  • RESY compact belt filter

  • Cooling unit

  • Coolant tank capacity: approx. 360 l

  • Coolant pressure: 7 bar

  • Coolant flow rate: 50 l/min

  • Through-tool coolant: 30 bar

  • Coolant gun

  • Connected load: 22 kW

Optional equipment, not included:

  • KNOLL 240S-1/100 hinged belt chip conveyor (discharge height: 950 mm)

  • Bar feeder preparation (guide tubes Ø25 / Ø36)

  • Rotating workpiece stop (16 × 16 mm shank)

  • Brankamp CMS 100 collision monitoring (main and counter spindle)

  • FMB Turbo 5-42 XT / 3200 "C" bar feeder

  • Basic set of static and driven tool holders included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
