TRIMILL VC1110

Photo Gallery

TRIMILL - VC1110DE-MIL-TRI-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TRIMILL VC1110 For sale | gindumac.com

Show in original language

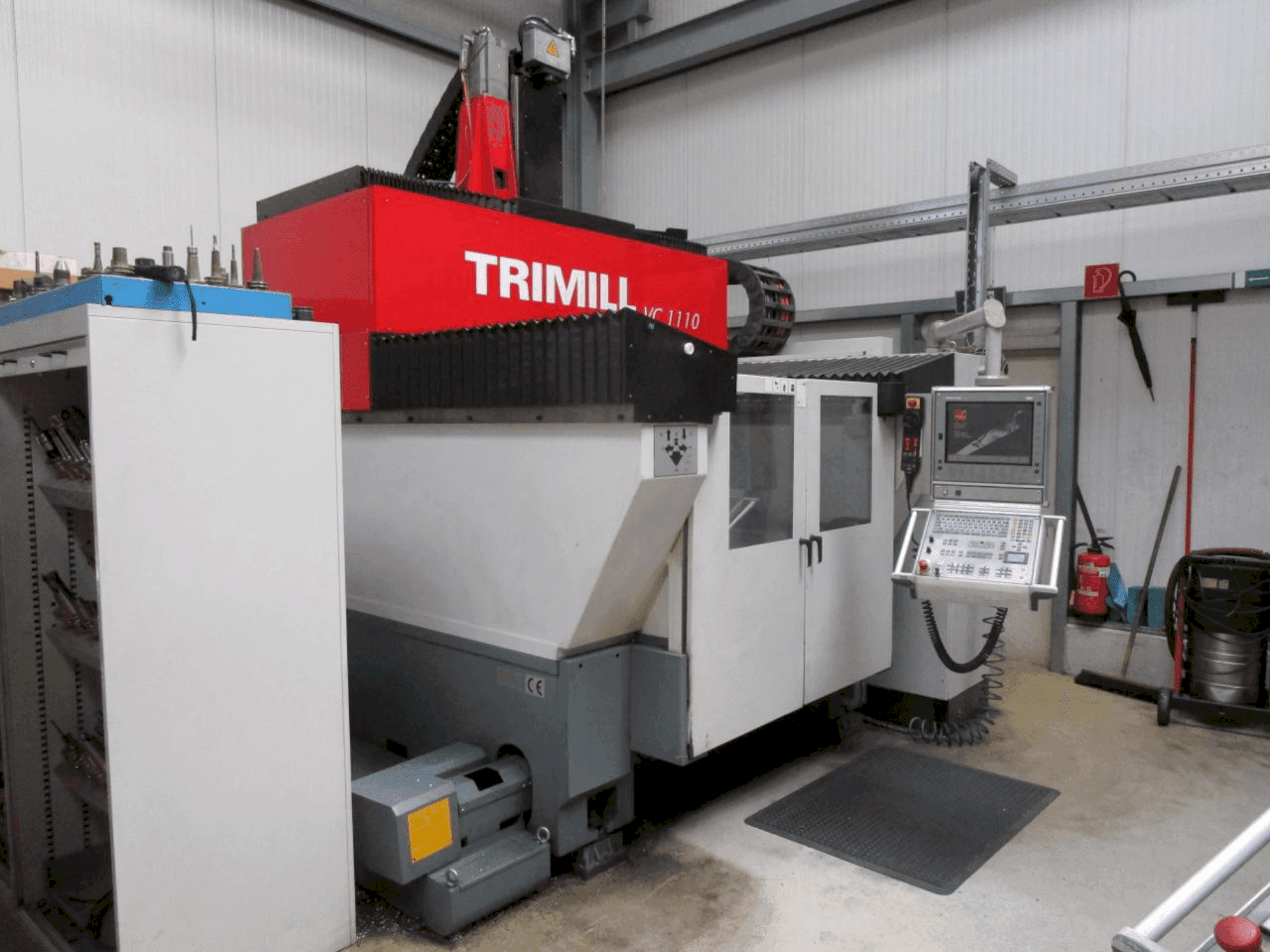

This 3-axis TRIMILL VC1110 milling machine was manufactured in 2012. It features a robust Heidenhain 530 HSCI control, with travel paths of 1100mm on the X-axis, 1000mm on the Y-axis, and 700mm on the Z-axis. The machine supports a clamping surface of 1350 x 1300 mm, can handle a maximum load of 8000kg, and offers a speed range of 30-14,000 rpm. A great opportunity to buy this TRIMILL VC1110 milling machine. Contact us for further details regarding this milling machine.

Overview

brand: TRIMILL
year: 2012
MODEL: VC1110
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - TRIMILL VC1110

Control Unit

Control Brand: HEIDENHAIN
Control Model: 530 HSCI

Dimensions

Machine Weight: 15000 kg

Movement

Number of Axes: 3
X-axis Travel: 1100 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 700 mm

Technical Specification

Spindle Speed: 14000 RPM

Additional Information

Additional equipment

Tool magazine with 10 compartments
Air through spindle

Machine Benefits

Qualitative Machine Benefits

High precision with excellent position accuracy, supports heavy and large workpieces.

Technical Machine Benefits

High spindle speed, rapid traverse rate, large clamping surface.
Feed rates: working feed 20 m/min, rapid traverse 30 m/min
Nominal speed in xyz: 2000 rpm
Motor nominal speed: 1470 rpm
Max. Torque: 170 nm
Max. Workpiece dimensions with max. Tool length of 300mm: 1100 x 1000 x 500 mm
Number of t-slots x width: 10x18mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
