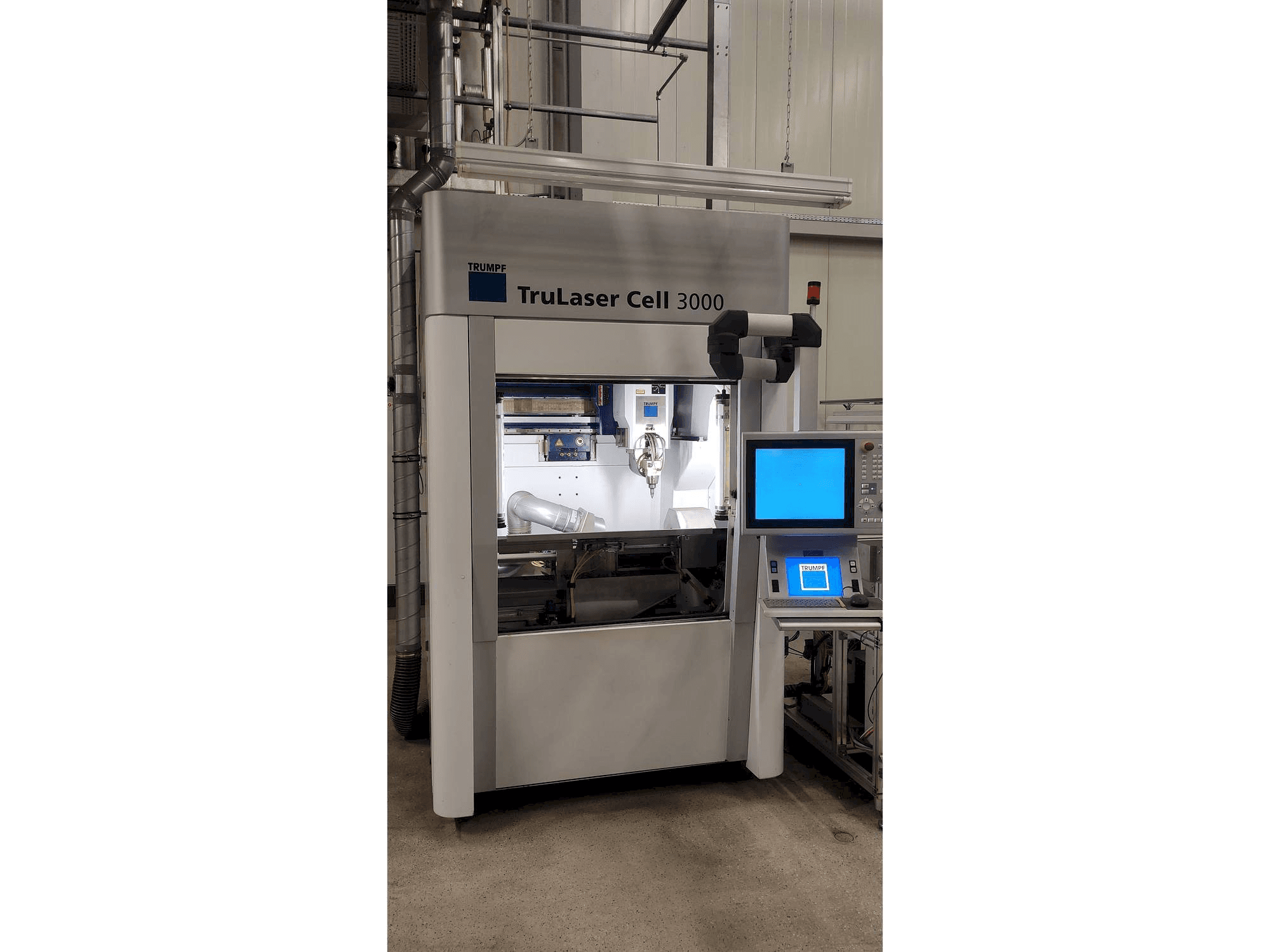

Front view of Trumpf TruCell3000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruCell3000

Photo Gallery

TRUMPF - TruCell3000DE-LAS-TRU-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TruCell3000 Laser Cutting machine

Show in original language

This Trumpf TruCell3000 Laser Cutting machine was manufactured in the year 2014 in Germany. It is equipped with a Trumpf control unit. The machine has a laser power of 8,4 kW.

Overview

brand: TRUMPF
year: 2014
MODEL: TruCell3000
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Laser Welding Machine
control unit brand: TRUMPF

Technical Information - TRUMPF TruCell3000

General Data

Machine weight: 6120 kg

Control Unit

Brand: TRUMPF

Main drive

Laserpower: 8,4 kW

Movement

X-AXIS Movement: 800mm
Y-AXIS Movement: 600mm
Z-AXIS Movement: 400mm

Media

Main electronic connection: 400 V
Power consumption: 10 KVA

Additional Information

Additional equipment

The following fiber optic cable is installed in the system: LLK- D 01
Accessories: Cutting head, welding head (150 mm), setting master for cutting head and welding head, communication interface for external peripherals, automatic front door with servomotor, support frame
Notes: Right side door has an opening for pipe processing. This must be closed with closed on both sides with a metal sheet.

Machine Benefits

Qualitative Machine Benefits

The right-hand side door has an opening for pipe processing. This must be closed with a metal sheet on both sides.

Technical Machine Benefits

Cutting head
Welding head 150 mm
Setting master for cutting head and welding head
Communication interface for external peripherals
Automatic front door with servo motor
Support frame

Extra Information

The machine is a true all-around compact 3D laser machine, well suited for laser welding, laser cutting, and laser metal deposition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

performance data.pdf
