TRUMPF - TruLaser 2525CN-LAS-TRU-2009-00003
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf TruLaser 2525 Laser Cutting Machine

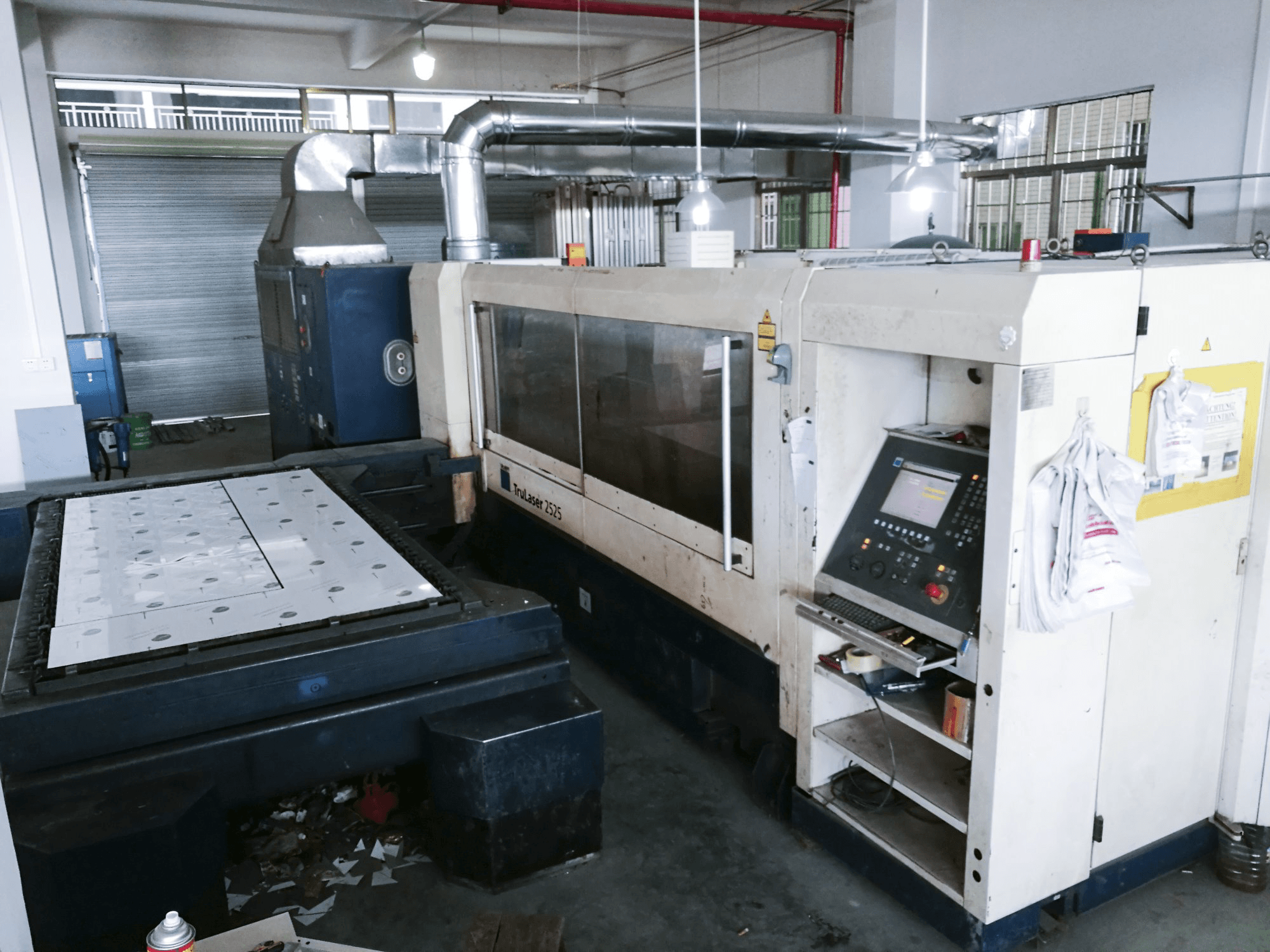

This Trumpf TruLaser 2525 Laser Cutting Machine from 2009 is a compact equipment, with a production record of 46000 hours. Operated through a SIEMENS SINUMERIK 840D Control unit, the machine is especially fit for handling thin sheets and stands out for its German-manufactured quality laser.
Overview
- brand: TRUMPF
- year: 2009
- MODEL: TruLaser 2525
- production hours: 46000
- application type: Cutting
- Location: China
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - TRUMPF TruLaser 2525
General Data
- Measurements width: 7800 mm
- Measurements depth: 6100 mm
- Measurements height: 2000 mm
- Machine weight: 8450 kg
Control Unit
- Model: SINUMERIK 840D
- Interface: USB, Ethernet
- Brand: SIEMENS
Main drive
- Number of spindles: 1
- Laserpower: 3.2 kW
Movement
- X-AXIS Movement: 2500 mm
- X-AXIS Working Feed: 60 m/min
- Y-AXIS Movement: 1250 mm
- Y-AXIS Working Feed: 60 m/min
- Z-AXIS Movement: 115 mm
- Z-AXIS Working Feed: 60 m/min
- Pa Accuracy: 0.1
- Ps Accuracy: 0.03
Workpiece
- Workpiece x: 2500 mm
- Workpiece y: 1250 mm
- Workpiece weight: 500 kg
Table
- Outer length: 2500 mm
- Outer width: 1250 mm
Max Material thickness
- Steel: 20 mm
- Stainless steel: 12 mm
- Aluminum: 8 mm
Media
- Main electronic connection: 400V / 50 Hz
- Power consumption: 65 kVA
- Air pressure: 6 bar
- He consumption: 13.1 l/h
- CO2 consumption: 1.1 l/h
- N2 consumption: 5.8 l/h
- Lubrication tank: 95 L
- Chip conveyor: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
