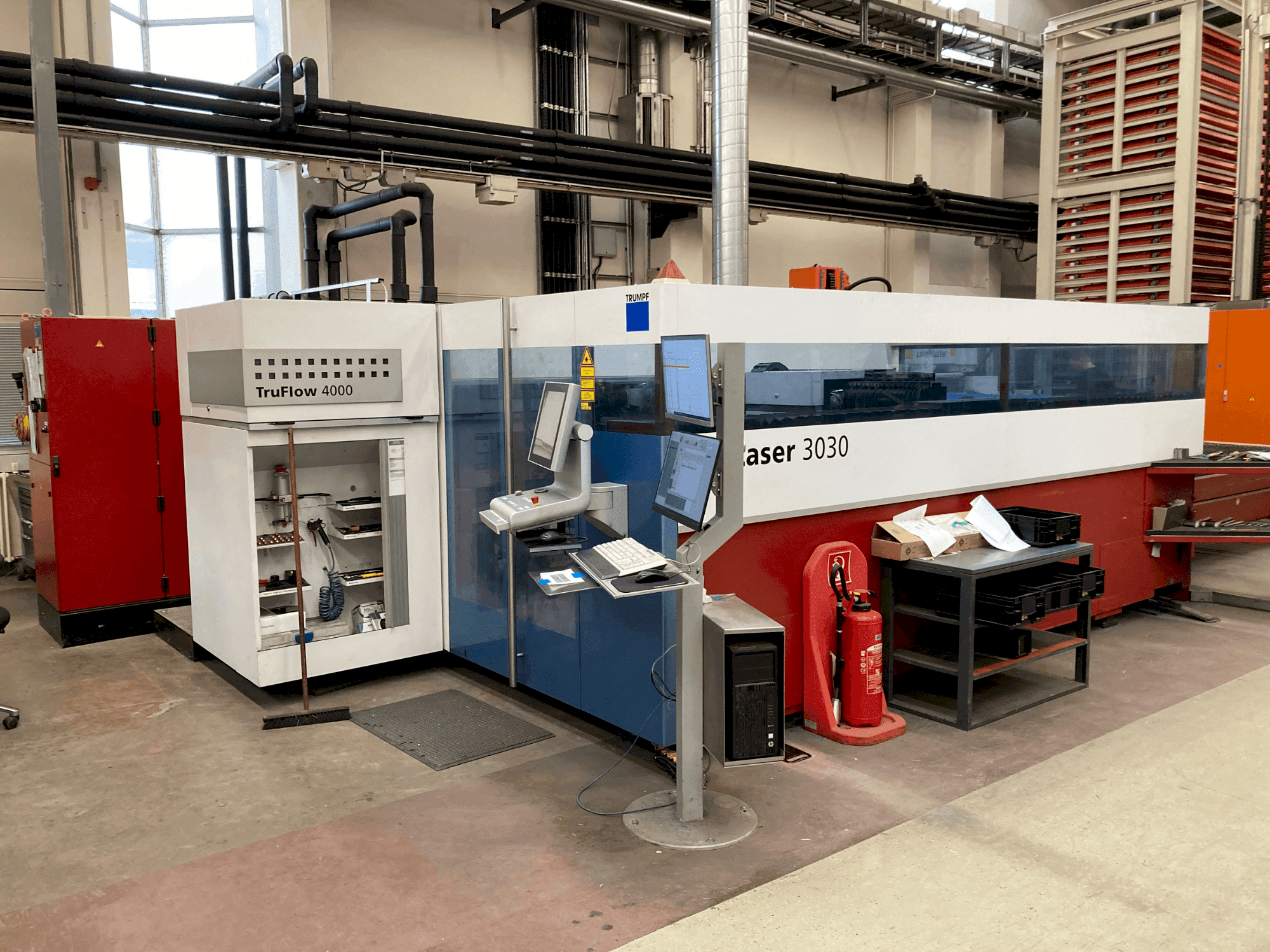

Front view of TRUMPF TruLaser 3030 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruLaser 3030

Photo Gallery

TRUMPF - TruLaser 3030DE-CUT-TRU-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TruLaser 3030 | For Sale

Show in original language

This 3-axis TRUMPF TruLaser 3030 was manufactured in 2012. It features a Siemens Sinumerik 840D SL control system and a Trumpf TruFlow 3200 laser with 3200W power. Capable of cutting mild steel up to 20mm, stainless steel up to 12mm, and aluminium alloy up to 8mm. Includes FocusLine, NitroLine, PlasmaLine, and a cooling unit. Ideal for high-speed precision cutting with a maximum speed of 140m/min. Contact us for further details regarding this co2 laser cutting machine.

Overview

brand: TRUMPF
year: 2012
MODEL: TruLaser 3030
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

General Data

Measurements width: 4600 MM
Measurements depth: 9300 MM
Measurements height: 2200 MM
Machine weight: 12000 KG

Control Unit

Model: Sinumerik 840D SL
Brand: SIEMENS

Main drive

Laserpower: 3200 W KW

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm (reduced by 25 mm with automation)

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Additional Equipment

- PerceLIne
- FocusLine
- NitroLine
- PlasmaLine
- Cooling unit

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High simultaneous speed of 140 m/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
