➤ Used TRUMPF TruLaser Cell 7040 For Sale | gindumac.com

Show in original language

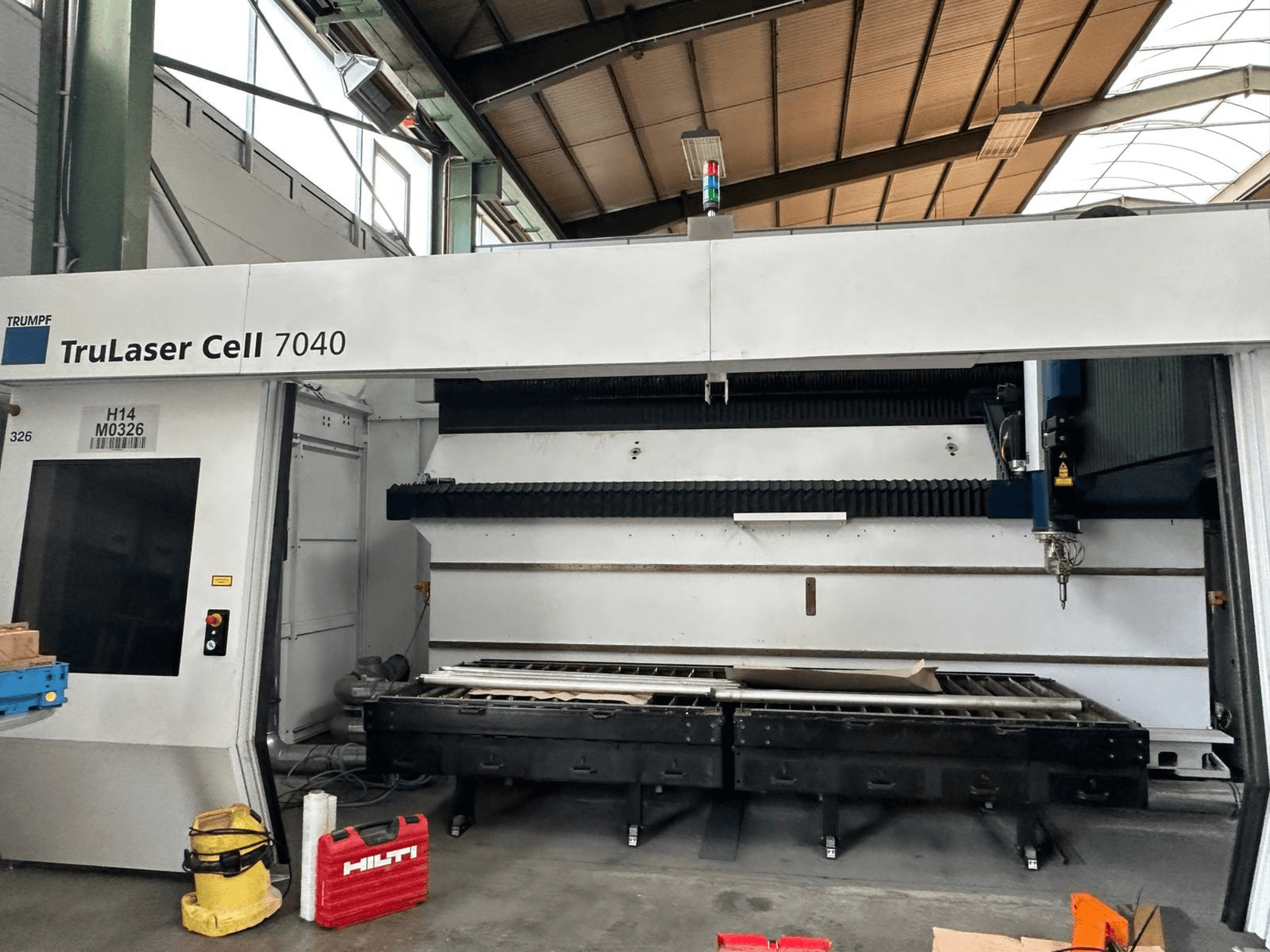

This 5-axis TRUMPF TruLaser Cell 7040 was manufactured in 2008. It features a powerful 6 kW fiber laser and a spacious table with dimensions of 3900 x 1500 mm. The machine is equipped with advanced Siemens 840D control for precision cutting. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TruLaser Cell 7040 machine we have for sale. Contact us for further details.

Overview

brand: TRUMPF
year: 2008
MODEL: TruLaser Cell 7040
production hours: 21756
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser Cell 7040

Control Unit

Control Brand: SIEMENS
Control Model: 840D

Dimensions

Table Length: 3900 mm
Table Width: 1500 mm

Movement

Number of Axes: 5
X-axis Travel: 4000 mm
Y-axis Travel: 1500 mm
Z-axis Travel: 750 mm

Technical Specification

Laser Power: 6 kW

Additional Information

- Laser Source Type: Fiber laser

- Mains Voltage: 400 V

- Frequency: 50 Hz

- Connected Load: 104 kVA

- Control Voltage: 24 V=

- Required Fuse Protection: 3 x 200 A

- Compressed Air Connection: 6 - 14 bar

- Nitrogen Connection (N2): 30 bar

- Oxygen Connection (O2): 16 bar

- Laser Hours: 79,361 h

- Beam Hours: 21,756 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
