NUKON - Fiber Laser Extreme 30250DE-CUT-NUK-2021-00001

Name: NUKON Fiber Laser Extreme 30250
Brand: NUKON
SKU: DE-CUT-NUK-2021-00001
Price: 530000 EUR
Availability: InStock

530,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used NUKON Fiber Laser Extreme 30250 | Laser Cutting

Show in original language

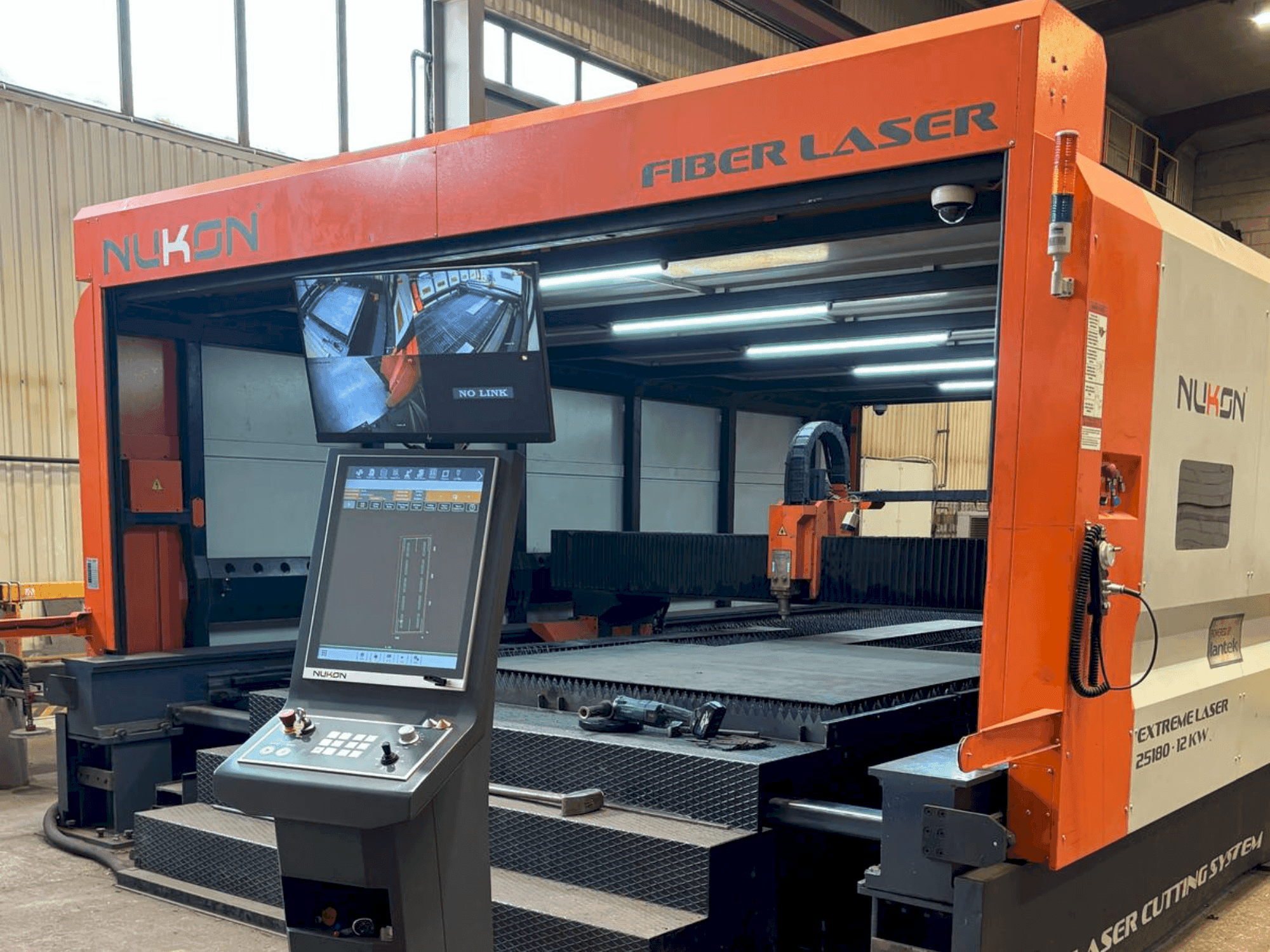

This 5-axis NUKON Fiber Laser Extreme 30250 was manufactured in 2021. It features a 12 kW fiber laser, Beckhoff CNC control system, and a maximum sheet size of 2,500 x 12,000 mm. The machine supports speeds up to 50 m/min and includes a servo drive system. Consider the opportunity to buy this NUKON Fiber Laser Extreme 30250 fiber laser cutting machine. Contact us for more information about this machine.

Overview

brand: NUKON
year: 2021
MODEL: Fiber Laser Extreme 30250
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine
availability: Immediately
control unit brand: BECKHOFF

Technical Information - NUKON Fiber Laser Extreme 30250

General Data

Machine weight: 35900 kg

Control Unit

Brand: BECKHOFF
Model: n/a

Main drive

Number of axis: 5

Movement

X-AXIS Rapid traverse: 50 m/min
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Rapid traverse: 160 mm/min
W-Axis Rapid traverse: 50 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Noise emission: 60 db
- - Control system: beckhoff cnc
- - Display: 19" tft standard screen
- - Control console: all functions can be controlled from the panel
- - Interface: ethernet
- - Drive type: servo
- - Repeatability: ± 0. 35 mm (over 500 mm)
- - Rotary axis (rotational axis): 160 rpm
- - Acceleration (x, y, z): 1. 5 g
- - Positioning accuracy: ± 0. 35 mm (over 500 mm)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
