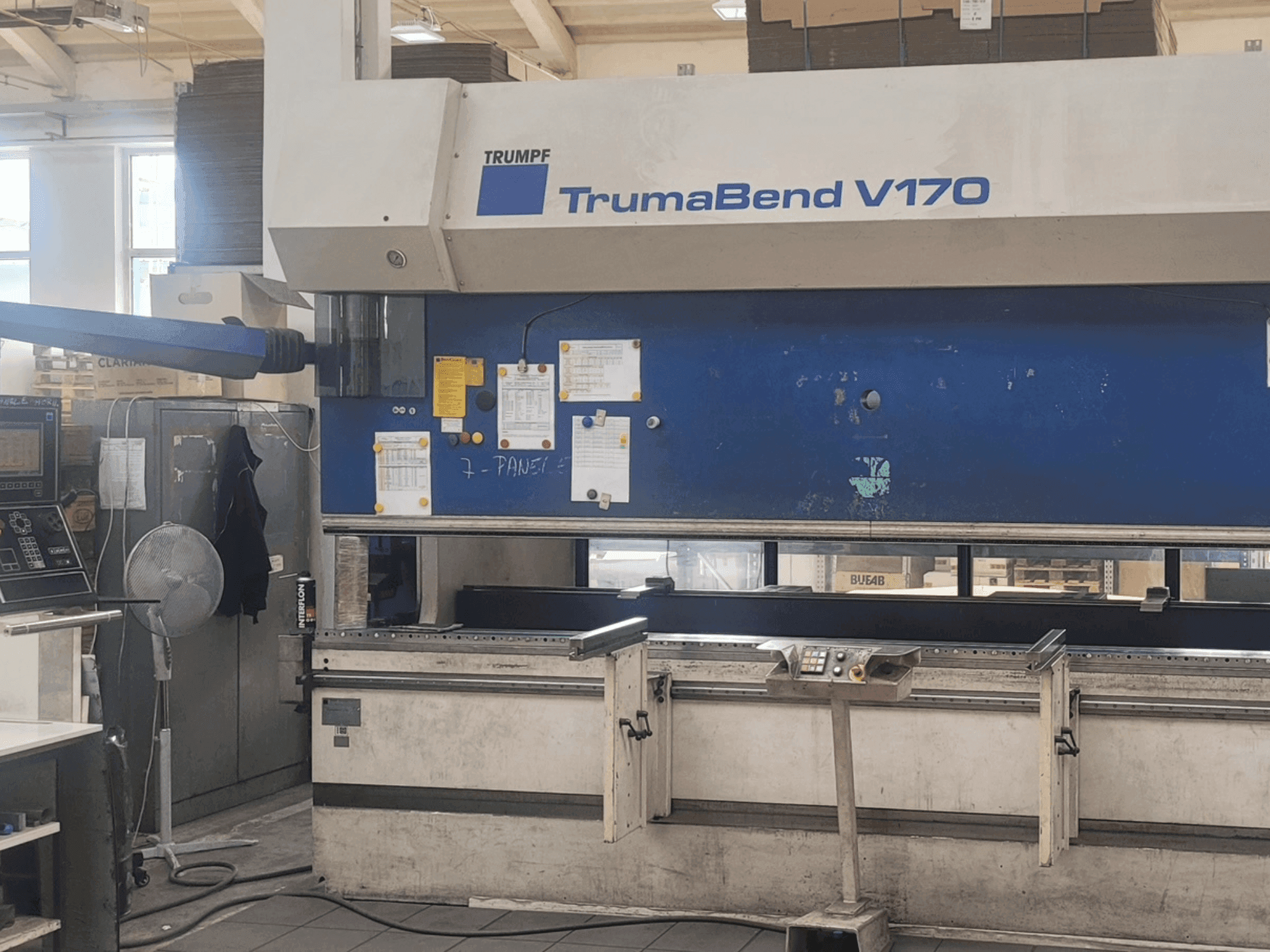

This 8-axis TRUMPF TrumaBend V170 press brake was manufactured in 2003. It features a pressing force of 1700 kN, a stroke of 365 mm, and a maximum bending length of 4080 mm. The distance between columns is 3680 mm. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V170 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: TRUMPF
- year: 2003
- MODEL: TrumaBend V170
- production hours: 57202
- application type: Bending
- Location: Slovakia
- machine type: Press Brake
- control unit brand: TRUMPF
Technical Information - TRUMPF TrumaBend V170
Control Unit
- Control Brand: TRUMPF
Dimensions
- Machine Depth: 5000 mm
- Machine Height: 3100 mm
- Machine Weight: 18000 kg
Movement
- Number of Axes: 8
Technical Specification
- Bending Length: 4080 mm
- Max. Stroke: 365 mm
- Pressing Force: 1700 Kn
Additional Information
Machine Benefits
Technical Machine Benefits
- Distance between column: 3680 mm
- Distance beam - table: 535 mm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
