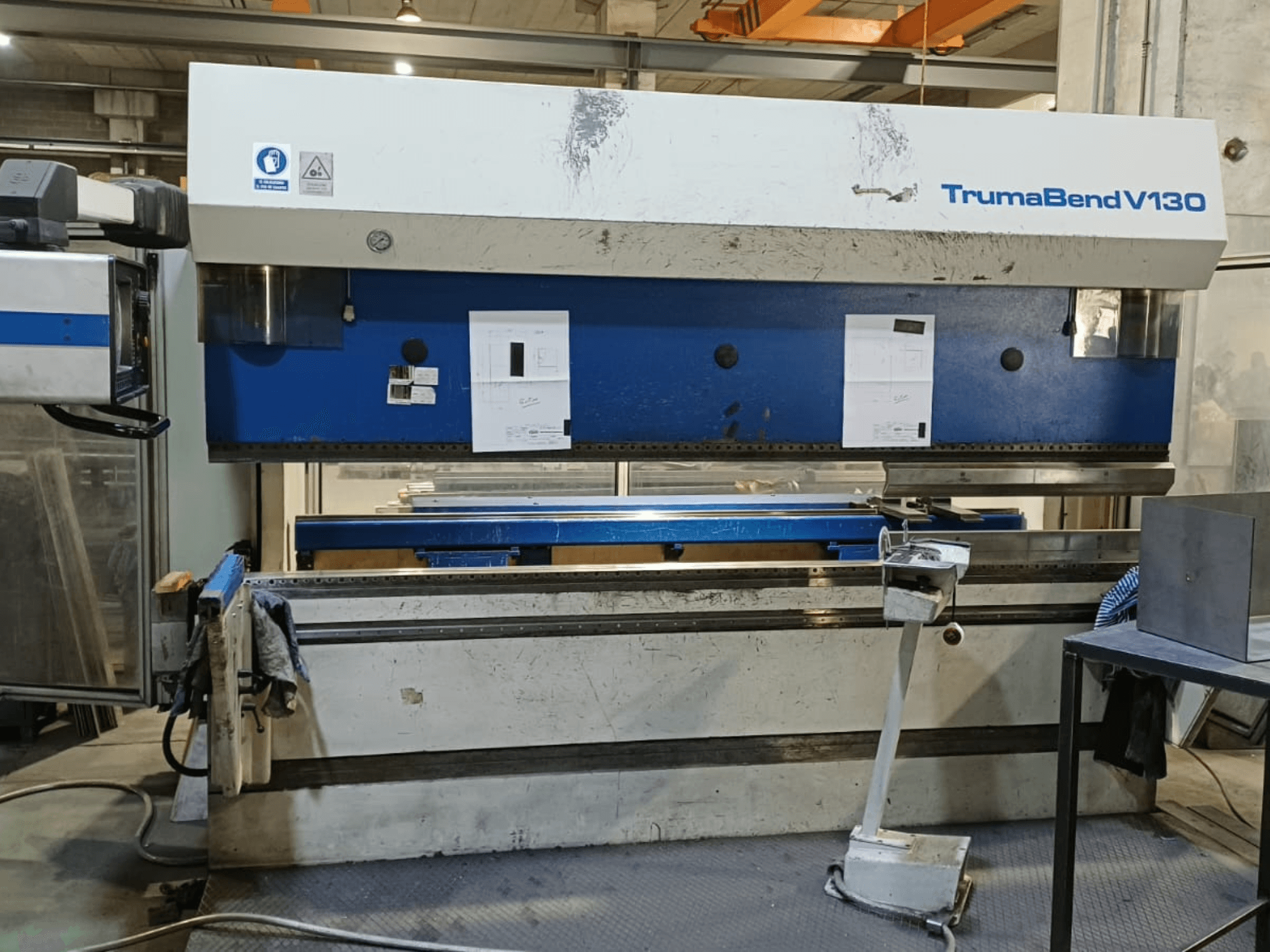

TRUMPF - Trumatic Trumabend V130ES-BEN-TRU-1998-00001

Distance between columns: 2,690 mm

Throat: 410 mm

Table width: 120 mm

Mounting height: 385 mm (standard) / 535 mm (extended height)

Working height: 1,050 mm

Y-axis:

• Rapid speed: 200 mm/s

• Working speed: 1–10 mm/s

• Return speed: 135 mm/s

• Stroke: 215 mm (standard) / 365 mm (extended height)

• Positioning accuracy: 0.01 mm

X-axis:

• Max gauge range: 860 mm

• Travel: 600 mm

• Positioning accuracy: 0.04 mm

• Feed rate: 500 mm/s

R-axis:

• Travel: 250 mm

• Positioning accuracy: 0.08 mm

• Feed rate: 300 mm/s

Z-axis:

• Travel: 2,310 mm

• Positioning accuracy: 0.06 mm

• Feed rate: 1,000 mm/s

Electrical system power: 18.7 kW

Pneumatic system pressure: 6 ± 1 bar

Hydraulic oil capacity: not specified
