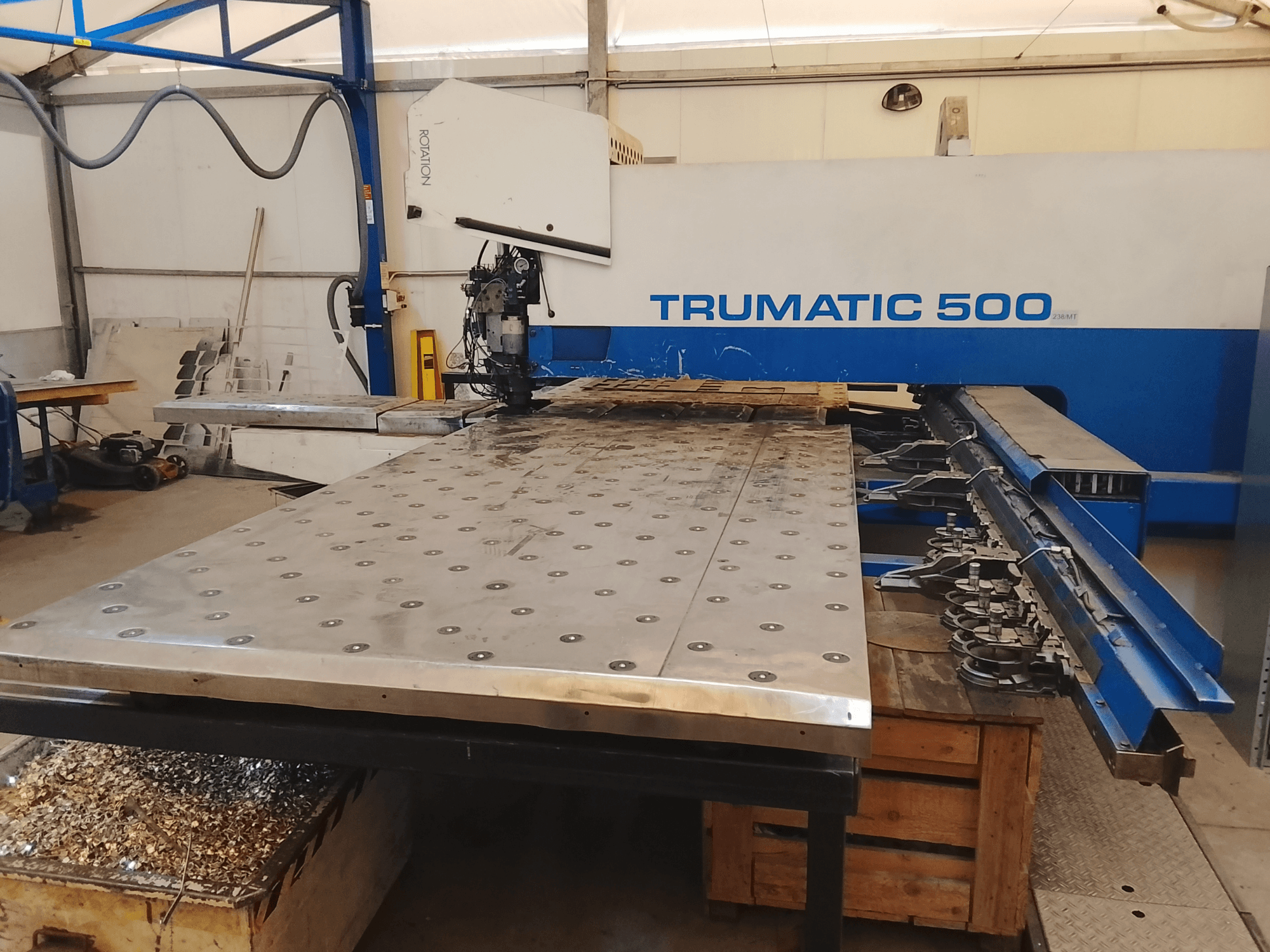

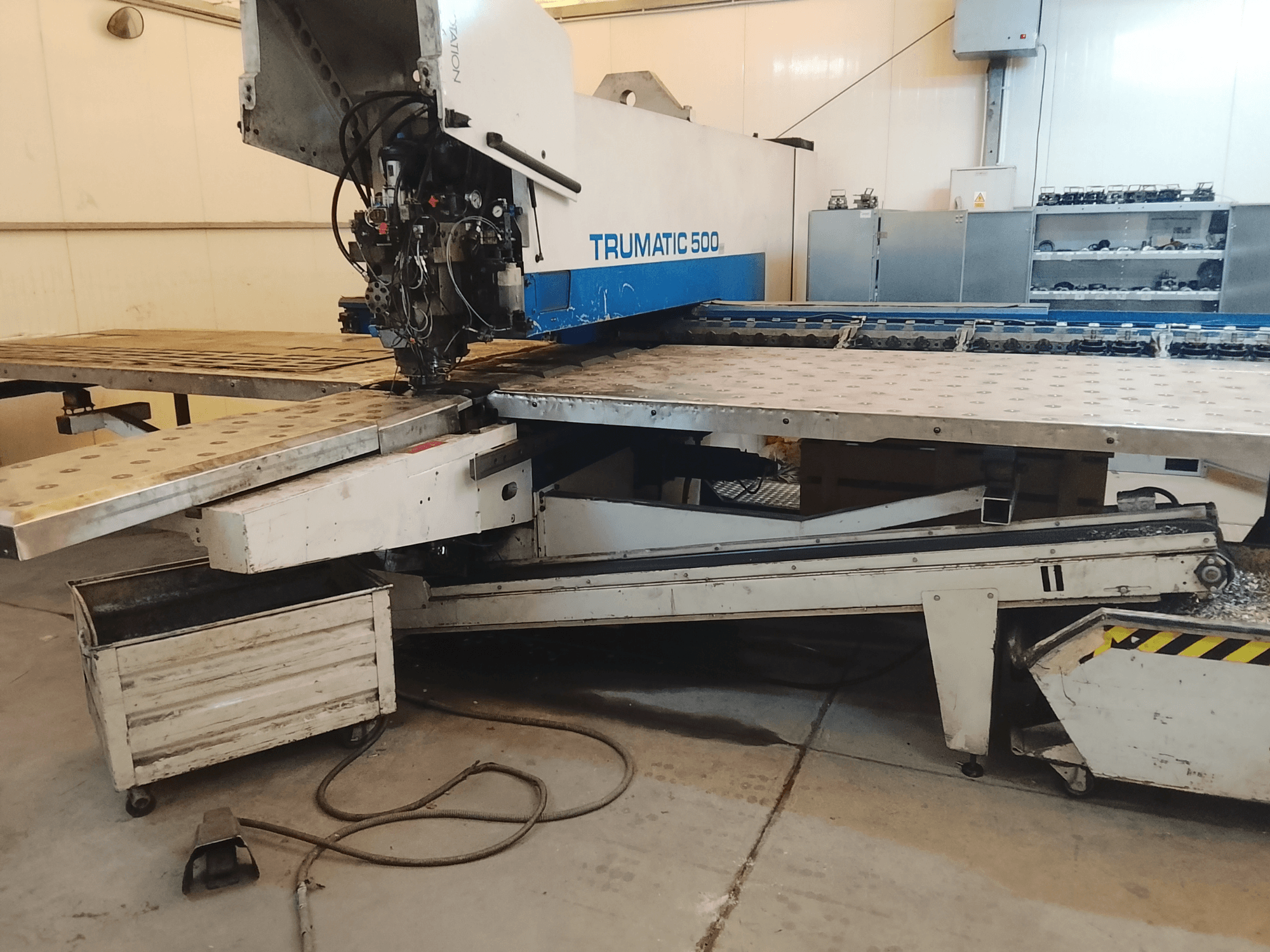

This TRUMPF TRUMATIC 500 was manufactured in 1998. It features a maximum punching force of 220 kN and can handle sheet thicknesses up to 6 mm. The machine accommodates workpieces up to 150 kg, with a working range of 3000 mm on the X-axis and 1500 mm on the Y-axis. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 1998
- MODEL: TRUMATIC 500
- application type: Punching
- Location: Poland
- machine type: CNC Punching Machine
- control unit brand: TRUMPF
Technical Information - TRUMPF TRUMATIC 500
Control Unit
- Control Brand: TRUMPF
Dimensions
- Machine Depth: 6000 mm
- Machine Height: 2300 mm
- Machine Length: 6900 mm
- Machine Weight: 13800 kg
- Table Length: 1500 mm
- Table Load: 100 kg
- Table Width: 3000 mm
Technical Specification
- Max. Sheet Thickness: 6 mm
- Punching Force: 220 Kn
Additional Information
Maximum punching force: 220 kN (approx. 22 t)
X-axis working range: 3000 mm without repositioning
Y-axis working range: 1500 mm
Maximum sheet thickness (steel): 6 mm
Maximum punching diameter: 76.2 mm
Maximum workpiece weight: 150 kg
X-axis speed: up to 90 m/min
Y-axis speed: up to 60 m/min
Stroke rate: up to 900 strokes/min in nibbling mode
Power supply: 400 V / 50 Hz, three-phase
Connected electrical load: approx. 19 kVA
Required compressed air pressure: 6 bar
The machine is in working condition. It includes a large set of punches, dies, and tool holders.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
