TRUMPF - Trupunch1000 S05DE-PUN-TRU-2018-00001

153,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

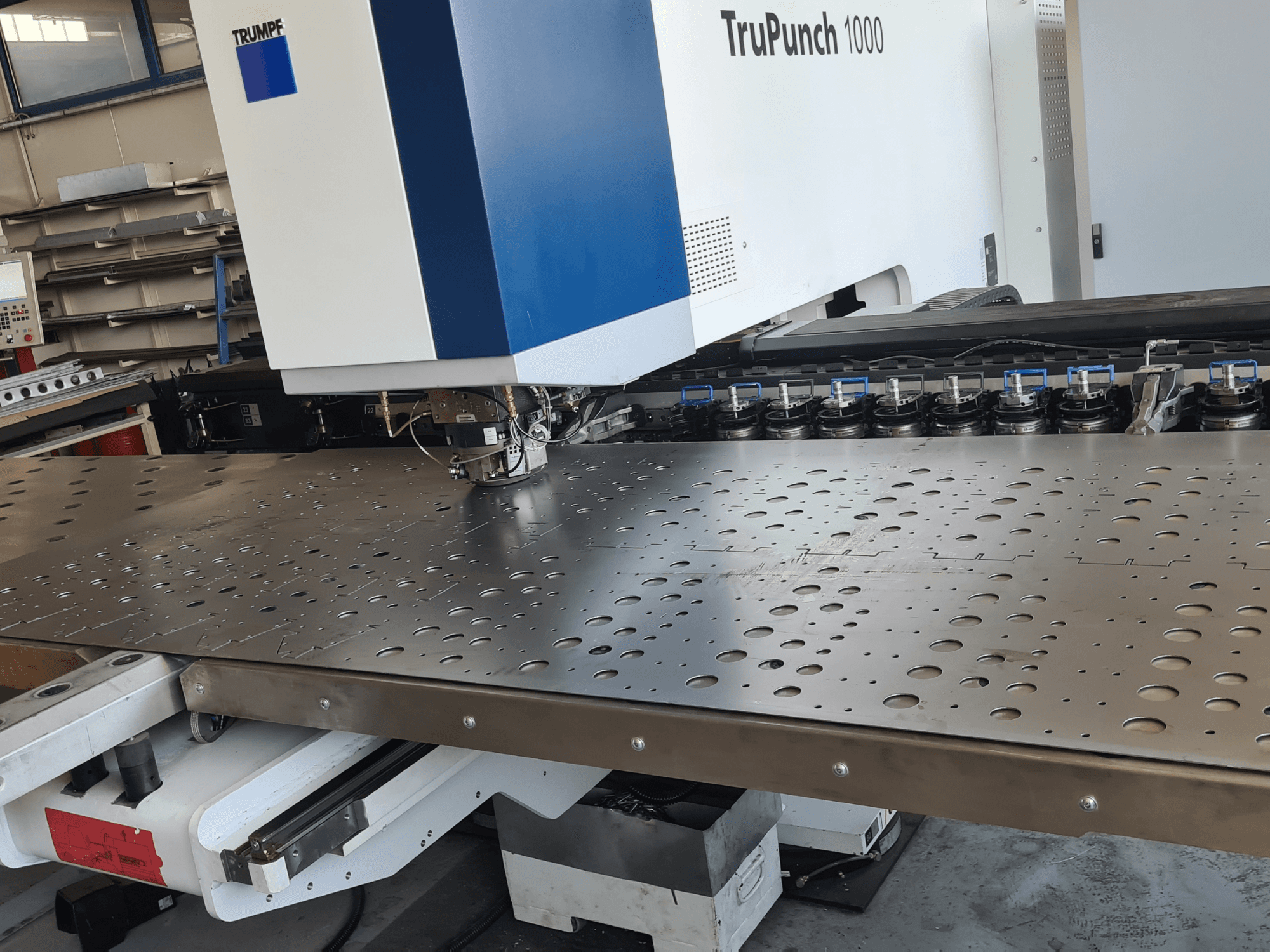

This 3-axis TRUMPF Trupunch1000 S05 was manufactured in 2018. It features a working area of 2500 x 1250 mm and is equipped with maintenance-free three-phase motors. The machine includes a linear magazine with 20 stations for clamps and tools, and an electro-hydraulic punching head with programmable features. If you are looking to get high-quality punching capabilities, consider the TRUMPF Trupunch1000 S05 CNC punching machine we have for sale. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2018
  • MODEL: Trupunch1000 S05
  • application type: Punching
  • Location: Germany
  • machine type: CNC Punching Machine

Technical Information - TRUMPF Trupunch1000 S05

Movement

  • Number of Axes: 3

Technical Specification

  • Max. Sheet Thickness: 6.4 mm
  • Punching Force: 165 Kn

Additional Information

- Working Area: 2500 x 1250 mm (Medium Format)

- Drives: Maintenance-free three-phase motors

- Frame: C-frame

- Tool Storage: Linear magazine with 20 stations for clamps and tools

- Clamps: 2 hydraulic sheet clamps

- Punching Head: Electro-hydraulic punching head, rotating mono-tool adapter, programmable stripper position, tool length compensation, slug extraction

- Functions: Forming, MultiTool, MultiBend, Thread forming with tap breakage control, Signing / fast beading

- Control: TRUMPF control based on Rexroth IndraMotion MTX

- Interface: USB interface, RJ45 network connection, Wireless Operation Point (VOS basis)

- Table Type: Ball table with brush inserts

- Safety: CE marking, multi-beam light barriers, rapid drive shutdown

- Frequency: 50 Hz

- Voltage: 400 V

- Included Accessories: 18 original Trumpf tool cassettes (including 10 RTC-cassettes 2017 with die plates from original order), extensive selection of punching tools, and a Trumpf "quicksharp" punch grinding machine (YOM 89)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
