TRUMPF Trumatic L3030

Name: Trumpf Trumatic L3030
Brand: TRUMPF
SKU: DE-LAS-TRU-2002-00002
Price: 12000 EUR
Availability: InStock

Photo Gallery

12,000 €

gindumac price

(Ex works)

Get an official quote

TRUMPF - Trumatic L3030

2002

12,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

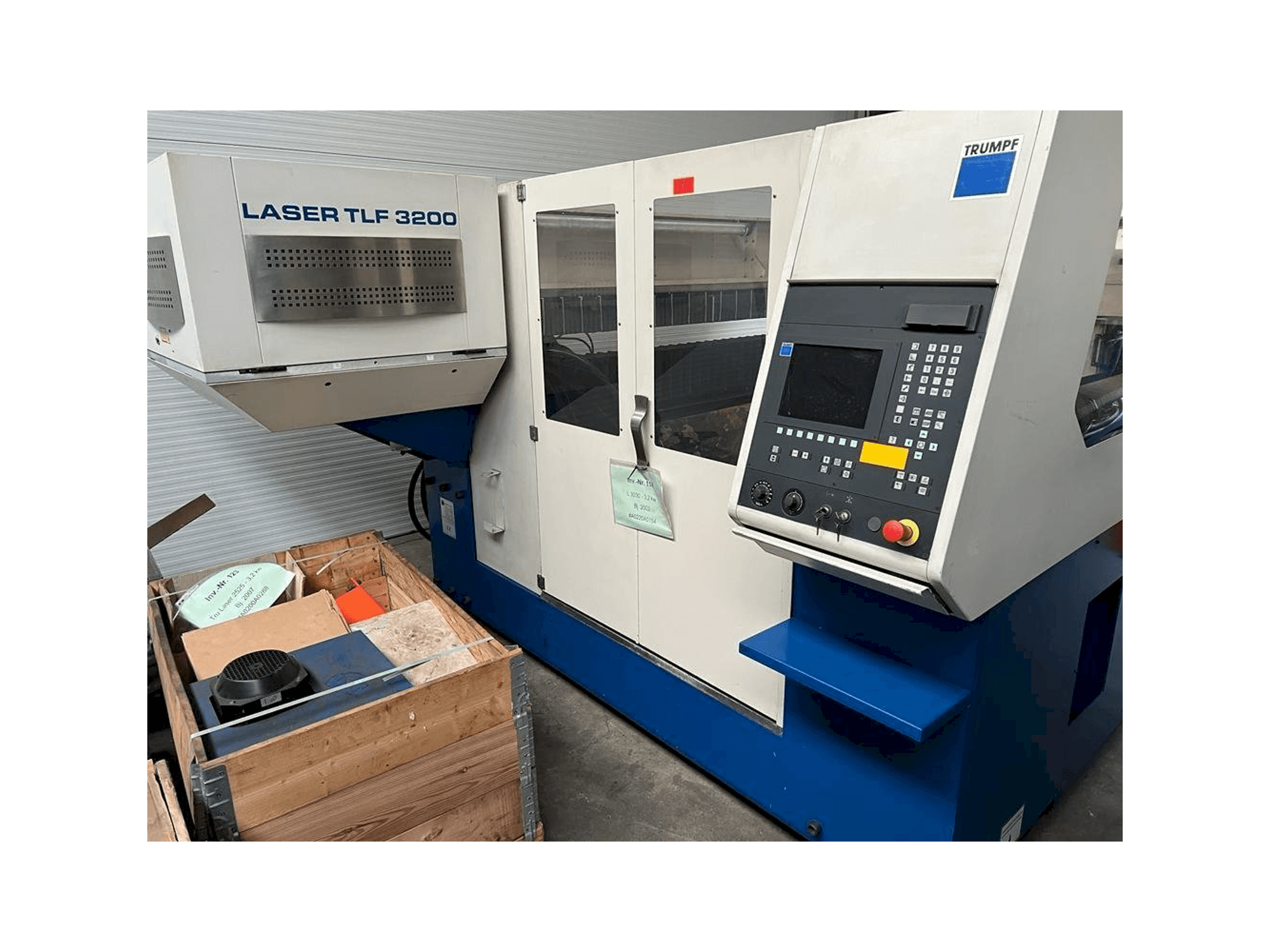

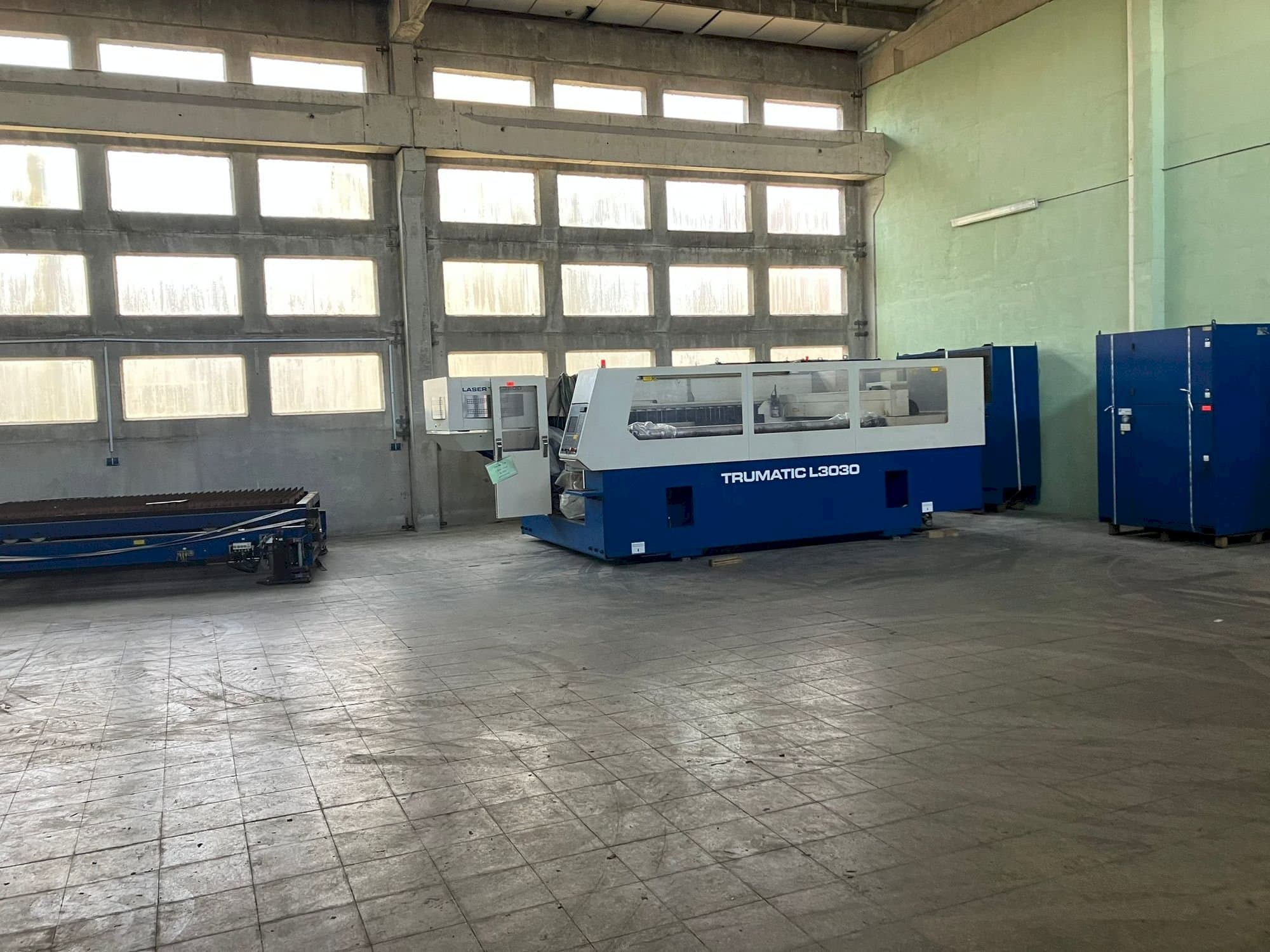

Trumpf Trumatic L3030 laser cutting machine

Show in original language

This Trumpf Trumatic L3030 laser cutting machine was manufactured in the year 2002 and has 31787 hours, of which 14813 are laser beam emission time. It is equipped with a Siemens Sinumerik 840D control unit. The machine has a laser power of 3,2 kW.

Overview

brand: TRUMPF
year: 2002
MODEL: Trumatic L3030
production hours: 31787
application type: Laser Cutting
Location: Germany
machine type: Laser Cutting Machines (CO2)
availability: Immediately
control unit brand: Siemens
GINDUMAC ID: DE-LAS-TRU-2002-00002

Technical Information

General Data

Measurements width: 9800 mm
Measurements depth: 5300 mm
Measurements height: 2000 mm
Machine weight: 19000 kg

Control Unit

Brand: Siemens
Model: Sinumerik 840D

Main drive

Laserpower: 3,2 kw
Laser type: CO2

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 10 mm

Media

Main electronic connection: 400 V; 50 Hz
Power consumption: 73 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed speeds in thex/y/z axis: 3104/1580/122 mm
- - Positioning speed parallel to the axis: 60 m/min
- - With simultaneous operation of the drives of the x and y axes: 85 m/min
- - Shaft length: 10,6
- - Compressed air supply: 6 bar
- - Nitrogen supply n2: 30 bar
- - Oxygen port 02: 20 bar
- - Pallet changing system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
