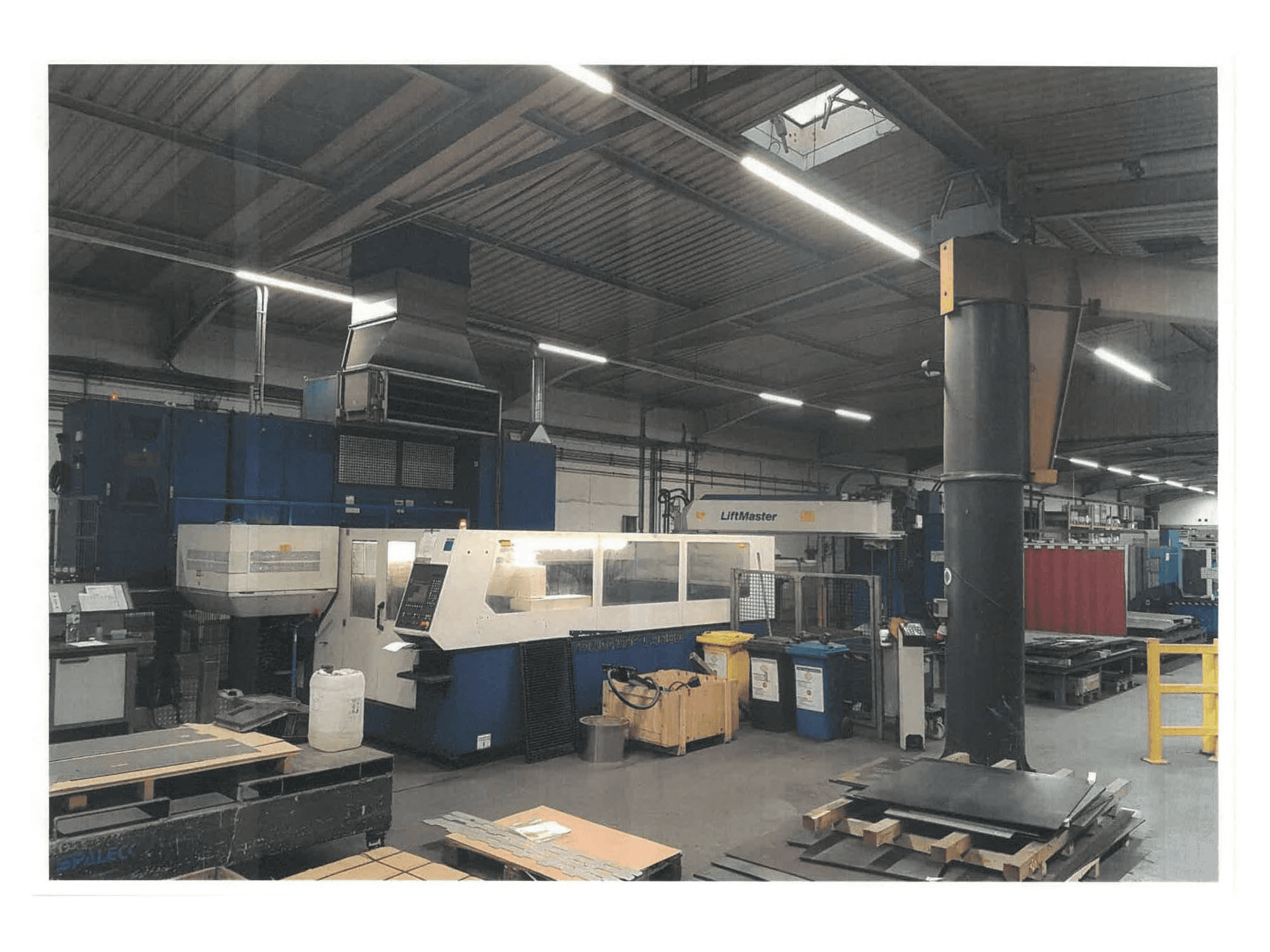

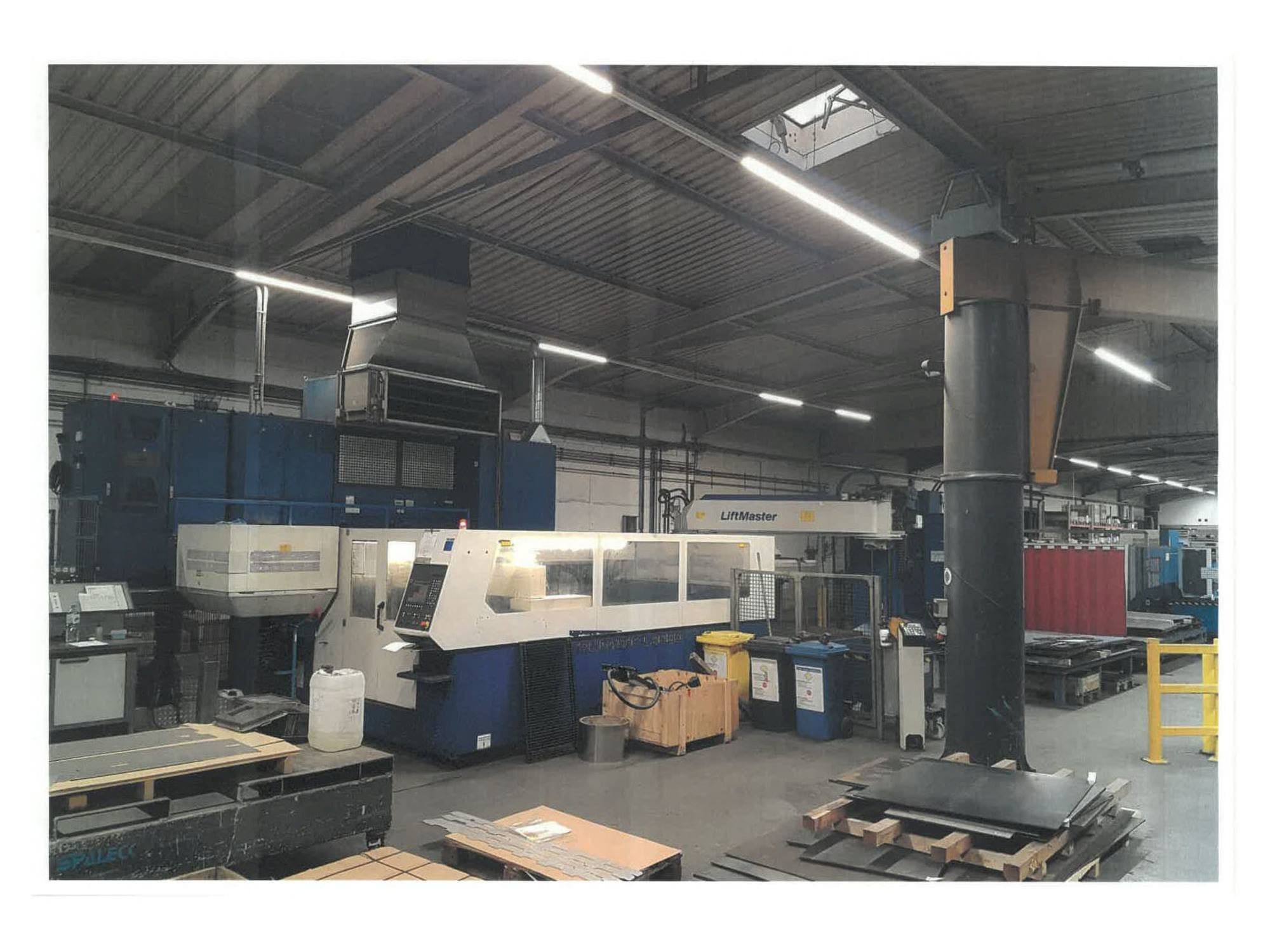

This TRUMPF Trumatic L3030 Laser Cutting machine was manufactured in the year 2005 and has 92004 production hours, of which 46380 are cutting hours. It is equipped with a Siemens Sinumerik 840 D control unit. The machine has a laser power of 3 kW.
Overview
- brand: TRUMPF
- year: 2005
- MODEL: Trumatic L3030
- production hours: 92004
- application type: Laser Cutting
- Location: Germany
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: Siemens
Technical Information - TRUMPF Trumatic L3030
Control Unit
- Brand: Siemens
- Model: Sinumerik 840 D
Main drive
- Laserpower: 3 kW
- Laser type: CO2
Workpiece
- Workpiece weight: 900 kg
Table
- Outer length: 3000 mm
- Outer width: 1500 mm
Additional Information
- Technical Machine Benefits:
- - Max. Speed: 135 m/min, cutting speeds up to 15 m/min
- - Cutting head: universal cutting head
- - Feeding: automatic pallet changer (liftmaster)
- - Incl. Unloading rake and suction frame up to 900 kg
- - Material supply: automatic via sheet storage
- - Cutting capacity: mild steel up to 20 mm
- - Stainless steel up to 12 mm
- - Aluminum up to 8 mm
- Qualitative Machine Benefits:
- - Liftmaster included
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
