TRUMPF - Trumatic L3030DE-LAS-TRU-2005-00006
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Sheet Metal Machinery
- TRUMPF Trumatic L3030 (2005) Laser cutting machine

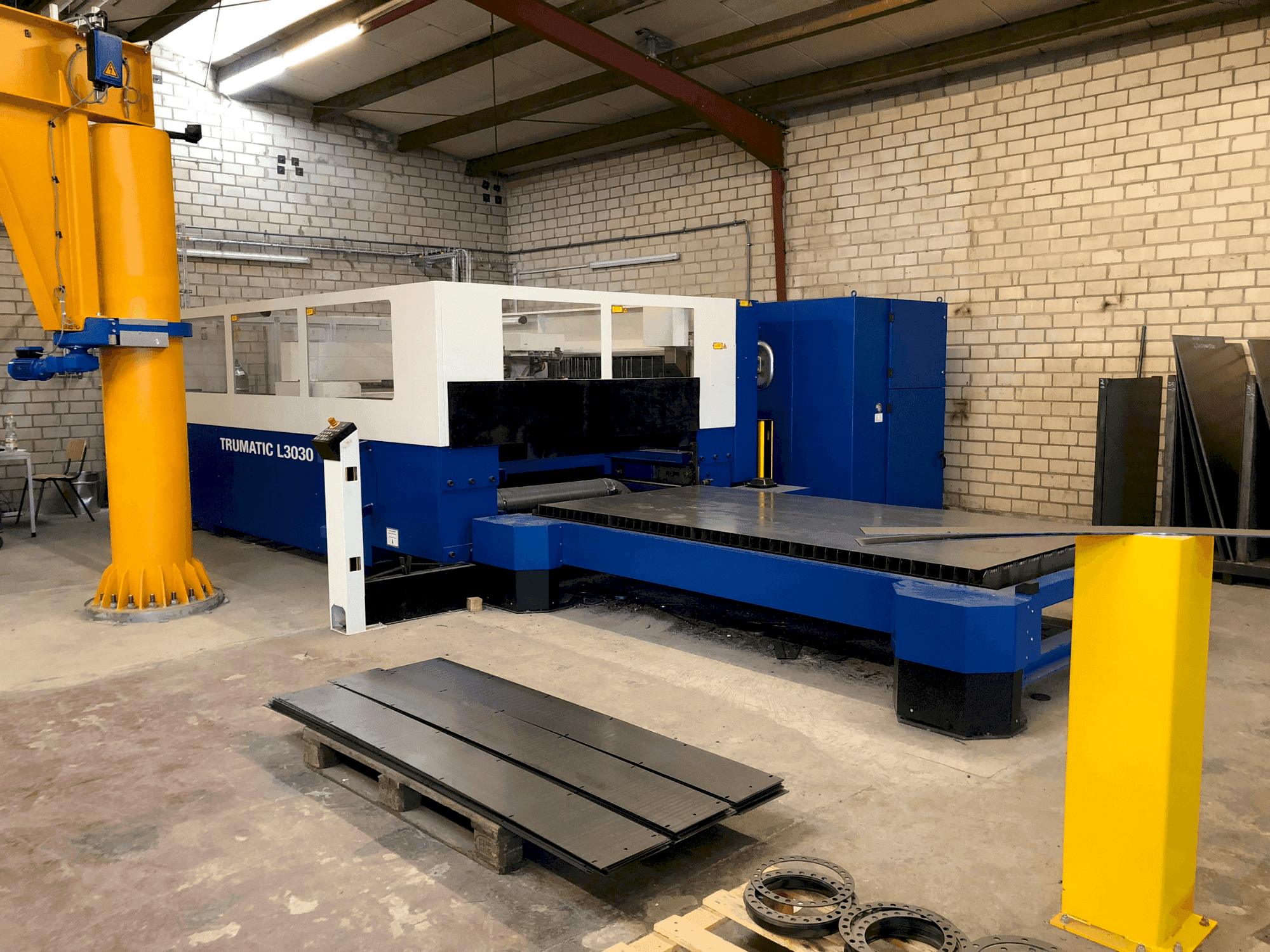

This TRUMPF Trumatic L3030 Laser cutting machine was manufactured in the year 2005 in Germany. Disposes of a TRUMPF TruToPs Laser Software. The Loadmaster is not included.
Overview
- brand: TRUMPF
- year: 2005
- MODEL: Trumatic L3030
- application type: Laser Cutting
- Location: Germany
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
Technical Information - TRUMPF Trumatic L3030
Main drive
- Laserpower: 3,2 kW
Additional Information
- Technical Machine Benefits:
- - Standard equipment: hi-las high-pressure cutting, laser cutting head with 5'', lens laser cutting head with 7. 5'', position laser diode, microweld, pms plasma sensor system, capacitive height control (dias iii), contourlas, autolas plus, oil spray device, autom. Pallet changer, longitudinal conveyor for small parts/waste, tops 100 lite, rj 45 network connection, 3. 5'' floppy disk drive
- - Tightening torque of the tie rods: trulaser 3030 70-5nm, pallet changer 85 -5 nm
- - Weight load trulaser : basic machine 27 kn load - area per x:140mm x y:95mm, pallet changer load 8 kn - area per x:450mm x y:520mm
- - Programming software:trumpf trutops laser
- - _programming system for 2d laser machining, efficient and reliable nc programs for trulaser machines
- - The Loadmaster is not included.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
