Victor - Vturn-20NL-TUR-VIC-1997-00001

Name: Victor Vturn-20
Brand: Victor
SKU: NL-TUR-VIC-1997-00001
Price: 9000 EUR
Availability: InStock

9,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Victor Vturn-20 For Sale | gindumac.com

Show in original language

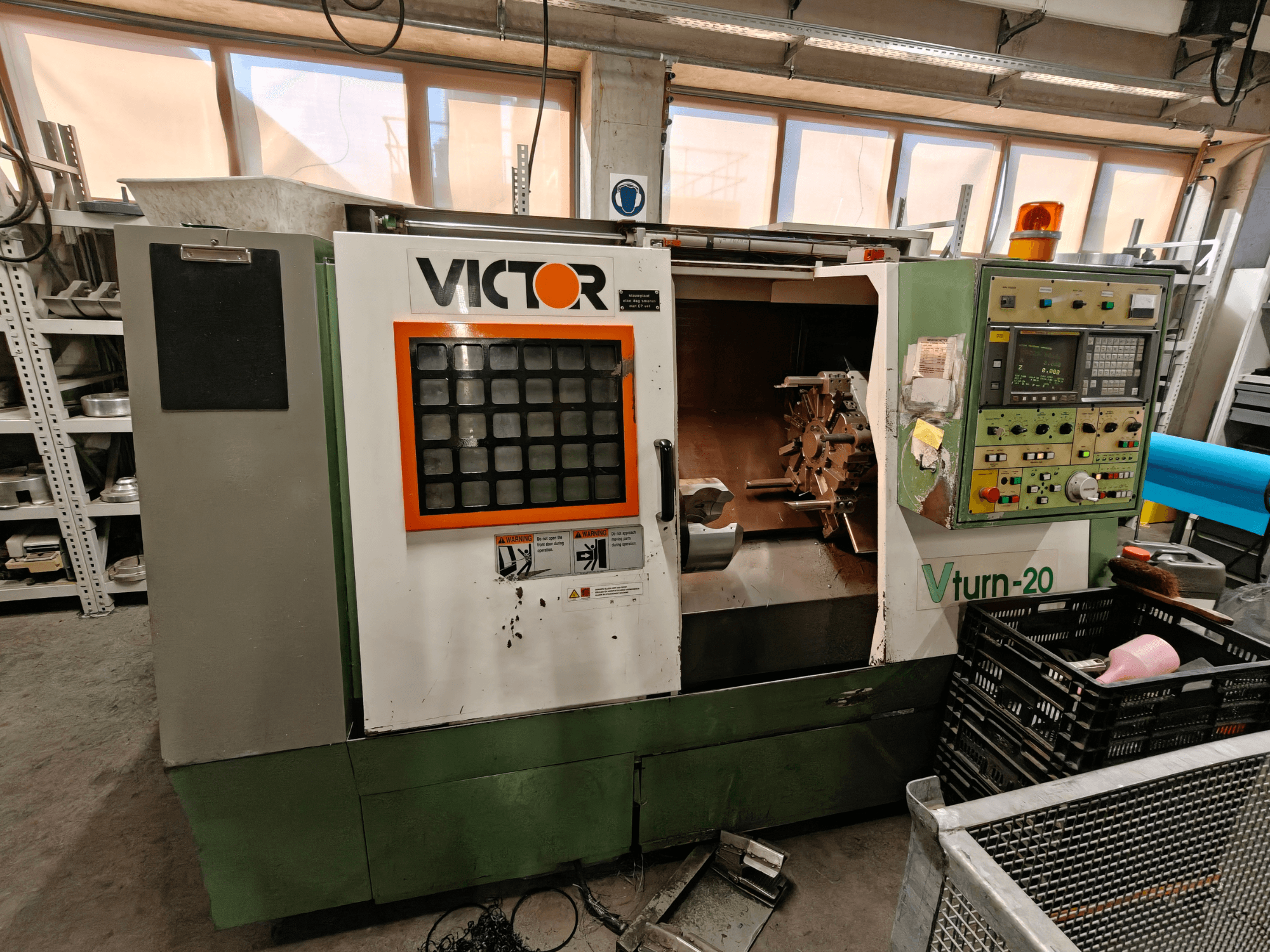

Horizontal turning machine manufactured in 1997. This Victor Vturn-20 features a maximum longitudinal travel of 600 mm and a standard turning diameter of 200 mm. It includes a turret with 10 tool positions and a spindle speed range of 42-4200 RPM. If you are looking to get high-quality turning capabilities, consider the Victor Vturn-20 machine we have for sale. Contact us for further details.

Overview

brand: Victor
year: 1997
MODEL: Vturn-20
production hours: 1601
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
Available from: 31/10/2026
control unit brand: FANUC

Technical Information - Victor Vturn-20

Control Unit

Control Brand: FANUC
Control Model: Series O-T

Dimensions

Machine Height: 1650 mm
Machine Length: 3290 mm
Machine Weight: 3300 kg
Machine Width: 1500 mm

Movement

Number of Axes: 2
X-axis Travel: 135 mm
Z-axis Travel: 600 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 4200 RPM
Tool Stations: 10

Additional Information

Swing over bed/front cover: 450 mm
Standard turning diameter: 200 mm
Swing over carriage: 300 mm
Rapid feed: X 12 m/min, Z 15 m/min
Spindle nose: A2-6
Hole through spindle: 62 mm
Spindle bearing diameter: 100 mm
Spindle inside taper: 1/20
Turret tool positions: 10
Standard O.D. tool size: 20 mm
I.D. tool size (max): 32 mm
Tailstock quill diameter: 75 mm
Tailstock quill stroke: 80 mm
Tailstock quill taper (built-in): MT4
Center distance: 635 mm
Spindle motor (continuous/30 min): AC 10 HP / 12 HP
Feed motor: X 1.4 HP, Z 2.8 HP
Coolant capacity: 87 L

Additional equipment

Hydraulic power chuck: 200 mm (8")
Hole through power chuck tube: 50 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
