- Used Vertical Machining centre Wele AA1365 - 2008 - for sale | gindumac.com

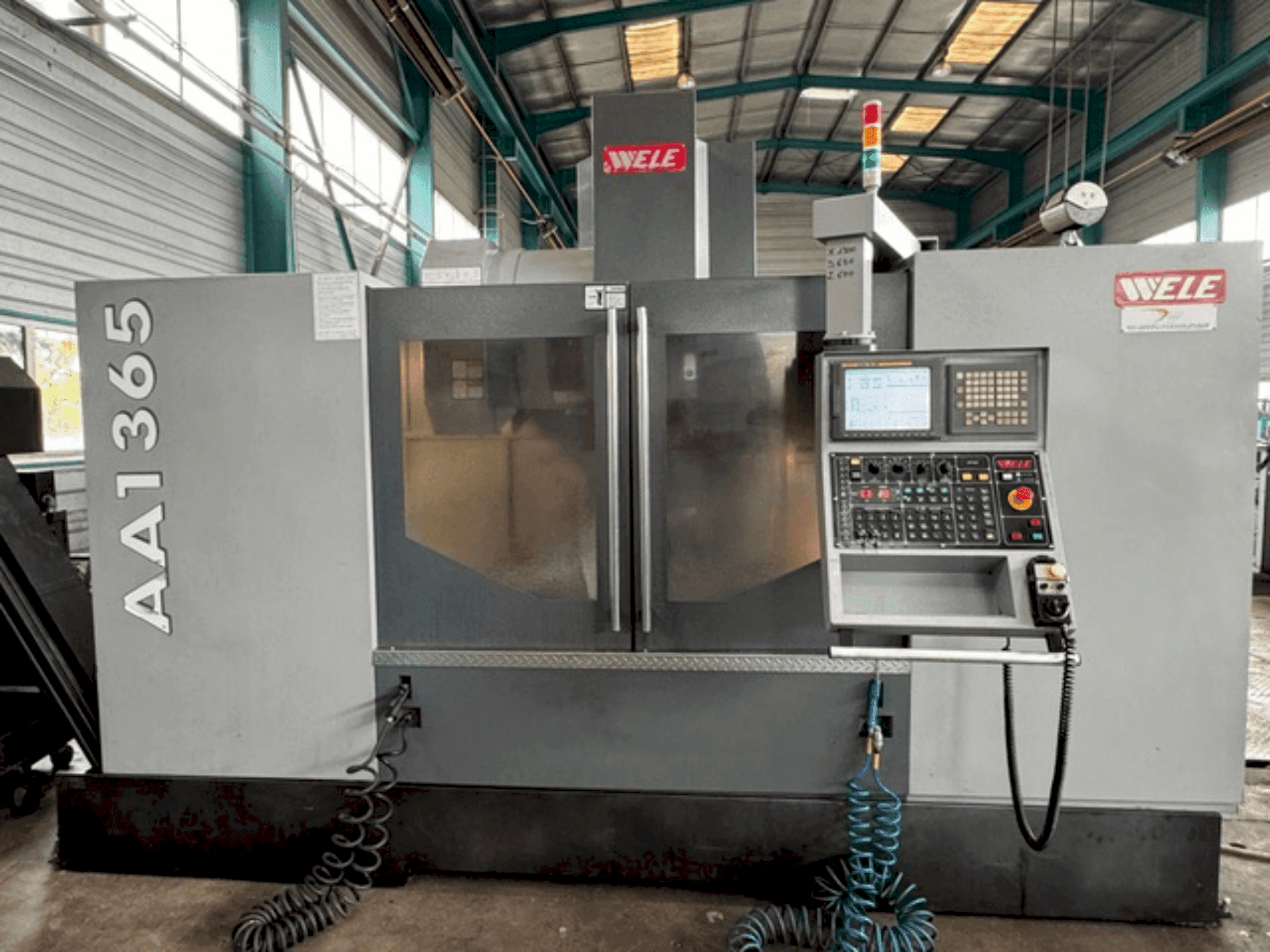

This 3-Axis vertical machine centre was manufactured in 2008. With travels of X1300-Y650-Z600 mm, and a 24-station tool magazine, it ensures efficient machining operations. Equipped with a CNC FANUC 18i-MB system and an electronic handwheel, precision is at the forefront. The 20-bar high-pressure hole trough spindle coolant and spindle cooler enhance performance. With visible operation under power and a set of 70 ER & Weldon collet holders included. Consider this WELE AA1365 machine for versatile machining capabilities. Contact us for further information.
Overview
- brand: Wele
- year: 2008
- MODEL: AA1365
- production hours: 11100
- application type: Milling
- Location: France
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: FANUC
Technical Information - Wele AA1365
General Data
- Measurements width: 2340 mm
- Measurements depth: 3650 mm
- Measurements height: 2940 mm
- Machine weight: 7600 kg
Control Unit
- Brand: FANUC
- Model: 18i-MB
Main drive
- Number of spindles: 1
- Spindle speed range: 8000 1/MIN
- Spindle motor power: 15 KW
- Tool taper: ISO 40
- Number of axis: 3
Movement
- X-AXIS Movement: 1300 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 650 mm
- Y-AXIS Rapid traverse: 20 m/min
- Z-AXIS Movement: 600 mm
- Z-AXIS Rapid traverse: 20 m/min
Table
- Table load: 1300 kg
Tools
- Number of stations: 24
- Type of tool holder: BT40
Media
- Chip conveyor: Yes
Additional Equipment
- - Set of 70 ER & Weldon collet holders, boring bars, milling cutter holders, etc.
Additional Information
- Technical Machine Benefits:
- - Electronic handwheel
- - Table dimensions: 1450x650 mm
- - 2-speed gearbox
- - 20-bar high-pressure hole trough spindle coolant
- - Air-conditioned cabinet
- - Chip conveyor + bucket
- - Spindle cooler
- Qualitative Machine Benefits:
- - Visible under power
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
