WFL - M 100RU-TUR-WFL-1998-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- WFL M 100

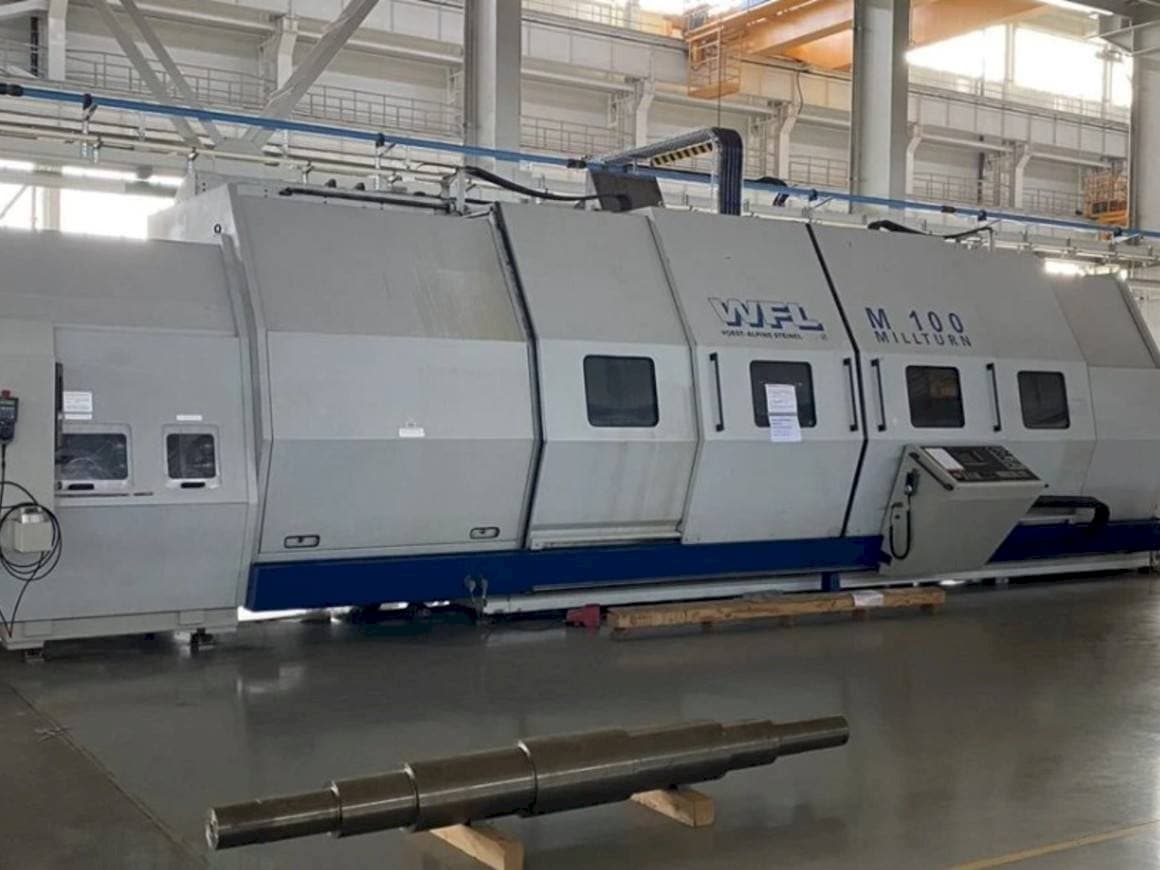

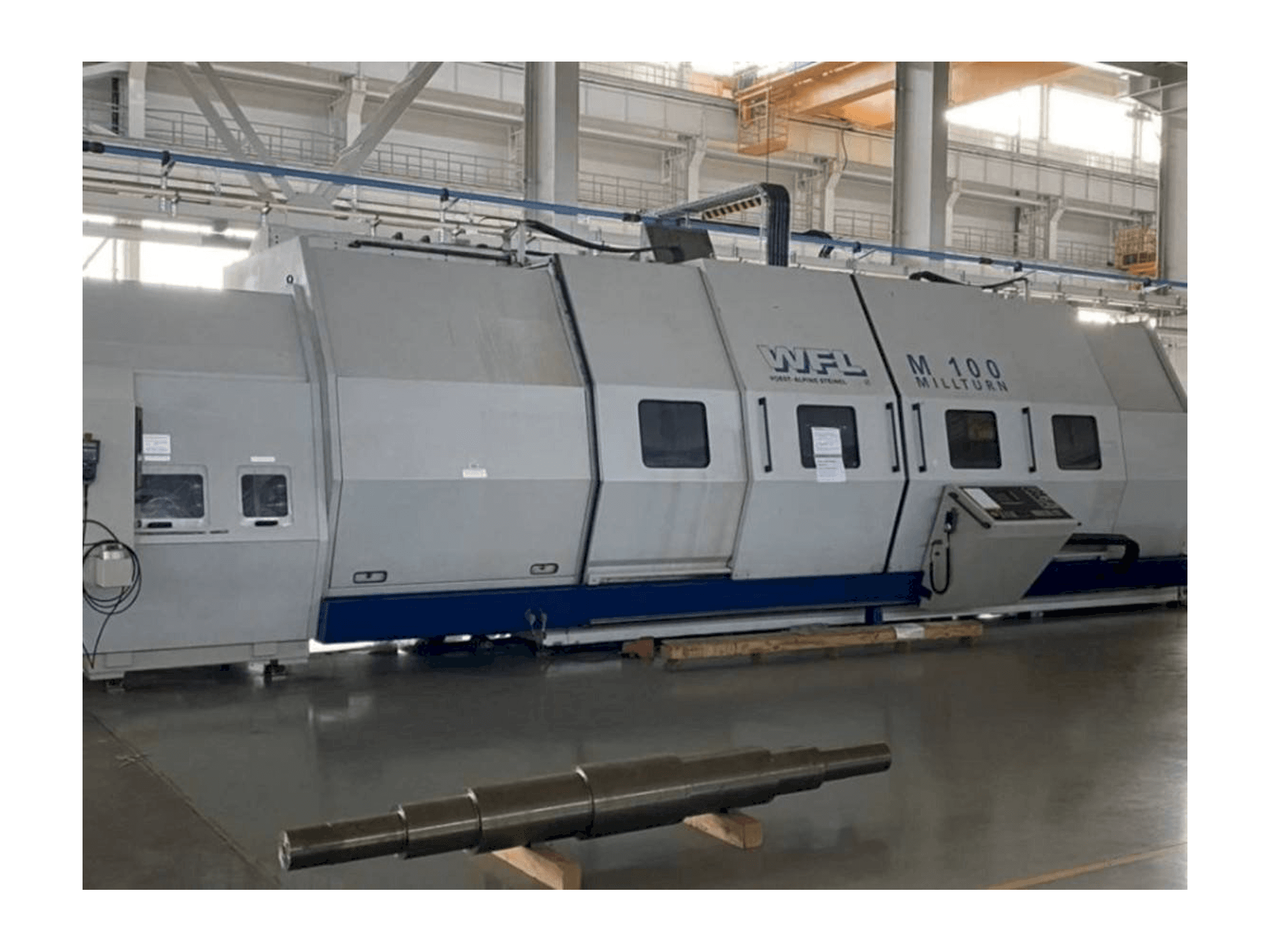

This WFL M 100 Lathe was built in 1998. This 5 axis machine is operated with a Siemens 840C control unit. It can perform with a spindle speed up to 1600 rpm. It stands out for being a Horizontal turning and milling machining center.
Overview
- brand: WFL
- year: 1998
- MODEL: M 100
- application type: Turning
- Location: Russia
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - WFL M 100
General Data
- Machine weight: 35000 Kg
Control Unit
- Model: 840 C
- Brand: SIEMENS
Main drive
- Spindle speed range: 1600 1/MIN
- Spindle motor power: 25 kW
- Spindle bore: 165 mm
- Main motor power: 63 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 900 mm
- Z-AXIS Movement: 5370 mm
Workpiece
- Workpiece drm over bed: 950 mm
Table
- Distance between: 5000 mm
Tail Stock
- Pinol diameter: 180 mm
Additional Information
- Technical Machine Benefits:
- - Tailstock pinole stroke - 200 mm
- - Rmc - 5000 mm
- - The installation diameter above the upper sled is 850 mm.
- - Spindle torque - 300 nm
- - The rotation angle of the axis in - 200 (-110/+90) degrees
- - The diameter of the spindle in the front bearing is 240 mm
- - Spindle bore diameter: 165 mm
- - The number of revolutions of the spindle: 10-4000 rpm
- - Maximum torque - 4724 nm
- - Processing diameter - 900 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
