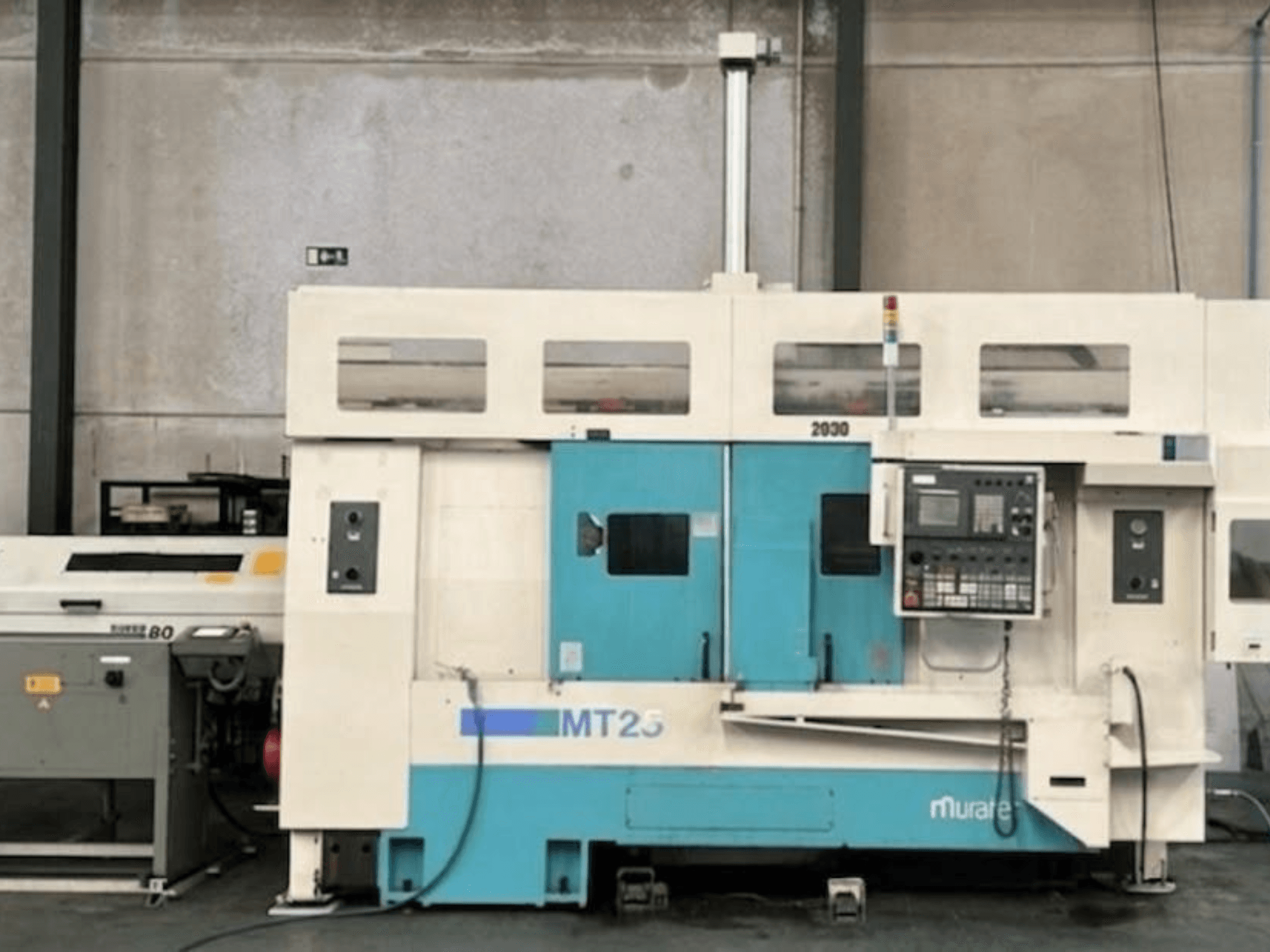

This 8-axis Muratec MT 25 MY was manufactured in 2001. It features a maximum machining diameter of 370 mm and a maximum machining length of 920 mm. The machine is equipped with twin spindles and twin turrets, offering 15 live tooling stations per turret. If you are looking to get high-quality turning capabilities, consider the Muratec MT 25 MY turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: Muratec
- year: 2001
- MODEL: MT 25 MY
- application type: Turning
- Location: Spain
- machine type: Turn-Mill Centre
- control unit brand:
Technical Information - Muratec MT 25 MY
Dimensions
- Machine Weight: 10800 kg
Movement
- Number of Axes: 8
- X-axis Travel: 230 mm
- Z-axis Travel: 250 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 15 kW
- Spindle Speed: 3500 RPM
Additional Information
Configuration: Twin spindle / twin turret / twin Y-axis (9 controlled axes)
Control unit: Fanuc CNC (motors, servos, electronics)
Condition: Currently in operation; immediate delivery
Travels:
X1: 230 mm
X2: 230 mm
Z1: 250 mm
Z2: 700 mm
Y: 100 mm (±50 mm)
Z3 (sub-spindle): 750 mm
Capacity & envelope:
Max machining diameter: 370 mm
Max machining length: 920 mm
Bar capacity: 67 mm
Rapid traverse (X/Z): 20 / 25 m/min
Spindles (twin, identical):
Spindle nose: A2-6
Torque: 420 N·m
Workpiece transfer: Automatic transfer between spindles with torque control
Turrets & tooling capability:
Turrets: 2 (both with Y-axis & C-axis)
Stations: 15 per turret (all live/driven)
Live tooling speed: 3,000 rpm
Live tooling motor: 4 kW
Indexing time: 0.2 s
Build & features:
Guideways: Solid box ways (prismatic) on all axes
Cleaning: Automatic air/coolant blast for sub-spindle cleaning
Monitoring: Load control system and tool wear monitor
Additional equipment
Gantry loader: High-speed 3-axis gantry robot, 8 kg capacity (automatic loading/unloading)
Bar feeder: 1.5 m CNC bar loader
Parts catcher: Automatic swing-arm for small finished parts
Parts conveyor: Integrated conveyor belt for finished components
Sampling compartment: Independent area for in-process inspection
Chip conveyor: Rear-exit hinge-type chip conveyor
Workholding: 2 × Kitagawa 250 mm hydraulic chucks
Tooling included: Complete set of static holders (OD/ID) and live holders (axial/radial)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
