WUXI - C 5225x16/10FR-TUR-WUX-2008-00001

Name: WUXI C 5225x16/10
Brand: WUXI
SKU: FR-TUR-WUX-2008-00001
Price: 118000 EUR
Availability: InStock

118,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used WUXI C 5225x16/10 For Sale | gindumac.com

Show in original language

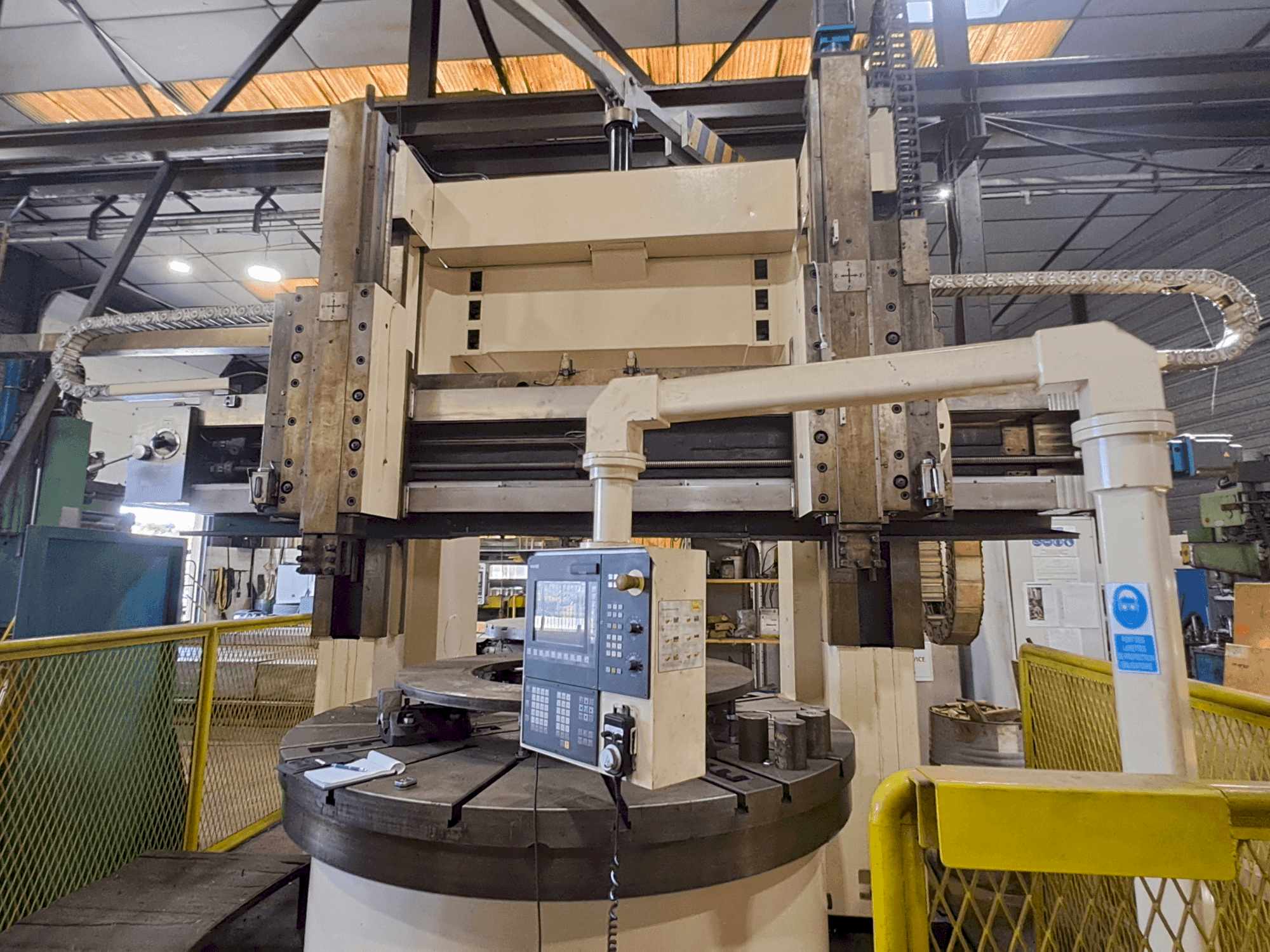

This WUXI C 5225x16/10 was manufactured in 2008. It features a worktable diameter of Ø2250 mm, supporting a maximum turning diameter of Ø2500 mm and a workpiece height of up to 1600 mm. The machine can handle weights up to 20 T and offers variable worktable speeds from 2 to 63 rpm. Consider the opportunity to buy this WUXI C 5225x16/10 vertical turning machine. Contact us for more information about this machine.

Overview

brand: WUXI
year: 2008
MODEL: C 5225x16/10
application type: Turning
Location: France
machine type: Vertical Turning Machine
control unit brand: SIEMENS

Technical Information - WUXI C 5225x16/10

General Data

Machine weight: 32500 kg

Control Unit

Brand: SIEMENS
Model: 802D sl

Main drive

Spindle motor power: 55 kW
Number of axis: 2

Workpiece

Workpiece weight: 20000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum horizontal lift travel: 1250 mm
- - Horizontal lift speed: 350 mm/min
- - Maximum turning diameter: 2500 mm
- - Maximum workpiece height: 1600 mm
- - Turret feed rate: 18 steps, variable 0. 25–90 mm/min
- - Tool section: 40 x 50 mm
- - Horizontal lift motor power: 7. 5 kw
- - Max. Left and right horizontal turret travel: 1400 mm
- - Max. Right and left vertical turret travel: 1000 mm
- - Left and right vertical support travel limit: +30 mm

Extra information

- Workpiece Worktable Diameter: Ø2250 mm Worktable Speed: 16 steps, 2–63 rpm (variable) Maximum Worktable Tightening Torque: 63 kN Table Maximum Right Rail Head Cutting Force: 35 kN Maximum Left Rail Head Cutting Force: 30 kN Total Cutting Force: 63 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
