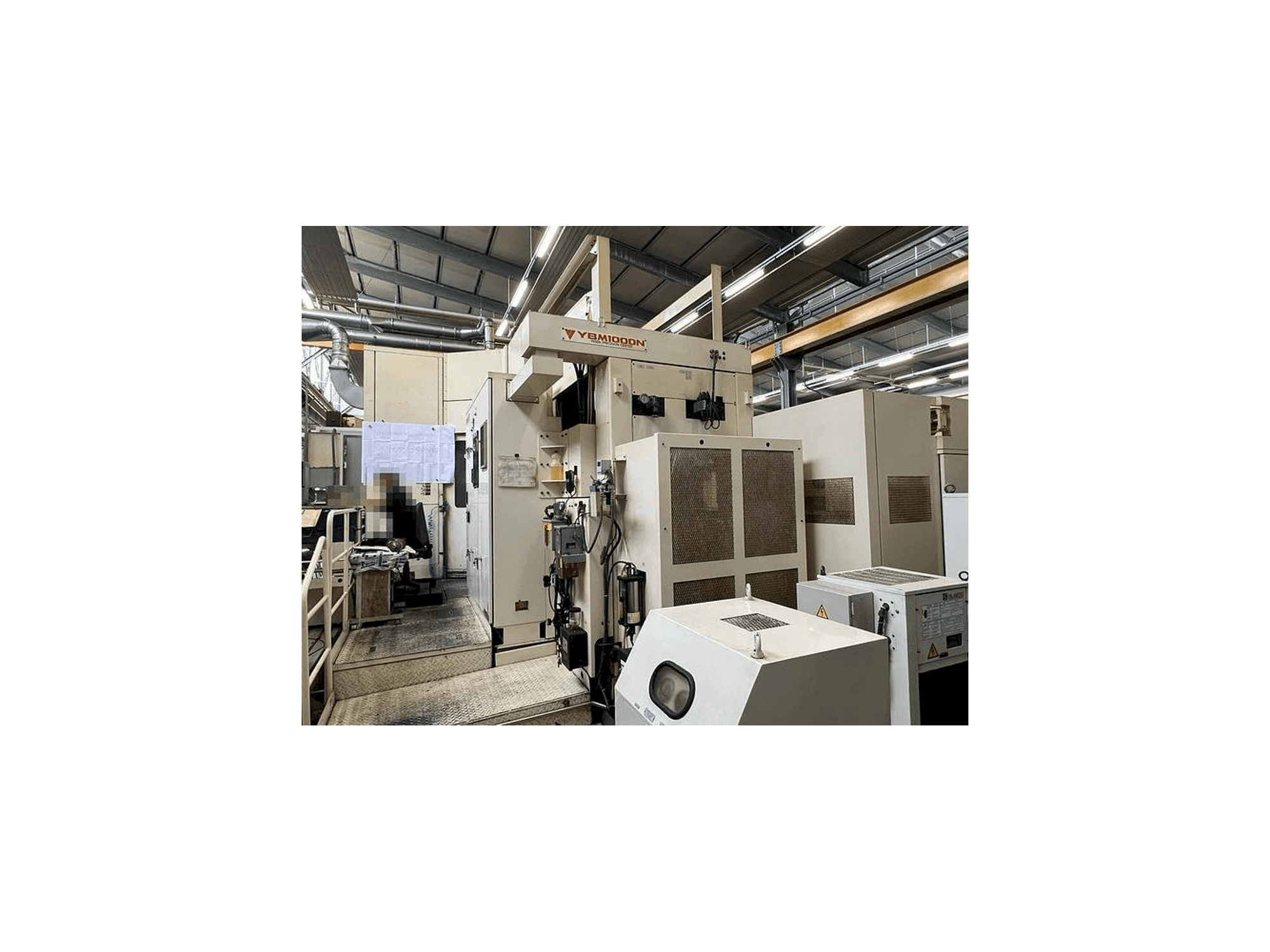

Front view of YASDA YBM 1000N machine

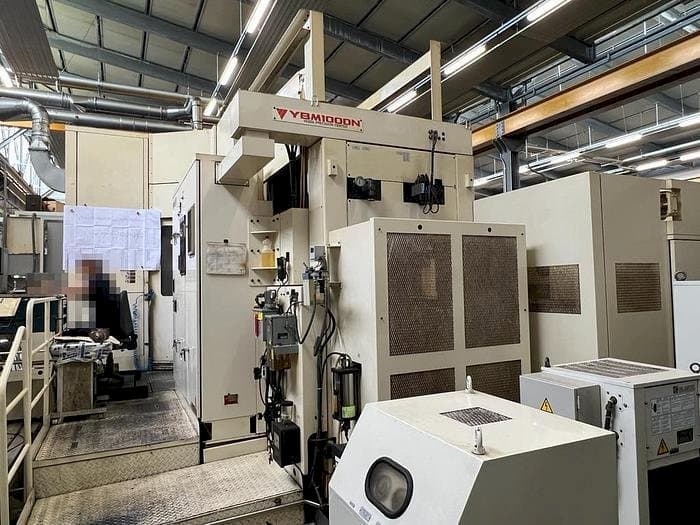

Front view of YASDA YBM 1000N machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

YASDA - YBM 1000NIT-MIL-YAS-2000-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This YASDA YBM 1000N Horizontal Machining center was manufactured in the year 2000. The machine has a spindle speed of 10-15000 rpm.

Overview

  • brand: YASDA
  • year: 2000
  • MODEL: YBM 1000N
  • application type: Milling
  • Location: Italy
  • machine type: Horizontal Machining Centre

Technical Information - YASDA YBM 1000N

Main drive

  • Number of spindles: 1
  • Spindle speed range: 50-15000 1/MIN

Movement

  • X-AXIS Movement: 2100 mm
  • Y-AXIS Movement: 1400 mm
  • Z-AXIS Movement: 1700 mm

Tools

  • Max weight: 20 kg
  • Max tool diameter: 300 mm
  • Max tool length: 550 mm
  • Type of tool holder: BT 50 (7/24 Taper)

Additional Information

Machine Benefits

Technical Machine Benefits

  • Tank capacity: 2,7 l
  • Spindle bearing inner diameter: 90 mm
  • Distance from pallet top to spindle center: o mn to 1400 mm
  • Spindle tool holder: mas403 p50t- type retention knob
  • Pump discharge :200 cc/min
  • Tool storage capacity: 240
  • Pallet surface configuration: 1250x1250 mm
  • Weight of pallet :175 mm.
  • Edge locator: 1400 kg
  • Chip conveyor ts type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
