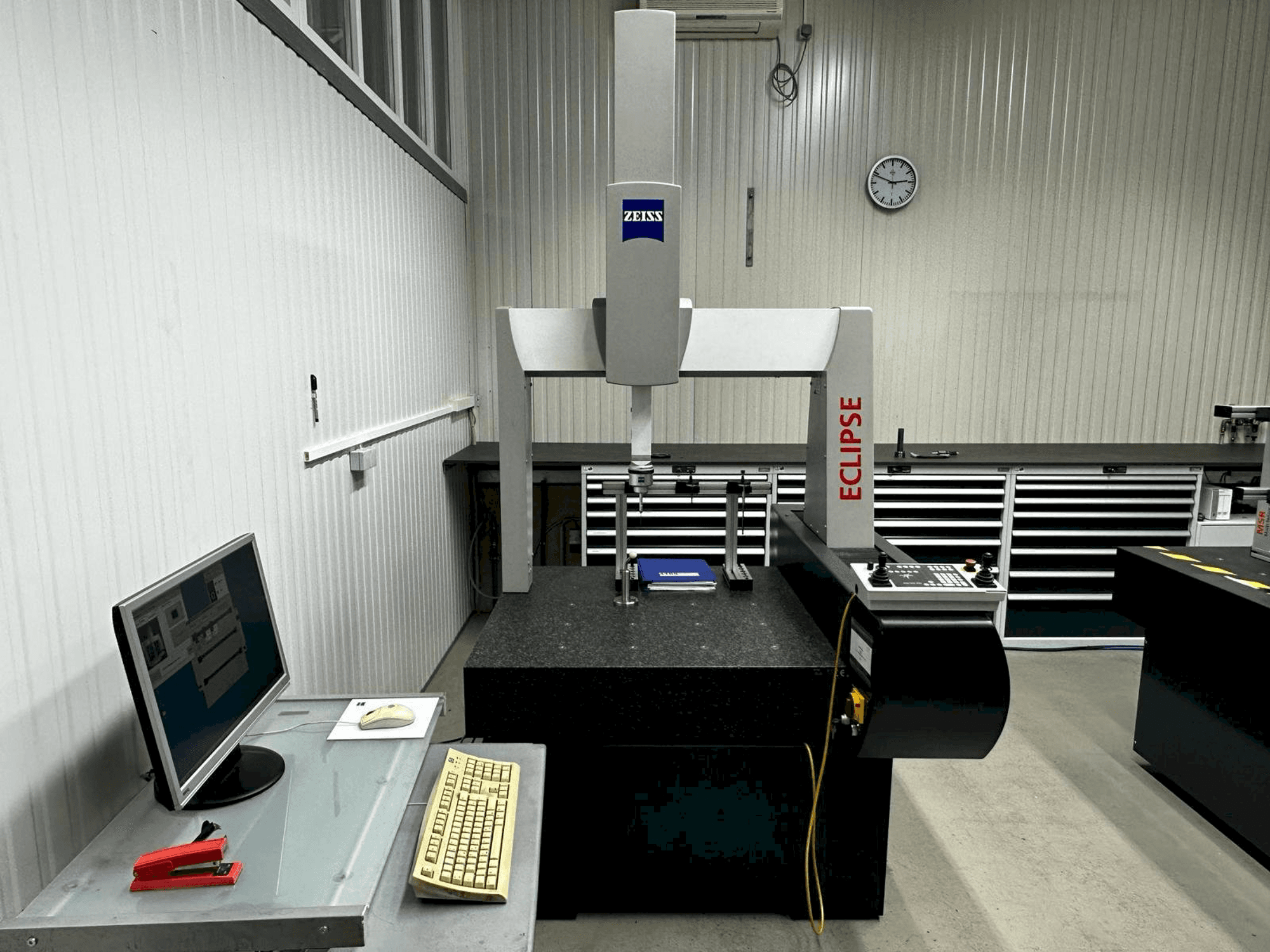

This Zeiss Eclipse CNC 07/07/06 Measuring machine was made in 2002 in Germany. It is equipped with a ZEISS U-SOFT Plus, Version 9.05, control.
Overview
- brand: ZEISS
- year: 2002
- MODEL: Eclipse CNC 07/07/06
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
- control unit brand: ZEISS
Technical Information - ZEISS Eclipse CNC 07/07/06
Control Unit
- Control Brand: ZEISS
- Control Model: U-SOFT Plus
Movement
- X-axis Travel: 700 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 580 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Max. Form and dimensional deviation: 0. 0004 mm
- Probe change magazine 3/280/600 st 3 positions,
- H=280 mm, l-600 m torque, max. 0. 5 nm repeat accuracy of position #1" duration for 90° rotation <3s repeat accuracy for probe #1" change
- Ceramic
- Measuring head replaced 2 years ago (costs 5,500€)
- Cmm-os 2. 04. 06 / u-soft solid – releas 01- z
Technical Machine Benefits
- Measuring range: x=700mm, y=700mm, z- 580mm
- Measuring uncertainty according to vdinde 2617: u1-(2. 4+l/250)um,u3- (2. 9+l/250)um,v2-2. 2um length measuring uncertainty according to iso 10360-2: e -(2. 9 +l/250) um, r3 - 3. 3um
- Device features
- Gantry measuring device in ceramic technology
- Integrated vibration damping
- Microcomputer control
- Reference stylus - incl. Basic software package
- Acceptance documents
- Operating instructions sensor technology determination standard ball
- Kd = 52 mm
Extra Information
Machine under power
