Agie Agietron Integral 2 Erosion machine

Show in original language

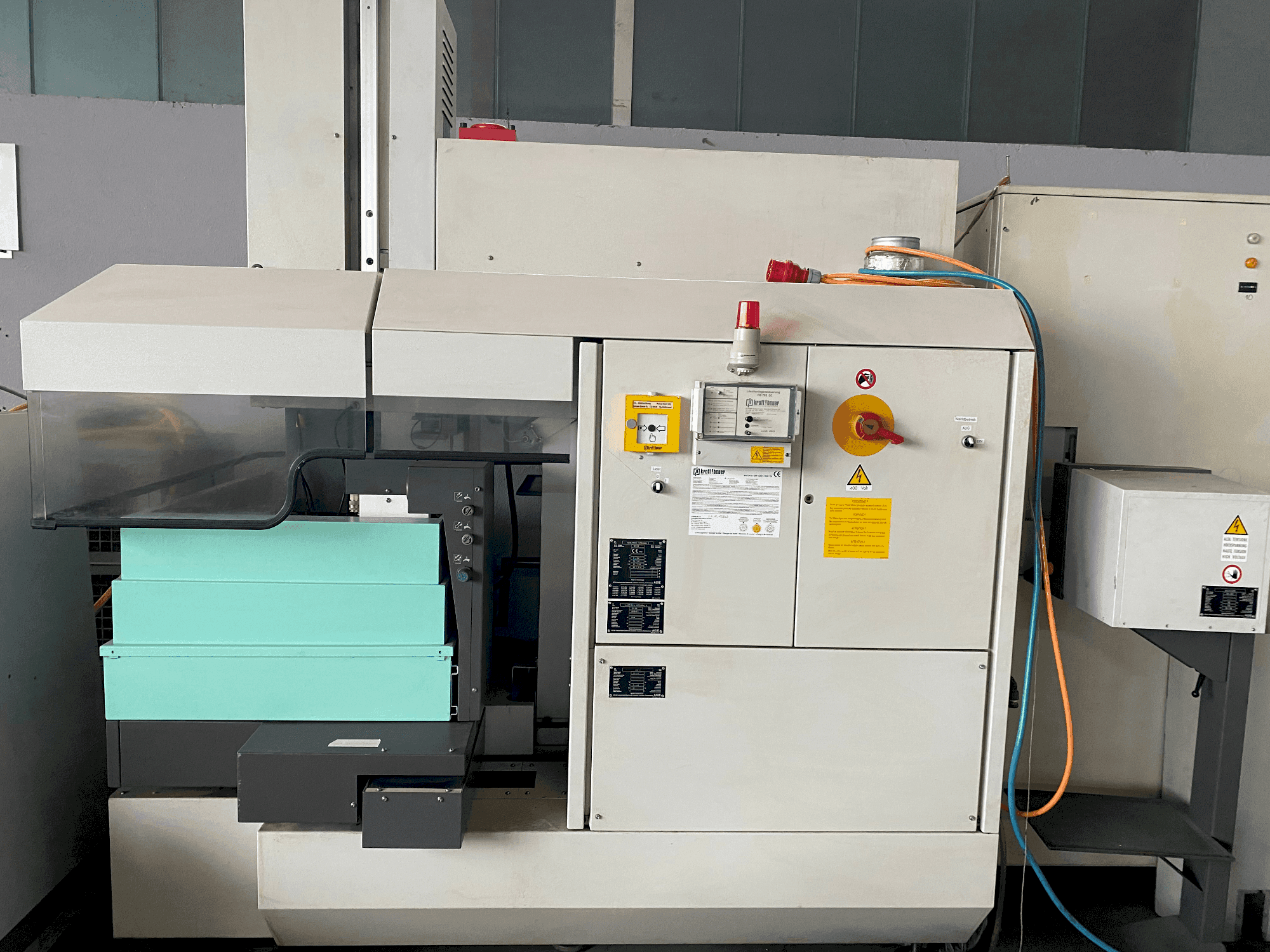

This Agie Agietron Integral 2 Erosion machine was manufactured in Switzerland in 1994. It operates for a max. workpiece weight of 400 kg and max. electrode weight of 100 kg.

Overview

brand: AGIE
year: 1994
MODEL: Agietron Integral 2
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: AGIE

Technical Information - AGIE Agietron Integral 2

General Data

Measurements width: 1400 MM
Measurements depth: 2510 MM
Measurements height: 2580 MM
Machine weight: 2575 KG

Control Unit

Brand: AGIE
Model: AGIEMATIC T

Movement

X-AXIS Movement: 350 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 350 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse: 720 mm/min
- - Max. Workpiece dimensions (w/l/h): 810 mm x 570 mm x 250 mm
- - Working container (inner dimension) (w/l/h): 830 mm x 590 mm x 350 mm
- - Supporting surface (w/l/h): 600 mm x 450 mm
- - Distance table-quill: min. 170 mm, max. 520 mm
- - Workpiece weight: max. 400 kg
- - Electrode weight: max. 100 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
