➤ Used AgieCharmilles Form E 600 For Sale | gindumac.com

Show in original language

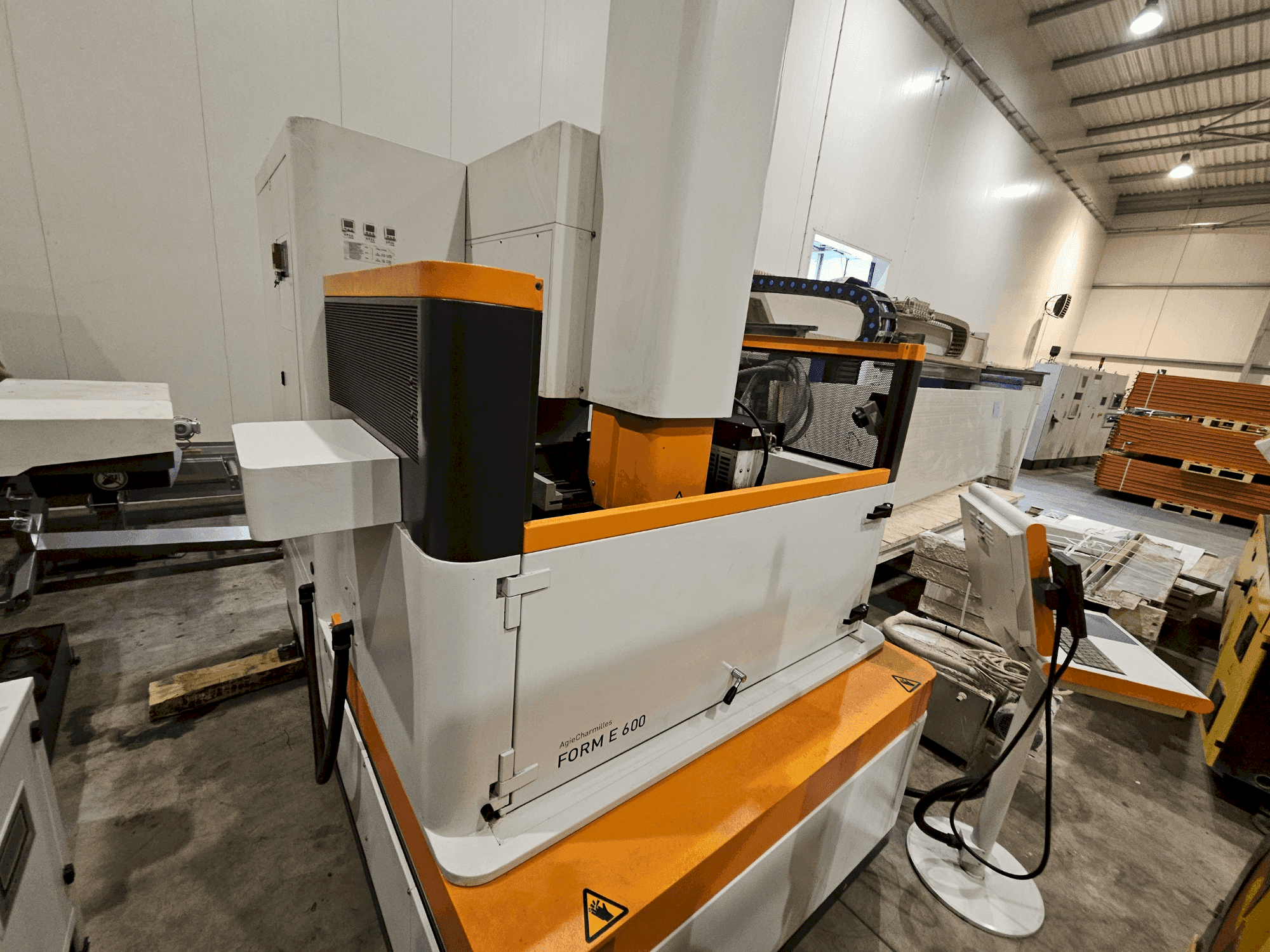

This 4-axis AgieCharmilles Form E 600 die-sinking EDM machine was manufactured in 2019. It offers precision and efficiency for complex mold manufacturing. Consider the opportunity to buy this AgieCharmilles Form E 600 die-sinking EDM machine. Contact us for more information.

Overview

brand: AgieCharmilles
year: 2019
MODEL: Form E 600
application type: EDM
Location: Poland
machine type: Die-Sinking EDM Machine

Technical Information - AgieCharmilles Form E 600

General Data

Measurements width: 1600 mm
Measurements depth: 2700 mm
Measurements height: 2858 mm
Machine weight: 4400 kg

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 600 mm
X-AXIS Accuracy: 0.001 mm
Y-AXIS Movement: 400 mm
Y-AXIS Accuracy: 0.001 mm
Z-AXIS Movement: 400 mm
Z-AXIS Accuracy: 0.001 mm

Workpiece

Workpiece weight: 1000 kg

Additional Information

Additional equipment

Linear tool changer (LTC): 6 positions

Machine Benefits

Technical Machine Benefits

Operating system: windows input devices: 17" lcd monitor, mouse or touchscreen, keyboard, and remote control
Axis speed (x, y): 4 m/min z-axis speed: 4 m/min
Position readout accuracy (x, y, z): 0. 1 µm
Max. Electrode weight: 50 kg
Max. Workpiece size: 1000 × 700 × 400 mm
Work tank dimensions (w × d × h): 1200 × 800 × 500 mm
Table size: 800 × 600 mm
Distance from floor to table surface: 900 mm
Min. /max. Distance from table to chuck: 150 / 450 mm
Power supply: standard voltage 3 × 380 v / 400 v ±10%, 50/60 hz

Extra Information

C-axis (standard) Max. electrode weight: 25 kg Rotational speed: 0–100 rpm Dielectric Tank capacity: 750 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
