AMADA - AC2510 NTPL-PUN-AMA-2008-00001

Name: AMADA AC2510 NT
Brand: AMADA
SKU: PL-PUN-AMA-2008-00001
Price: 43000 EUR
Availability: InStock

43,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used AMADA AC2510 NT For Sale | gindumac.com

Show in original language

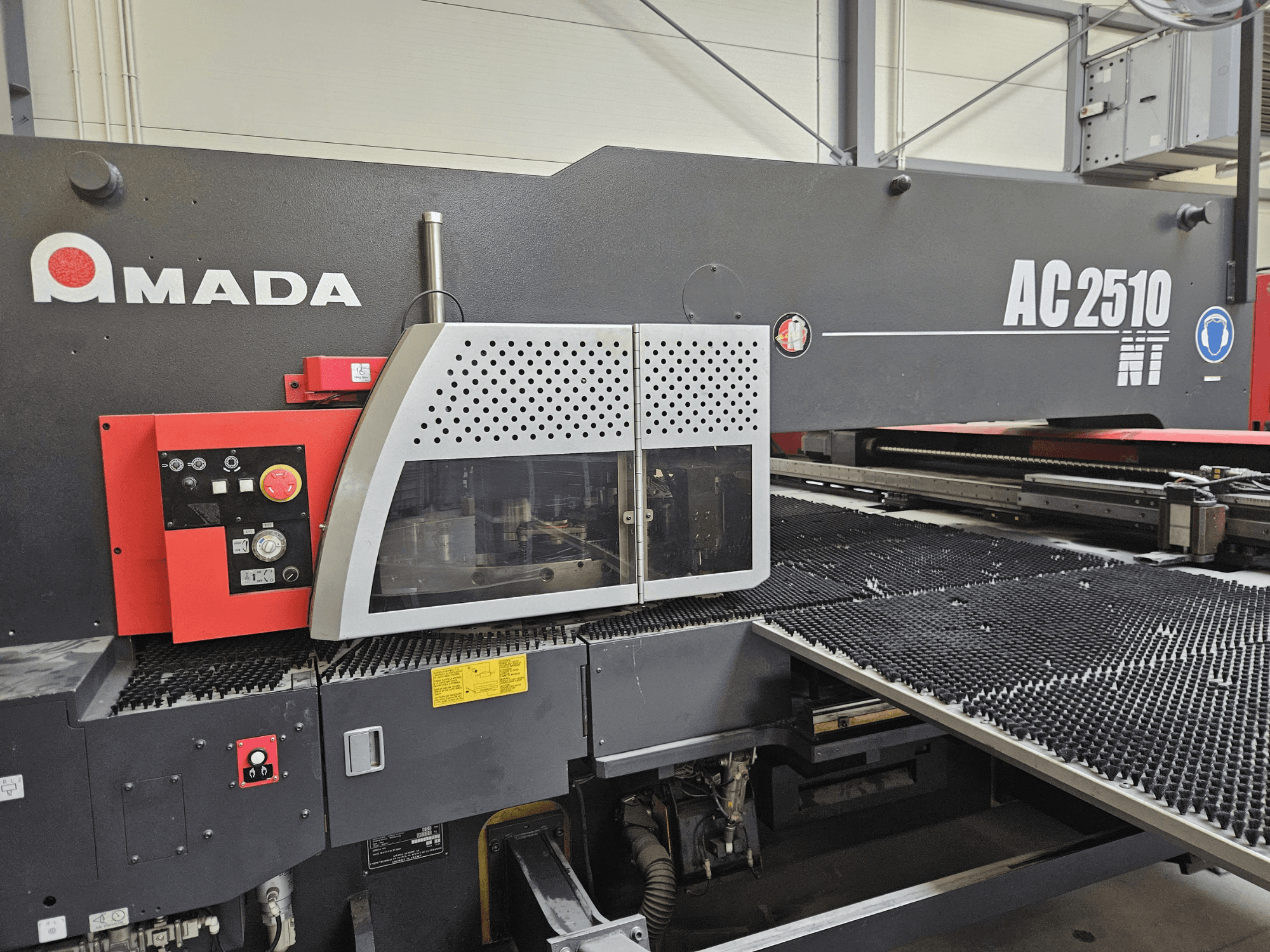

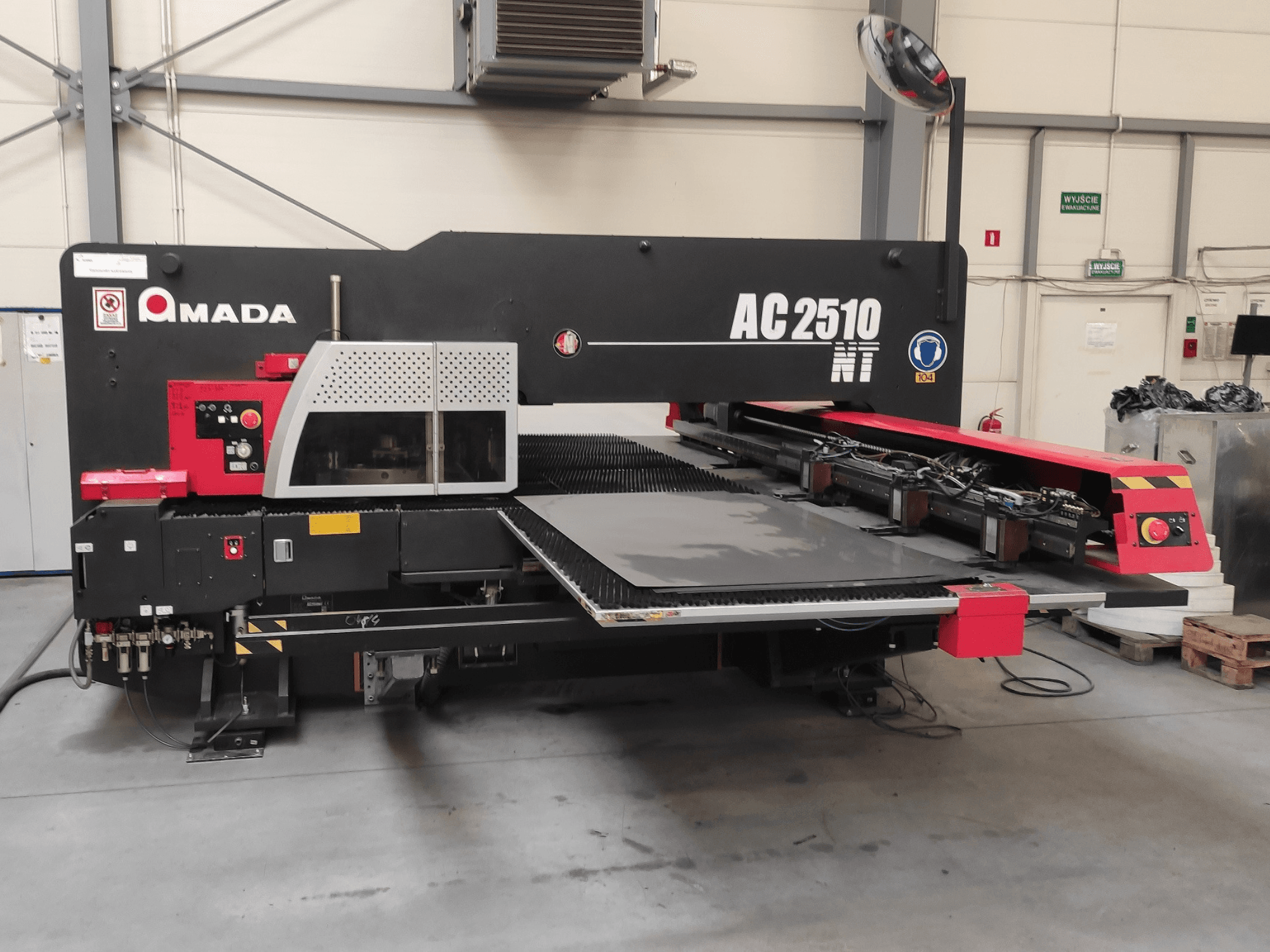

This AMADA AC2510 NT was manufactured in 2008. It features a punching force of 200 kN and a turret capacity of 51 stations. It can handle sheet sizes up to 1270 × 5000 mm and thicknesses up to 3.2 mm. The machine supports a maximum sheet weight of 150 kg and offers high-speed turret indexing. If you are looking to get high-quality punching capabilities, consider the AMADA AC2510 NT machine we have for sale. Contact us for more information.

Overview

brand: AMADA
year: 2008
MODEL: AC2510 NT
production hours: 24490
application type: Punching
Location: Poland
machine type: CNC Punching Machine
control unit brand: AMADA

Technical Information - AMADA AC2510 NT

Control Unit

Control Brand: AMADA
Control Model: AMNC-F

Dimensions

Machine Height: 2082 mm
Machine Length: 4165 mm
Machine Weight: 13000 kg

Technical Specification

Punching Force: 200 Kn

Additional Information

Turret capacity: 51 stations
Maximum sheet size: 1270 × 5000 mm
Maximum sheet thickness: 3.2 mm (mild steel)
Maximum sheet weight:
- 50 kg (feed speed F1)
- 150 kg (feed speed F4)
X-axis travel: 2500 mm
Y-axis travel: 1270 mm
Positioning accuracy: ±0.1 mm
Strokes per minute:
- 25.4 mm pitch (5 mm stroke, X-axis): 350 min⁻¹
- 25.4 mm pitch (5 mm stroke, Y-axis): 260 min⁻¹
Maximum stroke length: 42 mm
Maximum feed speed:
- X-axis: 80 m/min
- Y-axis: 60 m/min
Turret indexing speed: 30 min⁻¹
Electrical connection power: 19 kVA
Machine width: 5120 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
