Baykal - BPM-T 1525X30PL-PUN-BAY-2020-00001

Name: Baykal BPM-T 1525X30
Brand: Baykal
SKU: PL-PUN-BAY-2020-00001
Price: 99000 EUR
Availability: InStock

99,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Baykal BPM-T 1525X30 For Sale | gindumac.com

Show in original language

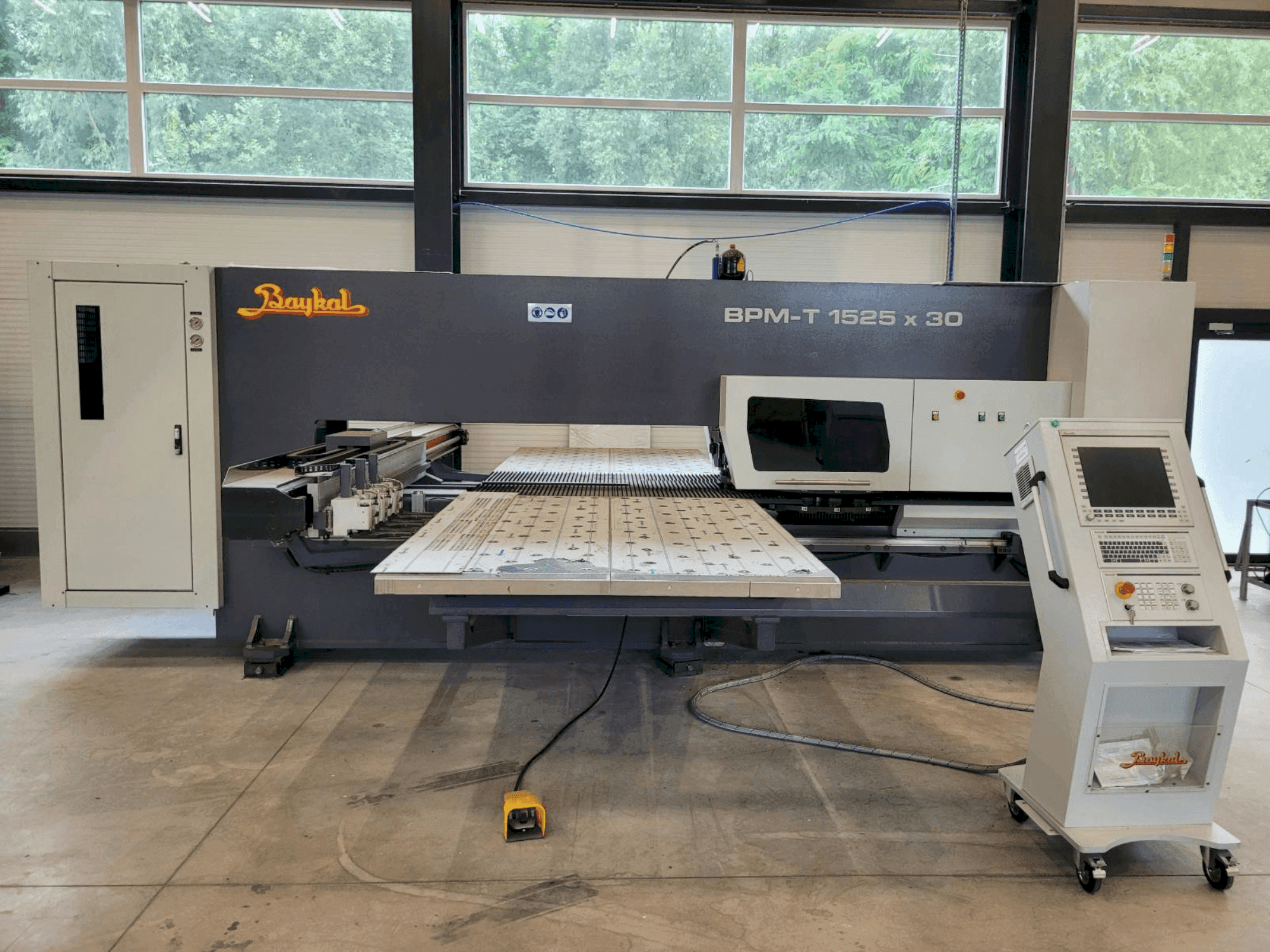

This 6-axis Baykal BPM-T 1525X30 was manufactured in 2020, featuring a robust 30-ton hydraulic punching force and a versatile tooling system with 20 stations and indexable tool holders. It supports a working range of 3000 × 1500 mm and rapid axis speeds (X: 100 m/min, Y: 80 m/min). Equipped with Bosch MTX CNC control and Lantek CAM software, it ensures precision and efficiency. If you are looking to get high-quality punching capabilities, consider the Baykal BPM-T 1525X30 machine we have for sale. Contact us for more information.

Overview

brand: Baykal
year: 2020
MODEL: BPM-T 1525X30
application type: Punching
Location: Poland
machine type: CNC Punching Machine
control unit brand: BOSCH

Technical Information - Baykal BPM-T 1525X30

Control Unit

Control Brand: BOSCH
Control Model: MTX

Dimensions

Machine Depth: 6370 mm
Machine Height: 2220 mm
Machine Weight: 14000 kg

Movement

Number of Axes: 6

Additional Information

Additional equipment

Hydraulic Motor Power: 11 kW
Axes Drive Type (C1 and C2): Direct drive
Hydraulic Punching Force: 30 tons
Portable CNC Control Panel
Work Chute: Automatic system to take out cut parts
Mobile Storage Box for Cut Parts
Waste Box
Light Barriers

Machine Benefits

Technical Machine Benefits

Ce conformity
Maximum sheet thickness: 6. 4 mm
Maximum punching rate: 1 mm nibbling: 900 hits/min 25 mm nibbling: 580 hits/min
Maximum punching diameter (for 6. 4 mm thickness): 25 mm
Number of clamps: 3
Tables: movable in y axis
Table height: 980 mm
Movable table: 1300 × 5200 mm with ball transfers

Extra Information

The machine is in excellent condition, has only a few hours of operation, and is like new. Control Unit Control: Bosch MTX Operating System: Windows Hard Disk: 150 GB CPU: 2 GHz RAM: 2 GB Data Transfer: USB stick memory Display: 12" TFT LCD color screen Movement Axes: 6 (X, Y, Z, C1, C2, T) Axis Speeds: X: 100 m/min Y: 80 m/min X + Y combined: 128 m/min C1 / C2 rotation: 300 rot/min T axis: 20 rot/min Repositioning: Available Positioning Accuracy: ±0.1 mm Repeatability: 0.04 mm CAM Nesting Software: Lantek Turret Tool Rotation: Indexable Multitools Support: Available (3 or 8 tools) Total Number of Tool Stations: 20 Indexable Tool Holders: Standard 4 (option up to 10) Tool Change Time (multitools): 0.3 s Maximum Tool Change Time (turret): 3 s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
