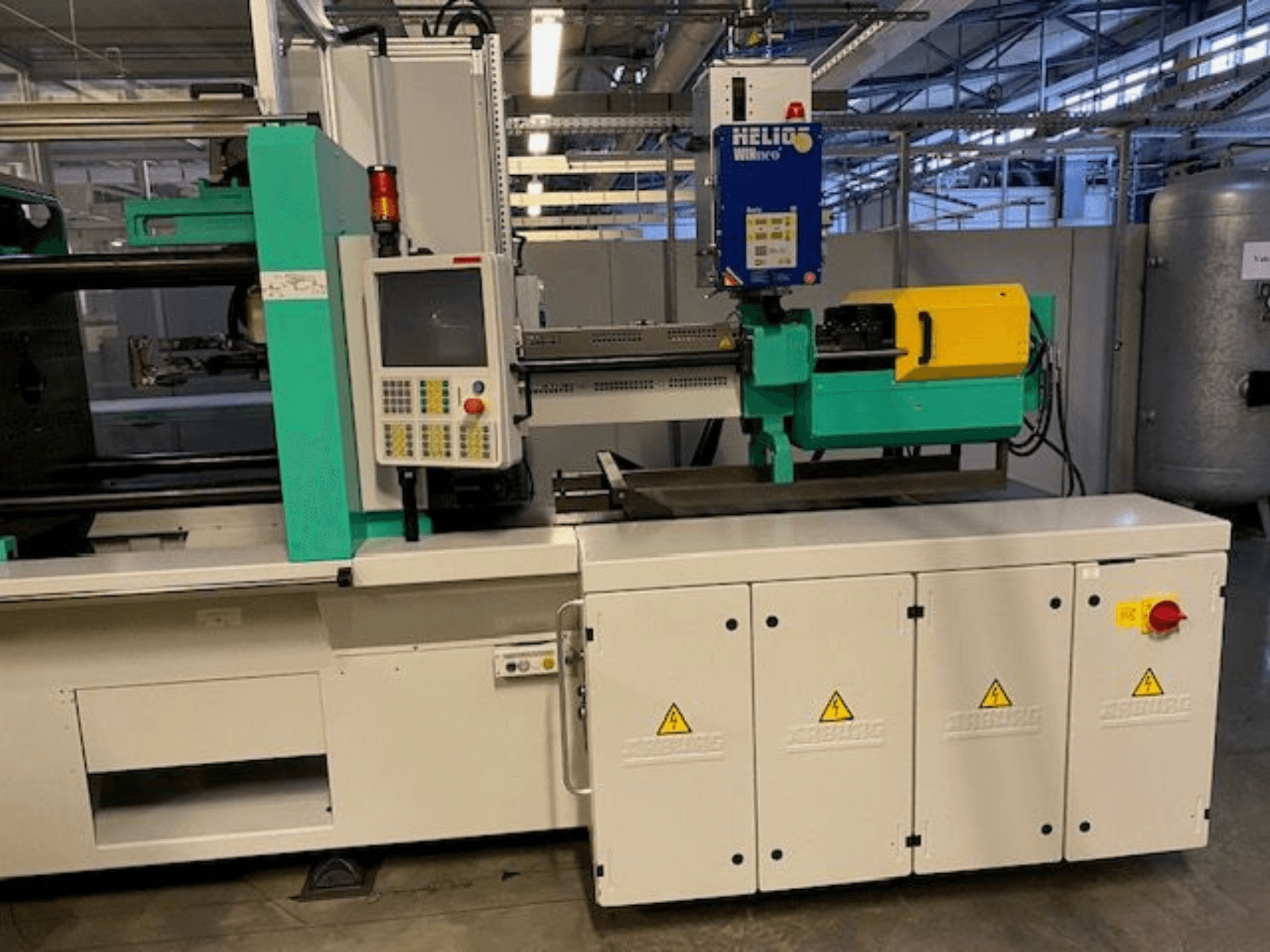

Industrial injection molding machine, model HELIO, front view, featuring control panel, safety guards, and emergency stop button.
Industrial injection molding machine, model HELIO, front view, featuring control panel, safety guards, and emergency stop button.

Arburg - 520S-1500-400DE-INJ-ARB-2016-00006

121,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3s Arburg 520S-1500-400 was manufactured in 2016. It features a clamping force of 1600 kN, a screw diameter of 45 mm, and a servo-controlled dual-circuit pump system for precise movements. The SELOGICA direct control system with a 15-inch touchscreen enhances usability. Consider the opportunity to buy this Arburg 520S-1500-400 hydraulic injection moulding machine. Contact us for further details.

Overview

  • brand: Arburg
  • year: 2016
  • MODEL: 520S-1500-400
  • production hours: 13361
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • control unit brand: ARBURG

Technical Information - Arburg 520S-1500-400

Control Unit

  • Control Brand: ARBURG

Technical Specification

  • Clamping Force: 1600 kN
  • Screw Diameter: 45 mm

Additional Information

  • Programmable and controlled build-up of clamping force; extended clamping program with 2 stages

  • Hydraulic, servo-controlled ejector on moving platen

  • Screw diameter: 45 mm (without nozzle)

  • High wear-resistant version; sinter-metal check ring; CrN coating on screw and check ring

  • Suitable for abrasive, corrosive and high-temperature thermoplastics

  • Technology level 2: servo-controlled, dual-circuit pump system with two regulated hydraulic pumps for precise, parallel movements

  • Programmable nozzle contact force and holding pressure

  • Continuous oil circulation with additional cooling and filtration

  • SELOGICA direct control system with touchscreen process editor

  • 15-inch (38.1 cm) display; multilingual interface (German, English, local language)

  • Heating capacity zones 1–6: 3.6 kW each (230 V / 16 A)

  • Cylinder heating temperature up to 450 °C

  • OPC UA interface (MES/host computer connection)

  • USB and CompactFlash interfaces for data storage

  • Pneumatic supply with pressure regulator

  • Cooling water distribution with adjustable circuits and flow indicators

  • Electrical: 400 V / 50 Hz, with neutral conductor

  • Hours: 13,361

Additional equipment

  • None included as listed

  • Robot/automation readiness: EUROMAP 67 robot interface; prepared for ARBURG MULTILIFT robot system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
