➤ Used Arburg Allrounder 270 C 400-70 | Injection Moulding

Show in original language

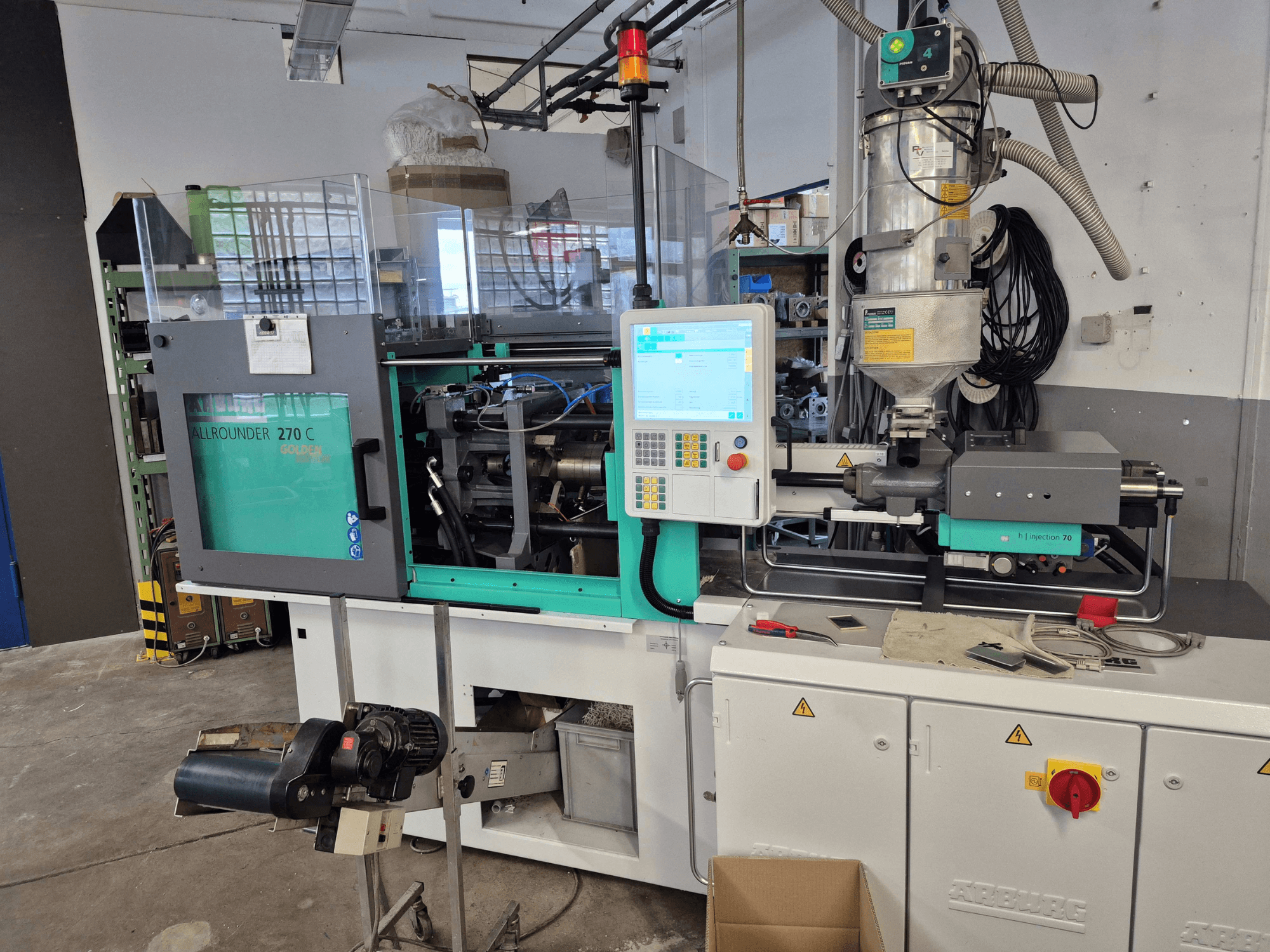

Hydraulic injection moulding machine manufactured in 2024. This Arburg Allrounder 270 C 400-70 features a clamping force of 400 kN and a maximum specific injection pressure of 2738 bar. It includes a mould height range of 160 - 475 mm and a distance between tie bars of 280 x 280 mm. If you are looking to get high-quality injection moulding capabilities, consider the Arburg Allrounder 270 C 400-70 machine we have for sale. Contact us for further details.

Overview

brand: Arburg
year: 2024
MODEL: Allrounder 270 C 400-70
production hours: 766
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder 270 C 400-70

Technical Specification

Clamping Force: 400 kN
Screw Diameter: 18 mm

Additional Information

- Max. Specific Injection Pressure: 2738 bar

- Max. Swept Volume: 28 cm³

- Mould Height: 160 - 475 mm

- Distance Between Tie Bars: 280 x 280 mm

- Centering Diameter (Ejector/Nozzle): 110 mm / 125 mm

- Operating Hours (Pump): 766 hrs

- Core Pull: 1

- Heating Control Circuits: 3 electrical heating control circuits for mould heating, max. 2 kW/230 V

- Cooling Circuits: Programmable machine-related cooling circuits, cooling water distribution with 3 free circuits (DN 13)

- Nozzle Specifications: Open nozzle 18 mm with M 24x1.5 internal thread, flat nozzle tip, nozzle heating band

- Control System: SELOGICA direct control with 15-inch (38.1 cm) touchscreen user interface

- Connectivity & Interfaces: Basic Connectivity (CPU Ethernet port, IIoT Gateway), EUROMAP 67 robot interface (50-pin), EUROMAP 65 chip card operating authorization, CompactFlash & USB interface, Printer interface (serial USB), Interface for colouring/dosing unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
