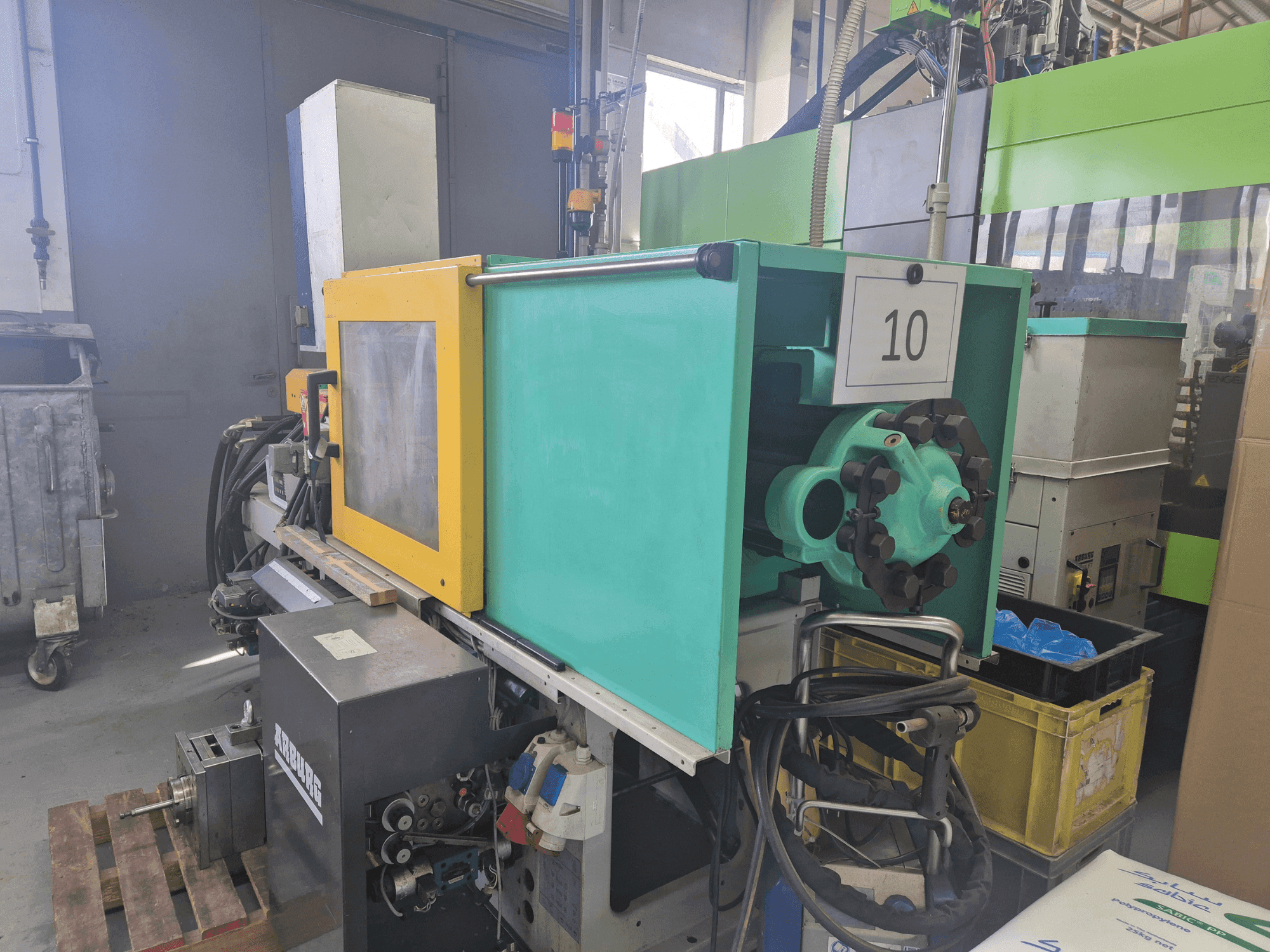

Front view of Arburg Allrounder 270 C 400-70 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 270 C 400-70

Photo Gallery

Arburg - Allrounder 270 C 400-70DE-INJ-ARB-2007-00007

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 270 C 400-70 | Injection Moulding

Show in original language

This Arburg Allrounder 270 C 400-70 was manufactured in 2007. A hydraulic injection moulding machine, it's ideal for precision plastic processing. Consider the opportunity to buy this Arburg Allrounder 270 C 400-70 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Arburg
year: 2007
MODEL: Allrounder 270 C 400-70
production hours: 64344
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder 270 C 400-70

Injection Unit

Stroke volume: 16 ccm CM³

Clamping unit

Clamping force: 400 kN
Opening stroke: 350 mm
Distance between bars: 270 mm
Mould height min: 200 mm

Additional Information

Additional equipment

Oil Cooling: Programmable oil temperature regulation with heat exchanger.
Injection Control: 3-stage injection regulation (30-290 mm/s).
Nozzle Control Block: T2 type for 270-570 CG series.
Clamping Unit: WKZ-Schließeinheit 270 CS (base configuration). Minimum installation height: 200 mm.
Control System: CPU: Pentium III with USB interface. / I/O Cards: Digital (L-ARB 790) and analog (L-ARB 798) modules. /Temperature Control: 12-channel programmable card (L-ARB 777).
S-Systemdiskette CS/S/A/U (Version 03.060-00.000).
Direct Graphics Interface (Version 04.060-00.000).
Coolant Distribution: Regulated coolant circuits with manual valves and measuring pipes. / Additional connections for free inlet/outlet.

Machine Benefits

Technical Machine Benefits

Clamping system: hasco
Cylinder diameter: 18 mm
Injection weight max (ps): 17 g
Nozzle radius: r40
Centring ring: 125
Voltage: 400 v / 50 hz
Hydraulic pump: model: rxp 45 + akp 18 + hssp 16 / d / drive unit: d38/d35 (5. 5-7. 5 kn) /motor: power: 7. 5/8. 6 kw / voltage range: 380-420v (50/60hz) or 440-480v (60hz)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
