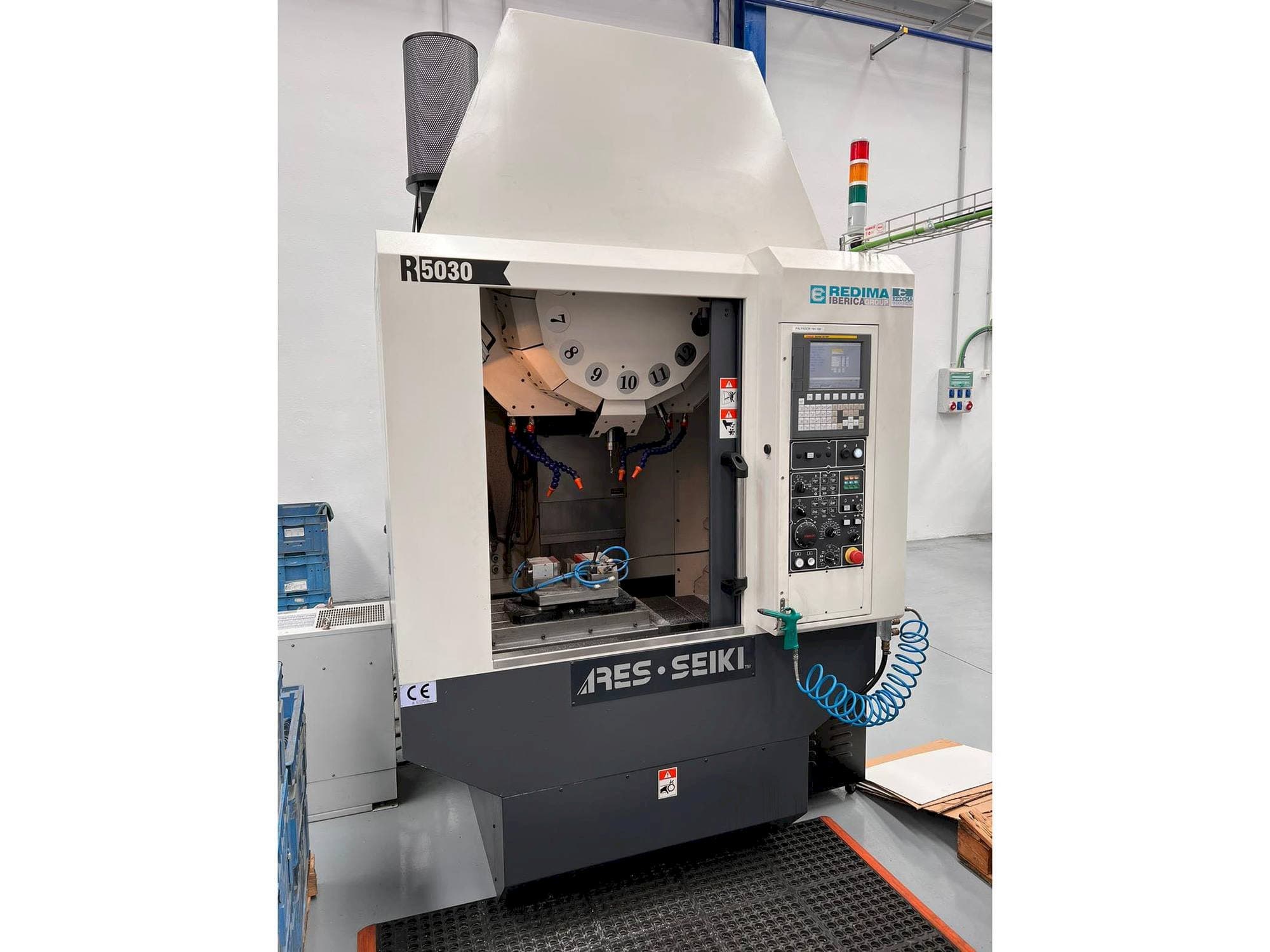

- ARES-SEIKI R5030 Vertical Machine Center
Show in original language
This ARES-SEIKI R5030 Vertical Machine Center was made in the year 2020 in Taiwan and has 242 cutting hours. It is equipped with a Fanuc Series Oi-MF control unit and has 3 axis. The machine has a spindle speed of 0 - 12000 rpm.
Overview
- brand: ARES-SEIKI
- year: 2020
- MODEL: R5030
- production hours: 242
- application type: Milling
- Location: Spain
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Fanuc
- GINDUMAC ID: ES-MIL-ARE-2020-00001
Technical Information
General Data
- Measurements width: 1500 mm
- Measurements depth: 2230 mm
- Measurements height: 2480 mm
- Machine weight: 2200 kg
Control Unit
- Brand: Fanuc
- Model: Series Oi-MF
Main drive
- Spindle speed range: 0 - 12000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Rapid traverse: 48 m/min
- Y-AXIS Rapid traverse: 48 m/min
- Z-AXIS Rapid traverse: 60 m/min
Table
- Outer length: 550 mm
- Outer width: 320 mm
- Table load: 200 kg
Additional Information
- Technical Machine Benefits:
- - Number of t-slots x width x distance between slots: 3x14x100 mm
- - Longitudinal course of the table: 500 mm
- - Transversal course of the table: 300 mm
- - Vertical course: 300 mm
- - Cone: bbt-30
- - Distance from axis to table: 170-470 mm
- - Distance from center to column: 350 mm
- - Automatic tool changer
- - Number of tools: 14
- - Selection type: bidirectional
- Qualitative Machine Benefits:
- - Maximum tool diameter (adjacent tool): 80 mm
- - Maximum tool length: 200 mm
- - Maximum tool weight: 3 kg
- - Engines: main shaft (headstock): 3. 7/2. 2 kw, x, y axes: 1. 6 kw, z axis: 3kw, tool cooling pump: 1. 2 cv
- - Renishaw ts27r
- - Probe mist extractor
- - Direct motor 12,000 rpm, 5. 5kw
- - 14 tools servo
- - Head cooler
- - Auger type chip conveyor
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
