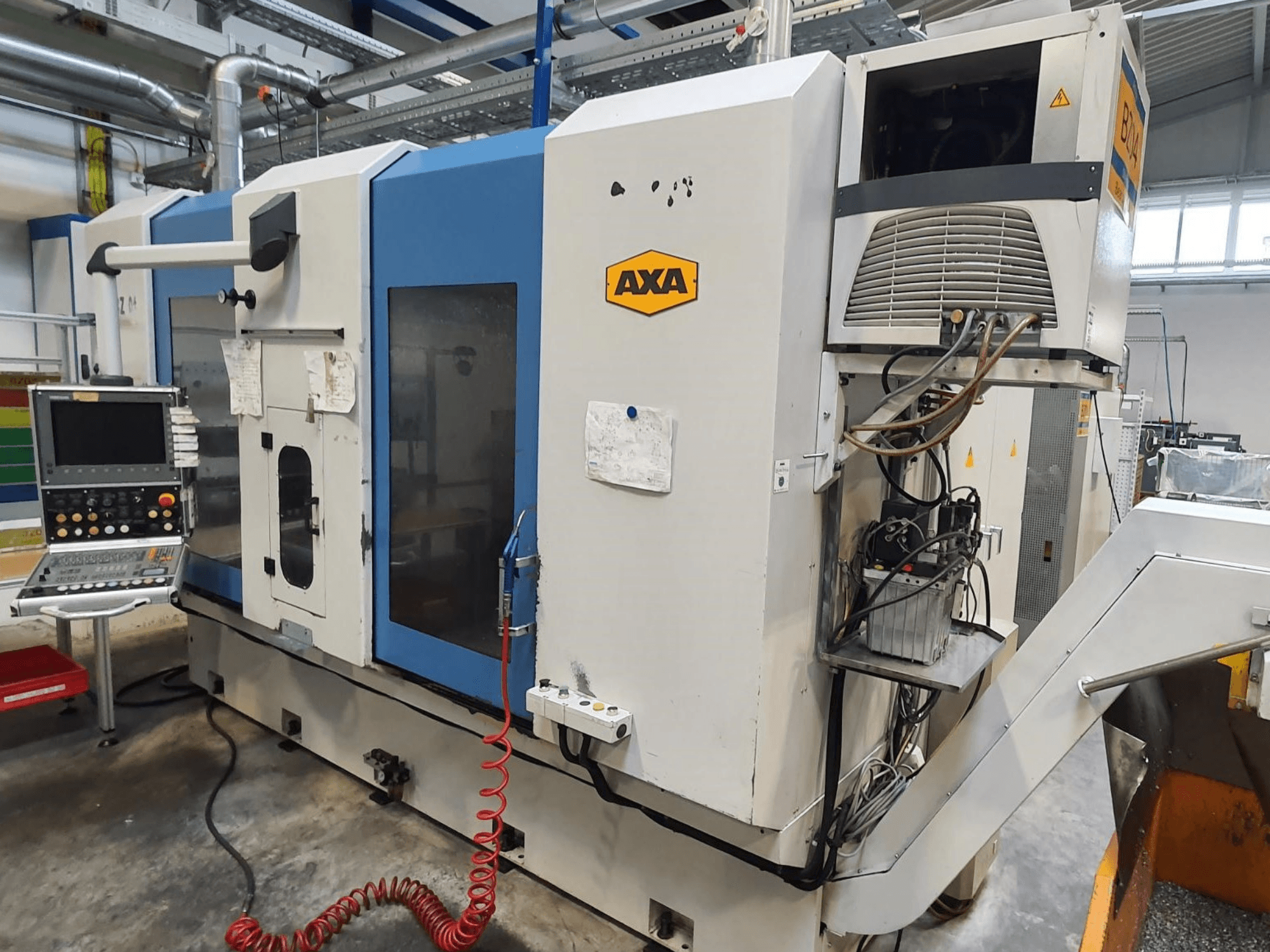

This 4-axis AXA DBZ vertical machining centre was manufactured in 2005. It features a travel of 750 mm in the X and Y axes, and 600 mm in the Z axis. The machine includes a robust table size of 1000 x 500 mm, with a maximum table load of 800 kg/m². If you are looking to get high-quality machining capabilities, consider the AXA DBZ vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: AXA
  • year: 2005
  • MODEL: DBZ
  • production hours: 48246
  • application type: Milling
  • Location: Austria
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - AXA DBZ

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Height: 3000 mm
  • Machine Length: 4500 mm
  • Machine Weight: 8500 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 750 mm

Technical Specification

  • Spindle Power: 30 kW
  • Spindle Speed: 10000 RPM

Additional Information

- Travel X / Y / Z: 2 x 750 mm (for shuttle mode) / 500 mm / 600 mm

- Machine Table: 2 x (1,000 x 500 mm)

- Additional Axes: 1x 4th axis

- Table Load: max. 800 kg/m²

- Tool Taper: SK 40 (DIN 69871 A)

- Tool Changer: 22 positions

- Max. Tool Length / Diameter: 400 mm / 85 mm (135 mm with free adjacent slots)

- Max. Spindle Speed: 10,000 rpm

- Spindle Power / Torque: approx. 30 kW / 143 Nm (at 40% duty cycle)

- Rapid Traverse (X, Y / Z): 25–26 m/min (X, Y) / 20 m/min (Z)

- Supply Voltage: 3x400V/230V/N/PE

- Frequency: 50 Hz

- Connected Load: 55 kVA

- Backup Fuse: max. 100A

- Control Voltage: 24V-

- Machine Weight: approx. 8,500 kg

- Footprint / Dimensions (L x H): approx. 4,500 mm x 3,000 mm

- Control on: 127984 hours

- Machine on: 119531 hours

- Program on: 48246 hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
