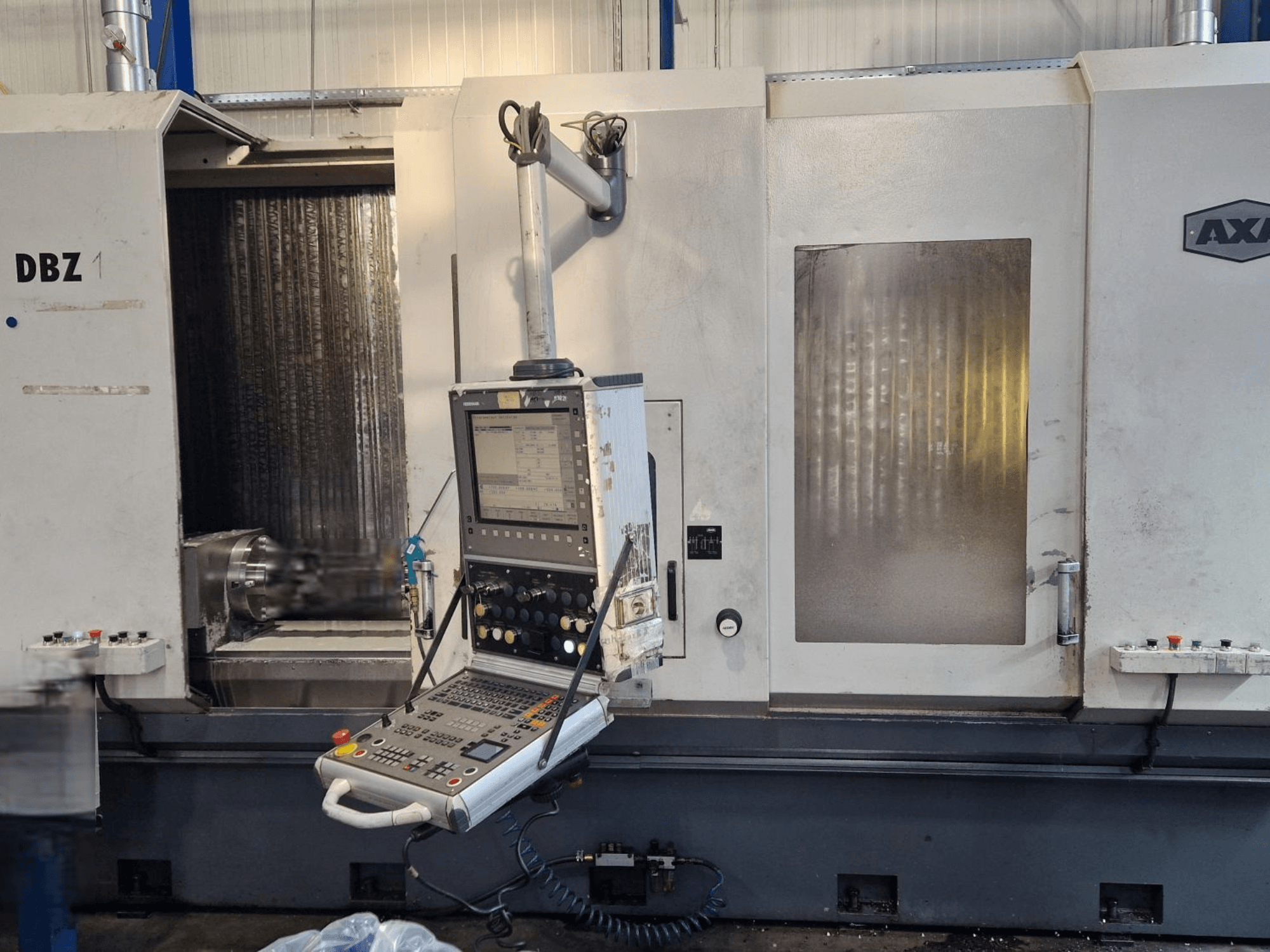

AXA - DBZAT-MIL-AXA-2010-00001

• Spindle hours: 36,604 h (verified via image)

• Operating Hours: 40,049.8 h

• Machine ON hours: 81,189 h

• Travel Range X-Axis: 2 x 750 mm (pendulum operation)

• Travel Range Y-Axis: 500 mm

• Travel Range Z-Axis: 600 mm

• Clamping Surface / Table Size: 1350 x 500 mm right and left (2x)

• Max. Table Load: 800 kg/m²

• Spindle Type: Hollow shaft motor, water-cooled

• Spindle Speed Range: 30 - 8,000 rpm (Max 10,000 rpm listed / Nmax 12,000 rpm)

• Spindle Power (40% ED): 30.0 kW

• Spindle Power (100% ED): 20.0 kW

• Spindle Torque (40% ED): 143.2 Nm

• Spindle Torque (100% ED): 95.5 Nm

• Tool Holder: SK 40

• Tool Changer Capacity: 22 positions (Plate/Disc type)

• - Max. Tool Diameter: 85 mm (135 mm with free adjacent spots)

  - Max. Tool Length: 400 mm

  - Max. Tool Weight: 8 kg (at L=400mm) / 5.5 kg (at L=200mm)

  - Rapid Feed X-Axis: 25 m/min

  - Rapid Feed Y-Axis: 25 m/min

  - Rapid Feed Z-Axis: 20 m/min

  - Electrical Connection Voltage: 3x 400V / 230V / N / PE, 50 Hz

  - Connected Load: 55 kVA

  - Backup Fuse: max. 100 A

  - Control Voltage: 24 V

• Overall dimensions: 4500 × 2250 × 2700 mm

• Tool changer: Plate-type tool changer

• Design/configuration: Traveling column; Left/Right work areas (pendulum machining)

• Safety/enclosure: Maintenance door

Additional equipment

• NC rotary table RTA 200 with hydraulic counter bearing (4th axis)

• Clamping system: Hydraulics for right/left work areas, incl. rotary union for 4th axis

• Internal coolant supply (IKZ)

• Chip conveyor

• Emulsion (coolant) system

• Recooling unit (chiller)

• A 4th axis is mounted on one clamping side. It is included with the delivery.
