Battenfeld - HM 13000/12000DE-INJ-BAT-2001-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Battenfeld HM 13000/12000 For sale | gindumac.com

Show in original language

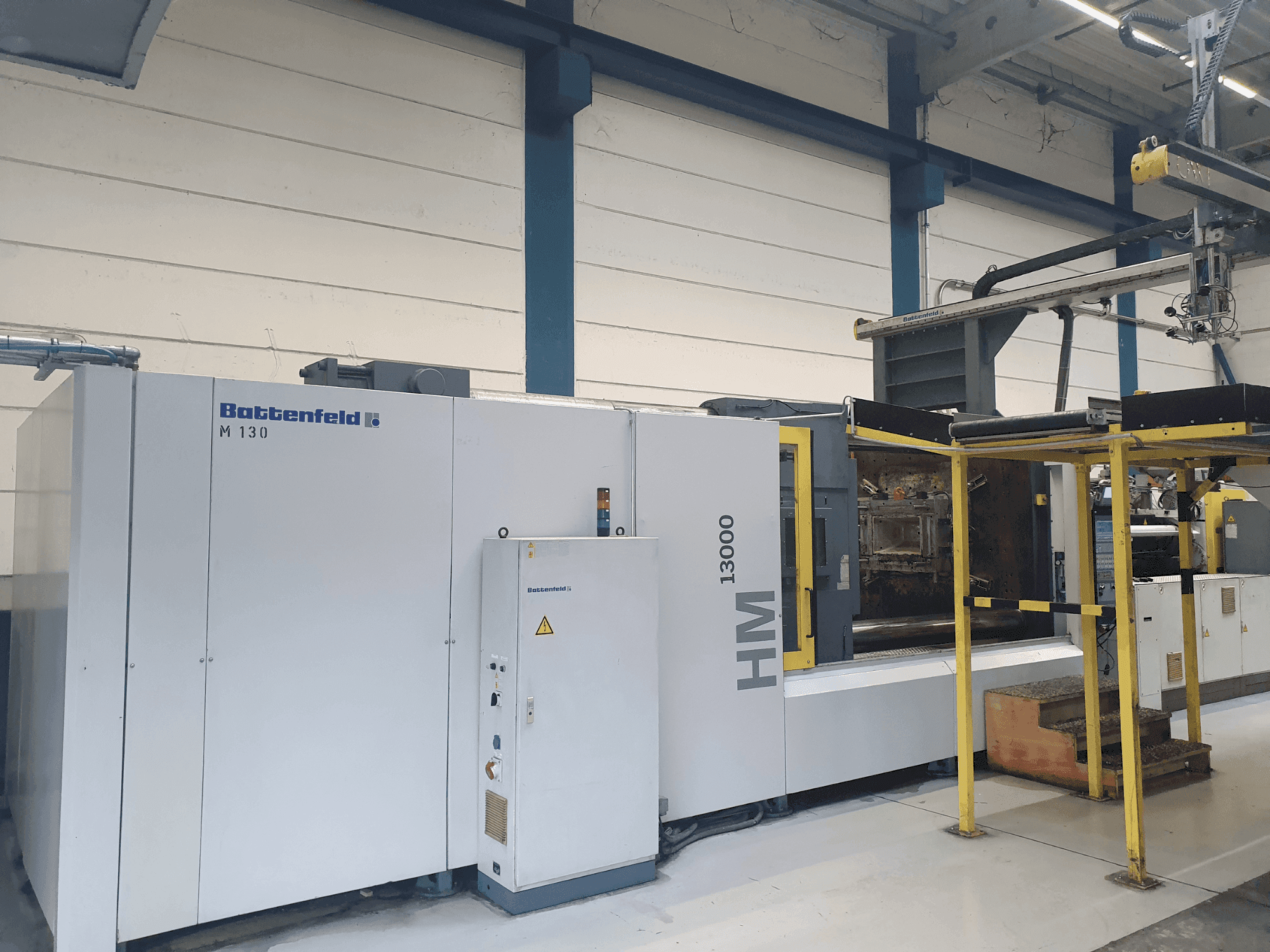

This Battenfeld HM 13000/12000 was manufactured in 2001. A robust injection moulding machine featuring a Unilog 9000C control system, clamping force of 13,000 kN, and a screw diameter of 120 mm. It supports a maximum opening travel of 1650 mm and a total installed power of 257.9 kW. Ideal for large-scale production, the Battenfeld HM 13000/12000 machine we have for sale represents a significant opportunity. Contact us for more information.

Overview

brand: Battenfeld
year: 2001
MODEL: HM 13000/12000
production hours: 84131
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld HM 13000/12000

Control Unit

Model: 9000C

Injection Unit

Screw diameter: 120 mm
Shot weight: 6,175 (PS), 4,816 (PP)
Stroke volume: 6782 CMM CM³
Injection pressure: 1765 bar

Clamping unit

Clamping force: 13000 kn
Opening stroke: 1650 mm
Distance between bars: Horizontal - 1600 mm; Vertical - 1200 mm
Mould height min: 500 mm
Mould height max: 1200 mm
Ejector stroke: 600 mm

Additional Equipment

- Handling equipment (excluding conveyor belts)
- weight clamping side 82500 kg / weight Injection side 18500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Plate distance mm: 2850
- - Panel (w x h): 2200 x 1880 mm
- - Max. Nozzle immersion depth mm: 100
- - Core pulls piece: 2
- - Total install. Power : 257. 9 kw
- - Heating capacity : 80. 9 kw
- - Motor power (hydr. ): kw 137
- - Closing side centring ring: 250mm
- - Centring ring spray side: 250 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

dimensions.pdf
