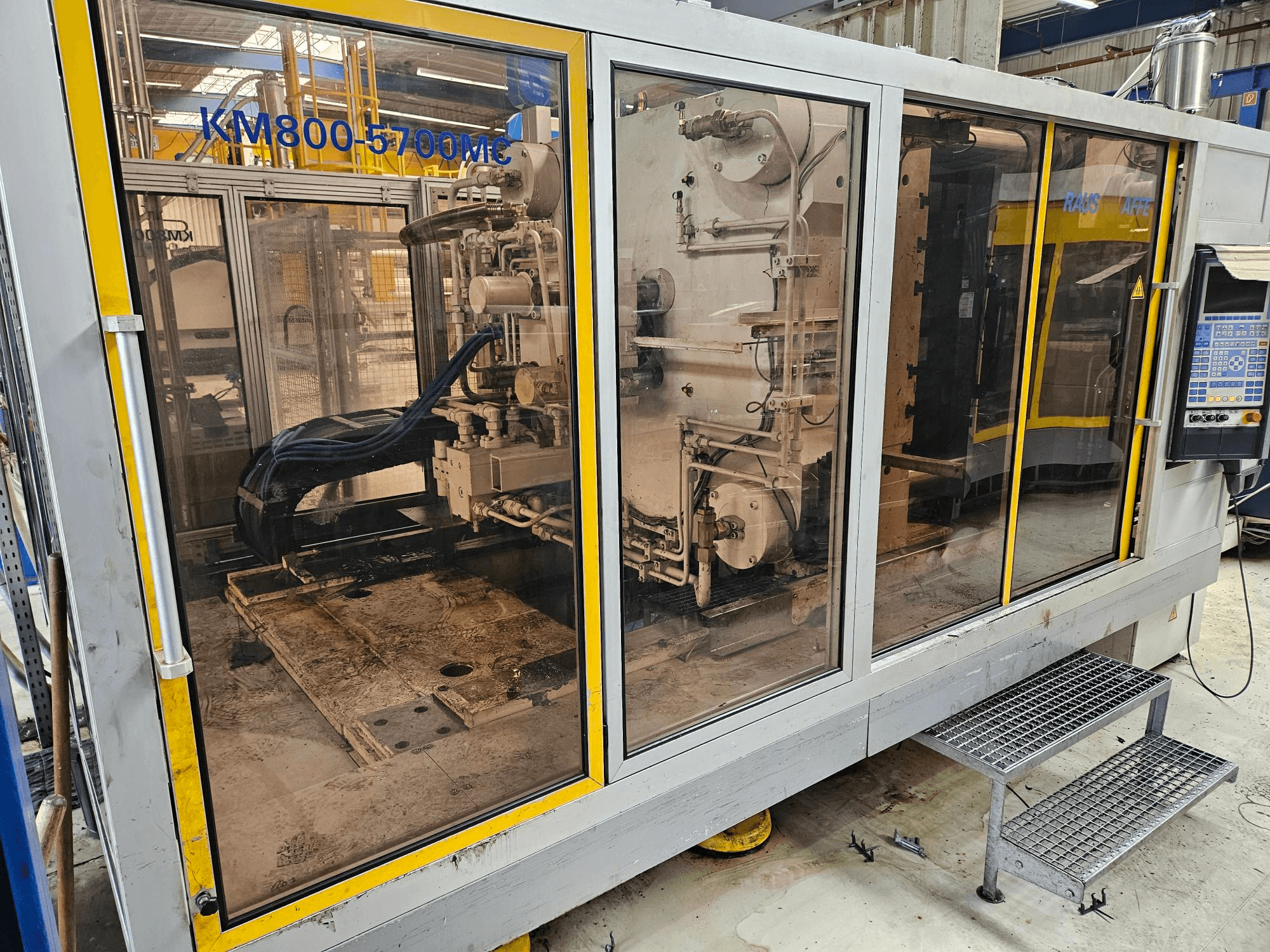

Hydraulic injection moulding machine manufactured in 1999. This Krauss Maffei KM800-5700 MC features a clamping force of 8000 kN and an injection unit size of 5700. It has a maximum mould height of 1,100 mm and an opening stroke of 1,400 mm. If you are looking to get high-quality moulding capabilities, consider the Krauss Maffei KM800-5700 MC machine we have for sale. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 1999
- MODEL: KM800-5700 MC
- production hours: 82539
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Krauss Maffei KM800-5700 MC
Technical Specification
- Clamping Force: 8000 kN
- Screw Diameter: 105 mm
Additional Information
Clamping Force: 8000 kN
Injection Unit Size: 5700
Screw Diameter: 105 mm
Number of Hydraulic Core Pulls: 4
Air Valve: 1 (AS)
Operating Hours: Approx. 82,540 h
Mould Height (Min.): 600 mm
Mould Height (Max.): 1,100 mm
Opening Stroke: 1,400 mm
Platen Dimensions: 1,300 × 1,300 mm
Tie Bar Distance (Horizontal): 1,120 mm
Tie Bar Distance (Vertical): 1,000 mm
Centering Ring Diameter: 250 mm
Water Circuits: 8 per Platen
Service History: Inspected and Pump Connections Sealed by Krauss Maffei in 2025
Machine Condition: Operational
Conveyor Belt: optional
Handling System: optional
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
