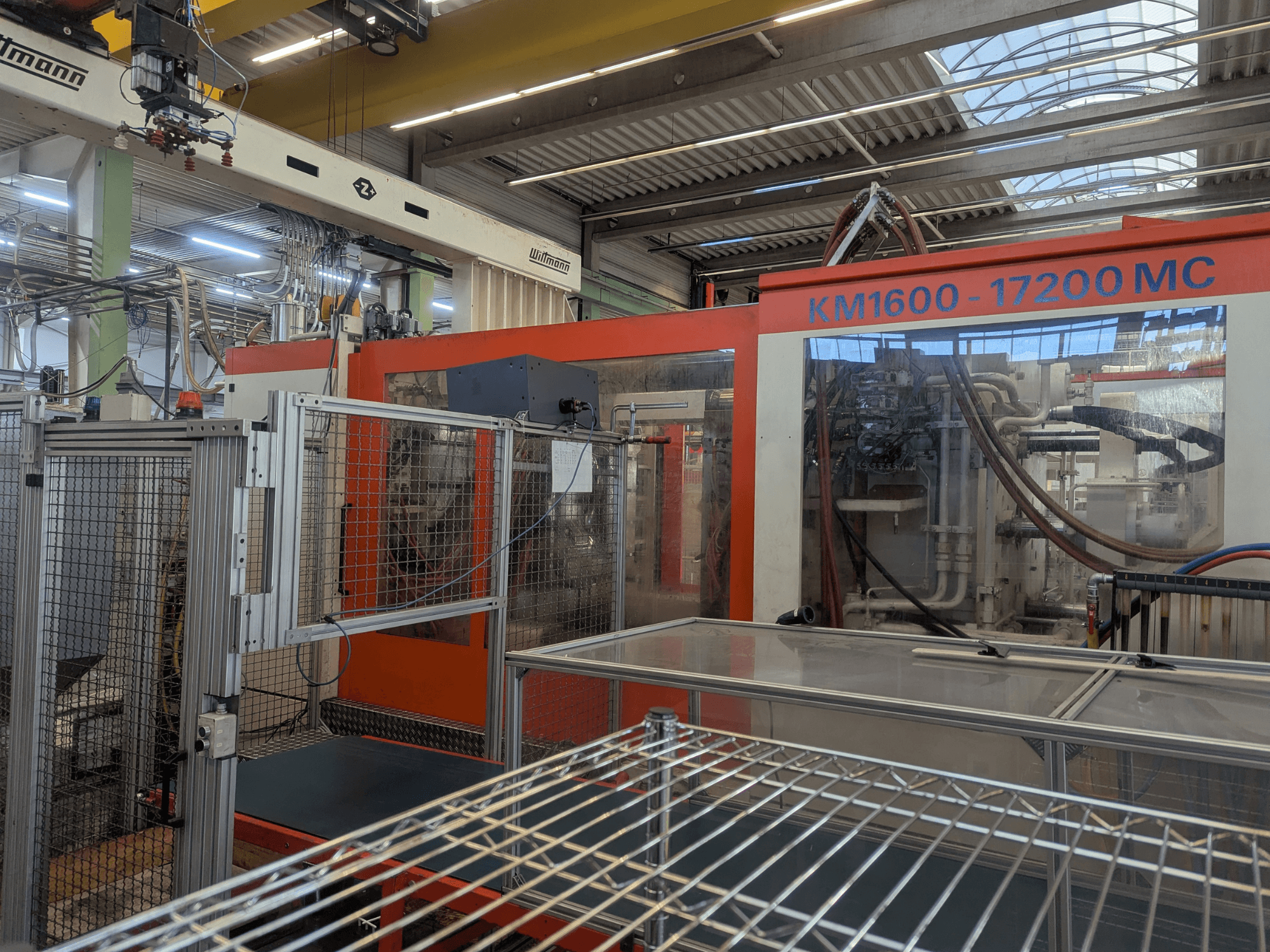

This 3-axis Krauss Maffei 1600-17200MC hydraulic injection moulding machine was manufactured in 2001. It features a clamping force of 16,000 kN and a screw diameter of 125 mm. The machine has a maximum shot weight of 7450 g and a platen size of 2600 x 2110 mm. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei 1600-17200MC machine we have for sale. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 2001
- MODEL: 1600-17200MC
- production hours: 4517
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- Available from: 15/01/2027
Technical Information - Krauss Maffei 1600-17200MC
Technical Specification
- Clamping Force: 16000 kN
- Max. Shot Weight: 7450 g
- Screw Diameter: 125 mm
Additional Information
Injection unit: 17200
Distance between tie bars (h × v): 1600 × 1250 mm
Platen size (h × v): 2600 × 2110 mm
Clear distance (x × y): 1800 × 1400 mm
Max. mold opening stroke: 2,500 mm
Mold installation height (min–max): 900–1,600 mm
Opening width: 3,400 mm
Mold opening force: 1,108 kN
Moving platen force: Opening 177 kN / Closing 153 kN
Ejector stroke: 300 mm
Ejector force (forward/backward): 415 / 177 kN
Operating voltage: 400 V / 50 Hz
Motor current: 446 A
Heating current: 164 A
Total pump operating hours: 73,761 h
Additional equipment
Spare cylinder/screw set (1x)
Internal cooling system
Core pullers (2x)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
