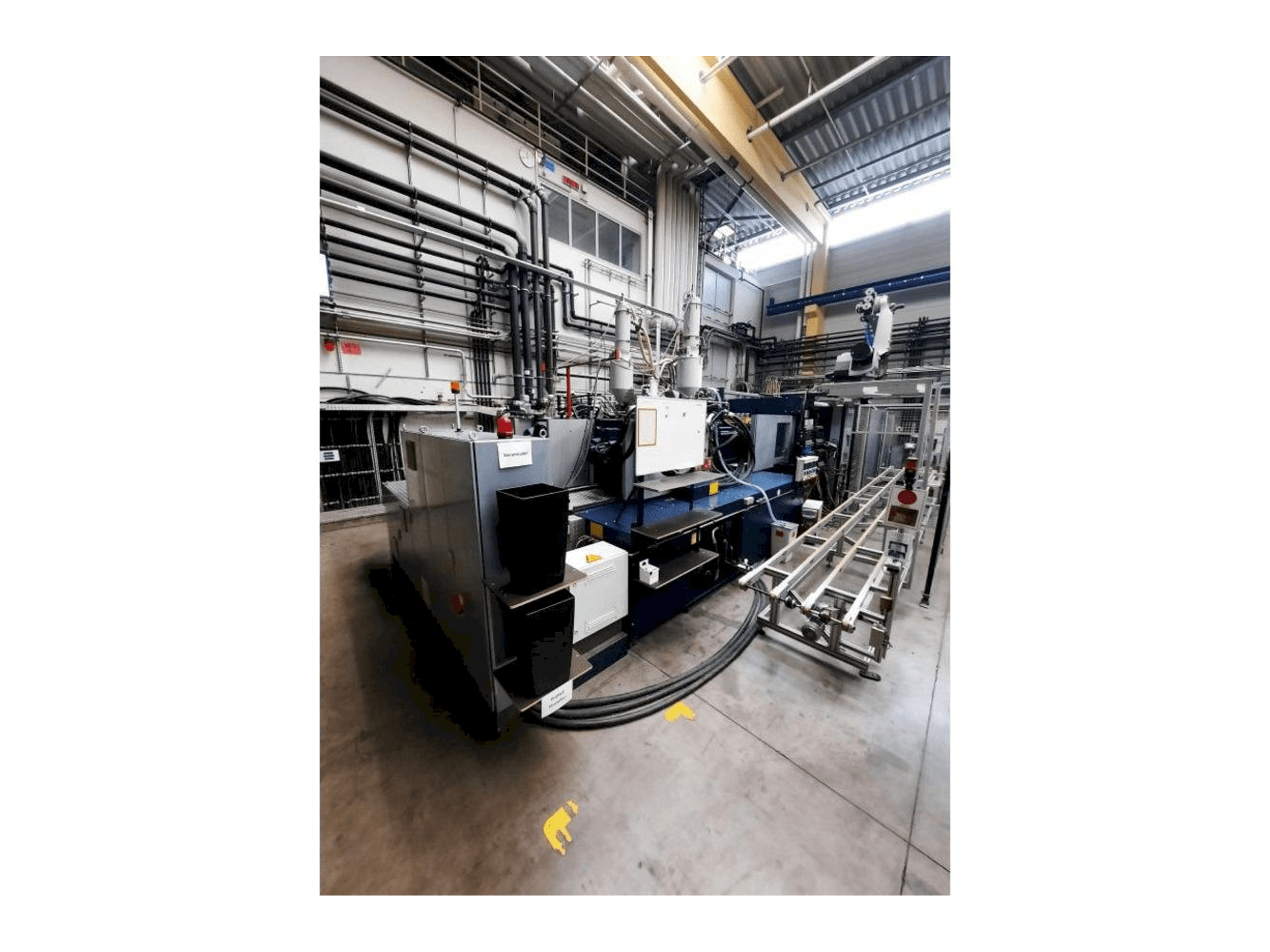

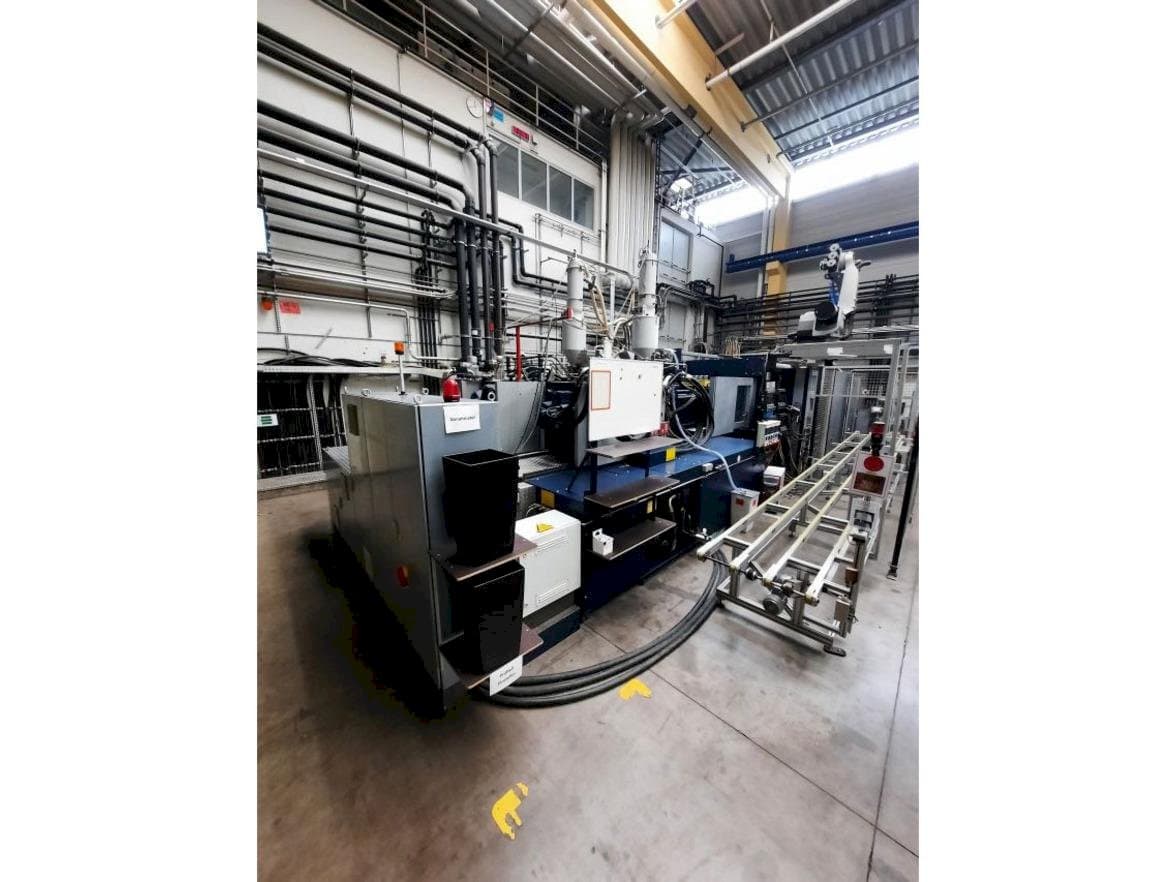

Front view of Battenfeld HM13000/9200/7700  machine

Battenfeld HM 13000/9200/7700

Battenfeld - HM 13000/9200/7700

2004

18,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Battenfeld HM 13000/9200/7700 Injection moulding machine was made in 2004 in Germany and has 67871 hours. The machine has a clamping force of 13000 kN and a screw diameter of 120 mm.

Overview

  • brand: Battenfeld
  • year: 2004
  • MODEL: HM 13000/9200/7700
  • production hours: 67871
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Injection Moulding Machines
  • availability: Immediately
  • GINDUMAC ID: DE-INJ-BAT-2004-00001

Technical Information

General Data

  • Measurements width: 7375 mm
  • Measurements depth: 3010 mm
  • Measurements height: 2535 mm
  • Machine weight: 82500 kg

Injection Unit

  • Screw diameter: 120 mm

Clamping unit

  • Clamping force: 13000 kN
  • Opening stroke: 2200 mm
  • Max open daylight: 4000 mm
  • Distance between bars: 1600 mm
  • Mould height min: 1000 mm
  • Mould height max: 1800 mm
  • Size of mold platens: 1120x1120 mm
  • Ejector stroke: 350 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Unit a: maximum injection speed: 1142 ccm/s maximum pressure : 1633 bar
      • - Unit b: maximum injection speed: 793 ccm/s maximum pressure: 1960 bar
    • Qualitative Machine Benefits:
      • - 2 injection units
      • - Complete valve gate cylinder sealed -e motor pump 1 overhauled -preload valve pump 2 replaced -e motor pump 3 overhauled
      • - Working filter 1+2 renewed
      • - Hoses replaced
      • - Needle pack reconditioned
      • - Preload valve pump 4 replaced
      • - All pumps calibrated by battenfeld technician 82413 hrs
      • - Working filter 1+2 renewed
      • - Hydraulic hoses replaced at 84428 hrs

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
