Baykal - BPL-H 2006 HPR 260XD
Do you have further questions? Contact us.
+34 679 019 350

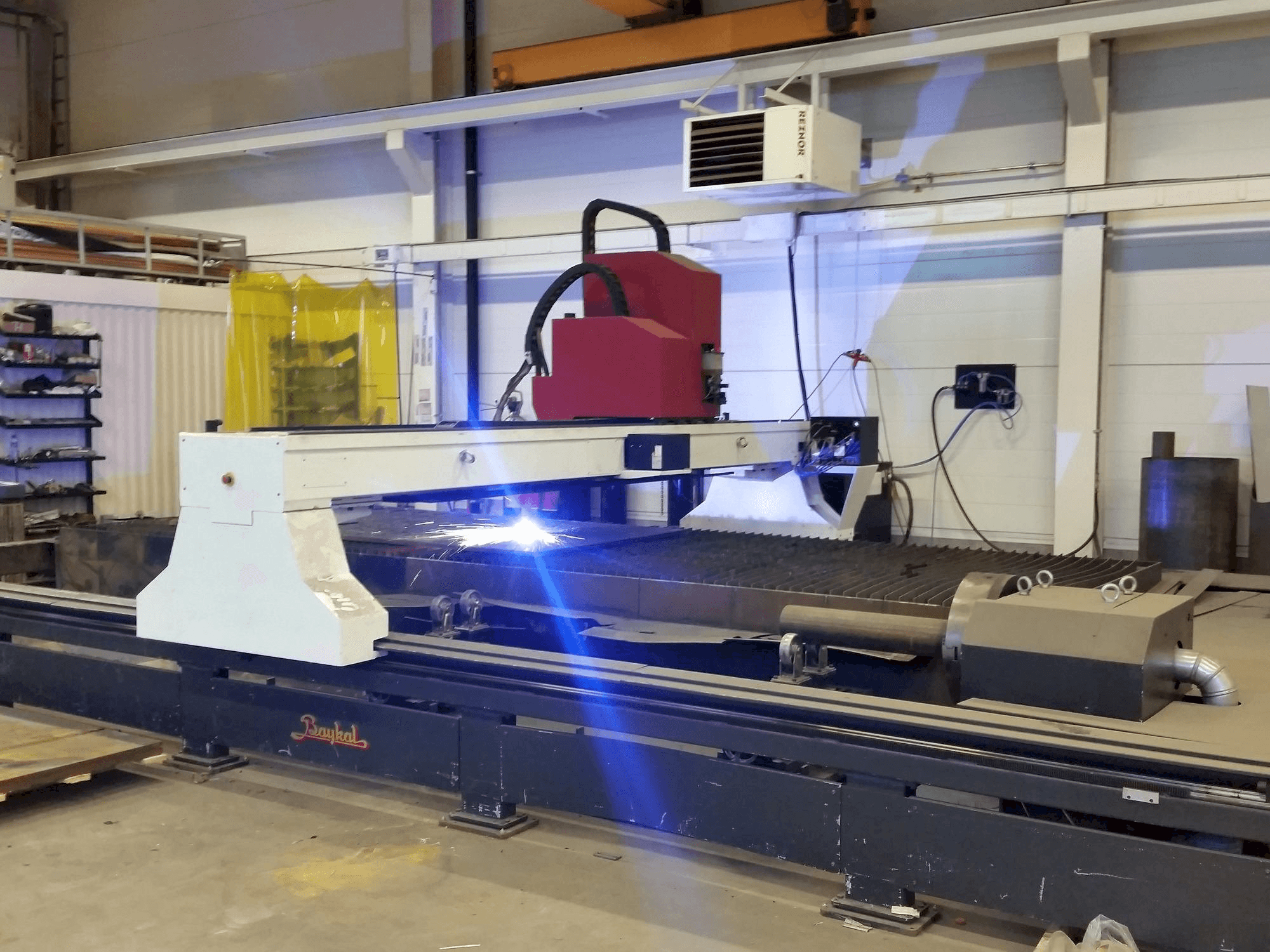

This Baykal BPL-H 2006 HPR 260XD Plasma Cutting Machine was manufactured in the year 2015. It is equipped with a Technos PC12 control unit. The machine has a positioning speed of Up to 20 000 mm/min.
- brand: Baykal
- year: 2015
- MODEL: BPL-H 2006 HPR 260XD
- application type: Plasma cutting
- Location: Norway
- machine type: Plasma Cutting Machine
- availability: Sold
- control unit brand: Technos
- GINDUMAC ID: NO-PLA-BAY-2015-00001
- Brand: Technos
- Model: PC12
- Outer length: 6400 mm
- Outer width: 2200 mm
- Height adjustment: 750 mm
- Main electronic connection: 400 V ± 10%/ 50Hz - 60Hz ±2%.
- Power consumption: 200 kVa
- Technical Machine Benefits:
- - Pipe cutting function Ø50-600mm
- - Bevel head
- - 6-station drill and thread unit, drill max Ø20mm, thread max Ø16mm
- - Stationary control panel instead of panel on cutting boom, positioned on the left side of the machine when viewed from the front.
- - Cutting width : 2200mm
- - Cutting length : 6400mm
- - Double-sided synchronized servo drive on y axis = longitudinal movement of cutting head
- - Single synchronized servo drive on x axis = transverse movement of cutting head
- - Ac servo driven motors (brushless)
- - Fast positioning speed 20 mt/min with ± 0. 05 mm positioning accuracy
- Qualitative Machine Benefits:
- - The cutting table is independently constructed from the cross beam and machine frame, to achieve positioning accuracy under any weight on the table.
- - The cutting head has sensors for automatic adjustment of the cutting head cutting height.
- - Collision protection on the plasma cutting head, the machine comes with electrical equipment for: 400v
- - Sectioned cutting table integrated with automatic extraction system, extraction hatches that open on the work surface for better extraction, plasma cutting head : including cable pull chain
- - "high-definition type plasma supply unit, programming software for nesting/optimization of parts via pc, regulator : single output
- - Manual/automatic gas console for selection of plasma and additive gases, high capacity air filter unit for dust and fume collection (optional), hose package : hose package for cutting source, gas supply : hose package for gas supply
- - One set of consumables (nozzles, electrode, nozzle holder, manifolds etc), positioning speed : up to 20 000 mm/min
- - Working temperature : between -10° c to +30° c, exhaust system : cnc operated with pneumatic hatches, motorsy axes : left and right side two brushless ac servomotors, traverse y axes : double-sided via rack and pinion drive, motor x axis : brushless ac servo motor, transverse x axis : via rack and pinion and gear drive
- - Operation y axis : double-sided, two-way longitudinal operation, operation x axis : double-sided transverse operation, guide y axis : linear guides, guide x axis : linear guide, guide x axis : linear guide
- - Plasma source : hypertherm hydefinition plasma hpr260xd with, auto gas console, control : technos pc12 ( made in the usa ) windows based, software package : lantek nesting software for pc ( lantek expert ii )
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
